Gate, Door, Garage, Pump, Motor, Generator, Warehouse, Vila, Shop

Remote Access Relay Control by Phone







1.Remote gate opener for door, access control,2.Automatic Door GSM gate opener 3.GSM network free Gate Opener

Gate opener remote control,Gate automation, Gates, Gate Operators, Garage Door opener, Automatic Door opener,Doors, Gate remote control, Locks, Motors Ac

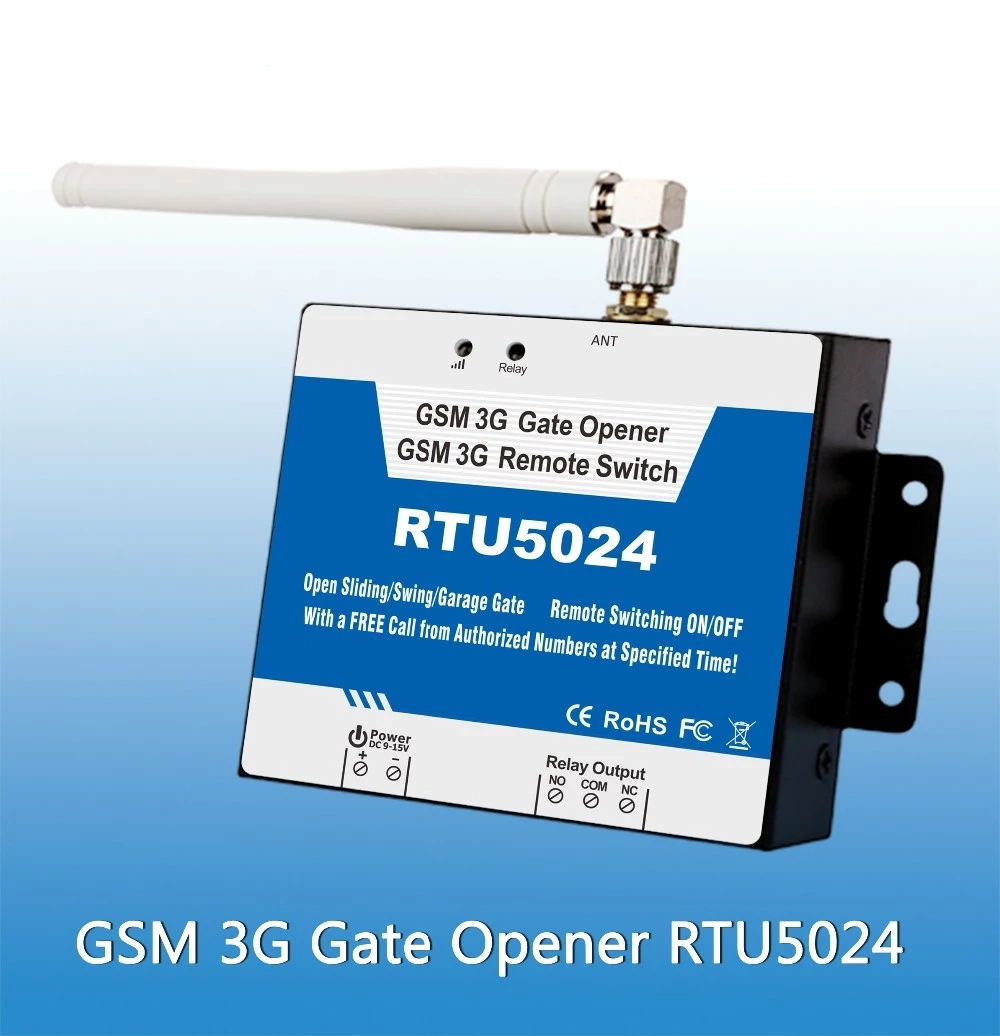

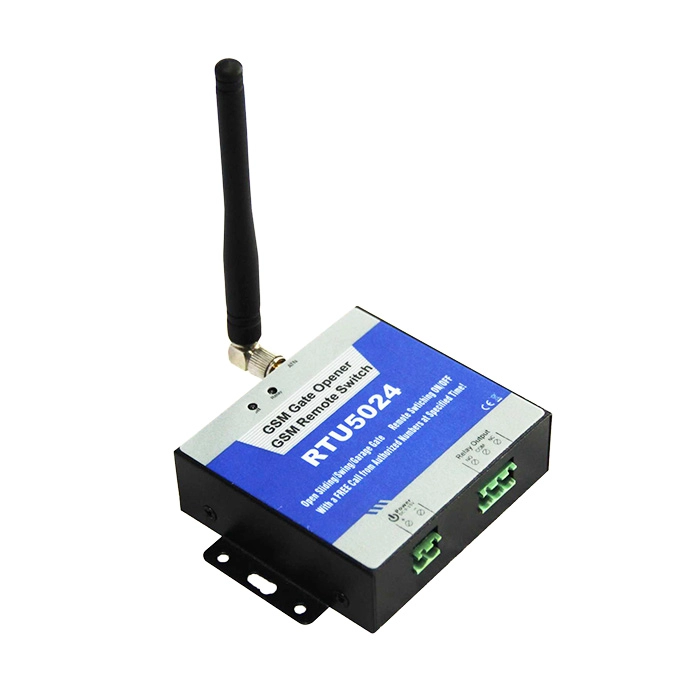

New RTU5024,CE/FCC/Rohs Approved,phone operated gate opener,relay switch ON OFF by Phone call

 PC software programming,historical data download!

The famous RTU5015 GSM Gate Opener new upgrade version!





Authorized 200 users open gate at the specified time!

 GSM Gate, Barrier, Shutter, Garage Door and Door opener

Open gate or garage door with a FREE call from your mobile phone!

Remote switching machines ON/OFF with a FREE call from your mobile phone!

Remote monitoring the Gate, Barrier, Shutter, Garage Door OPEN/Close Status!









>>>>What is RTU5024 GSM Remote Gate/Door Opener used for?

Using a mobile phone you can open the door/turn on the light /machine from very far away place, even from another city!

It is really convenient to arrive in front of your house when the gate is already open, without having to wait in the middle of the road.



You don't worry wether the opener can turn on the machine, because It adopts the relay power at  5A@250VAC AND 5A@30VDC from the most reliable relay company OMRON ! It has much stronger driver power than most other gate opener with only 500mA@24VDC.





>>>>What is the selling price in our country market?

Type "gsm gate opener" in Google or Yahoo, you will see the price in Ebay, Amazon, or other local market. Alibaba forbid suppliers add any non-alibaba link and mail address, so can you  find it out? As far as we know, the price is 1.5 times~12 times than ours. Please find out the profit margin in your own country. If you want to be our exclusibe agency, you need to fullfill some requirements.







>>>>What is priciple of RTU5024 GSM Remote Gate/Door Opener?

 RTU5024 is based on the 3G/GPRS/GSM cellular network , The remote control system works with Caller ID and when an authorize number calls, the system will recognize the caller and open the automatic door or electric gate opener , but it will not cost money because the gate opener will not really answer the call.





1.    3G Version, can work in the worldwide 3G Networks;

2.    No call charges. the 3G Gate Opener/Relay Switch rejects the call from authorized number then carries out the turn ON/OFF action on the first 'ring';

3.    Multiple applications. (gates, bollards, barriers, garage doors, shutters and access doors or machines);

4.    Secure - Using caller ID for identification, unknown callers are ignored;

5.    Can be operated from anywhere, no distance limit;

6.    Add or remove users by SMS Text command or APP;

7.    No need to provide a remote control or keys for different users;

8.    Up to 200 authorized phone numbers can be configured at the specified time;

9.    One output with relay rating 3A/240VAC for connecting the switch of the door or machines;

10. The relay action will return a SMS confirmation to the owner or authorized call in number, this function is editable by user;

11. The relay close or open time is programmable;

12. Based on 3G network, applied to many applications.

13. Smart phone APP for configuration.



 >>>>  Does it work with any automatic door or gate?

Yes. All electric gates or automatic door have a button that is used to open them. RTU5024 has a relay whose contact has to be connected to the opening button. When you make a call it equals pressing the opening button.



>>>>  How to use it in my country?
You need to have an active SIM inside it, and this may have a monthly fee.You need to check with your local SIM card operators for details. We have already expanded the market in US/Canada/Australia/Netherland/India, etc.



>>>>How to use RTU5024 GPRS/GSM door opener?

 >>>>>1. How to use the fuction of  remote opening gate about RTU5024 GPRS/GSM gate opener?

1. Put a Mobile SIM Card into the Device.

2. Setting by PC software.(WindowsXP, Win7, Win8)

3.Call the RTU5024 by Authorized phone number,  Relay Switch ON/OFF to remote control the Gate/Door or other Machine OPEN/CLOSE!

4. Download the access historical data by PC software via USB port.







>>>>Is it difficult to install it?

 You need to connect the 2 wires that come out of the box in parallel with the Gate push button.
Connect it to AC power (we supply all countries type, CE/FCC/UL optional), insert SIM and start programming numbers (you can use the PC configrator like the video shows or you can download a free APP).







>>>>>Specifications:



GSM Frequency	Quad-band 850/900/1800/1900MHz
3G Band	WCDMA 900/2100 UMTS 850/1900
Digita Input	NO
Digital Output	1 Relay, 5A@250VAC,5A@30VDC
Siren Output	12VDC/1A
DC Power supply	9~24VDC/2A
Power consumption	12V input Max. 50mA/Average 50mA
SIM Card	Supporting 3V SIM Card
Antenna	50 Ω SMA Antenna interface
Temperature range	-20~+60 °C
Humidity range	Relative humidity 90%
Backup battery	3.7V/900mAH
Exterior dimension	W102mm*D76mm*H27mm
Net Weight	180 g





























































































>>>>>What application does GSM Gate Opener RTU5024 suit ?

>> Remote open/close swing/sliding gates, doors, shutters, garage doors,locks with a free call!

>> Intrusion security alarm,remote ON/OFF motors, lights, pumps,generators,valves and machines.

>>Home and garage owner

>>Business company

>>Hotel

>>Warehouse

>>Parking place

>>Hospital

>>Other place need remote switching ON/OFF applications. eg. Pump, Motor, Valve, or any need NC/NO contact devices.



Similar gsm gate opener, click here:



Cellular Gate Opener 3G - 1000 Users GSM gate opener (Model: RTU5025)





>>  Gsm Gate Opener * 1

>>  Gsm Antenna * 1

>>  Gsm Gate Opener User Manual & PC Software CD x1

>>  AC/DC adaptor x1

>>  Packing size: 17*9.5*4 cm

>>  Gross Weight: 0.3kg



15pcs per CTN, 47*30*25cm, 10KG.
