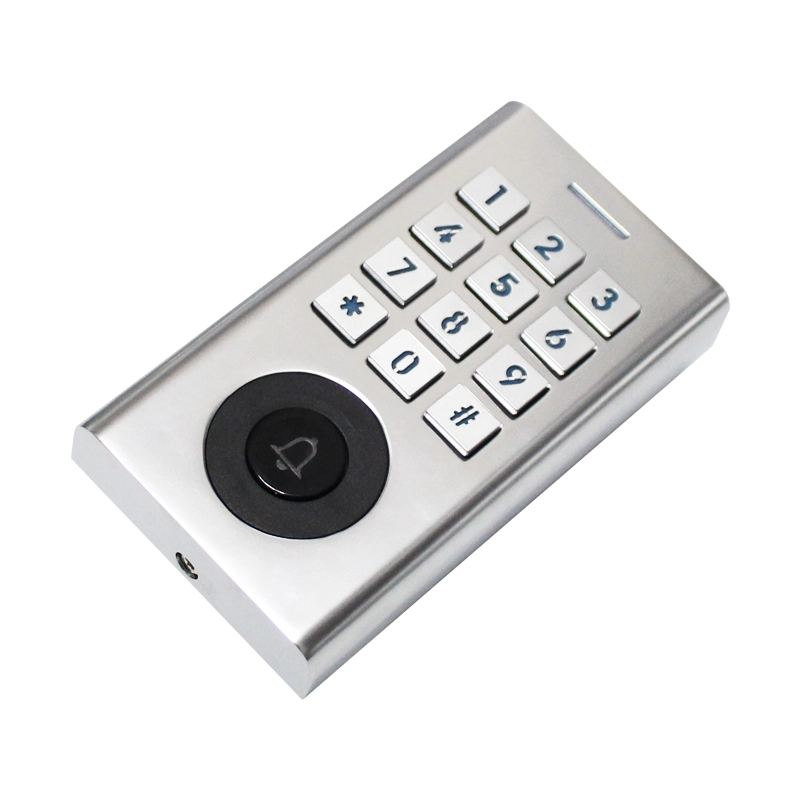

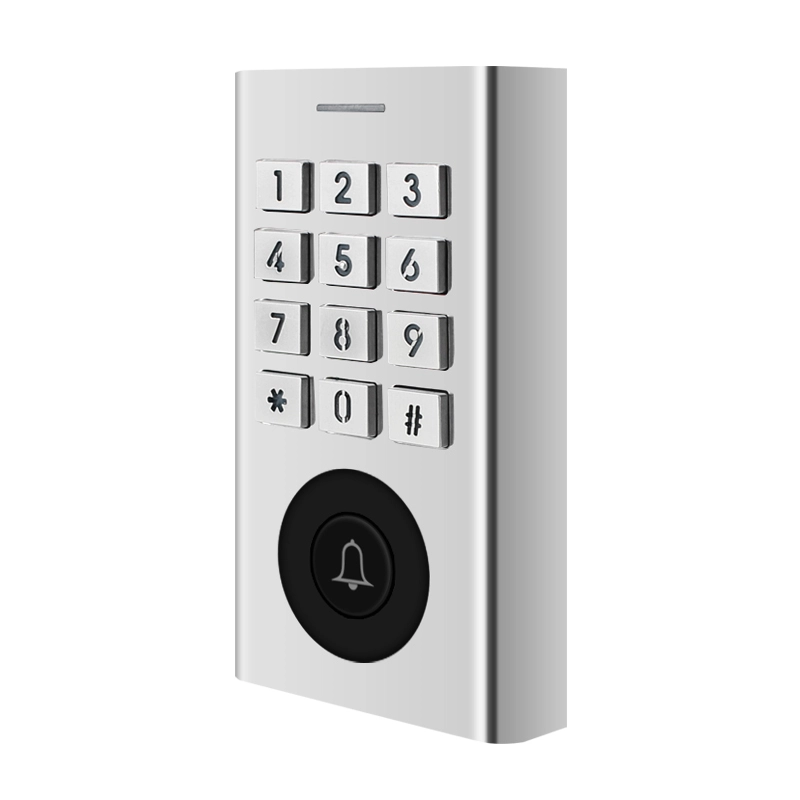

access control keypad

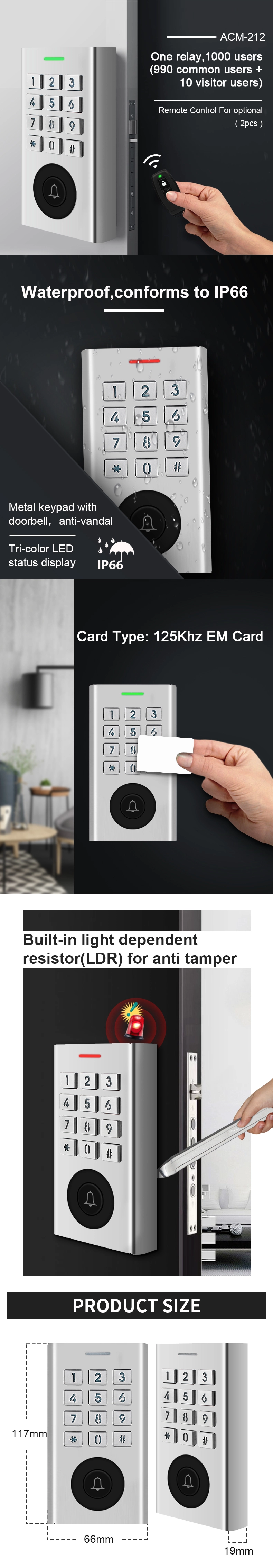

> Metal case, backlit keypad > Waterproof,conforms to IP66
> One relay, 1000 users (990 Normal Users + 10 Visitor Users)

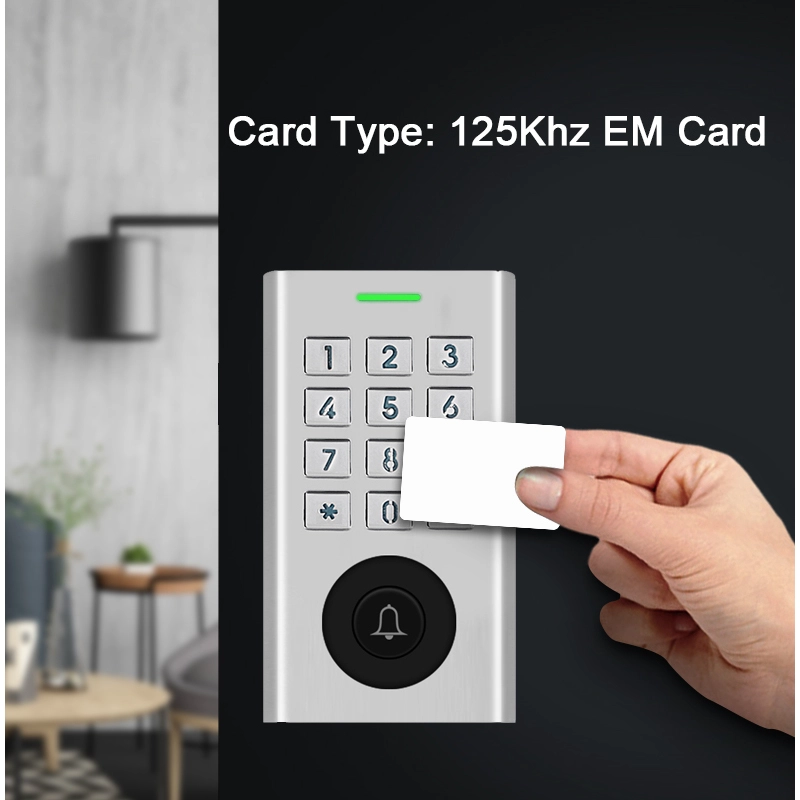

> 3 access modes: Card, PIN, Card + PIN > Card type: 125KHz EM card

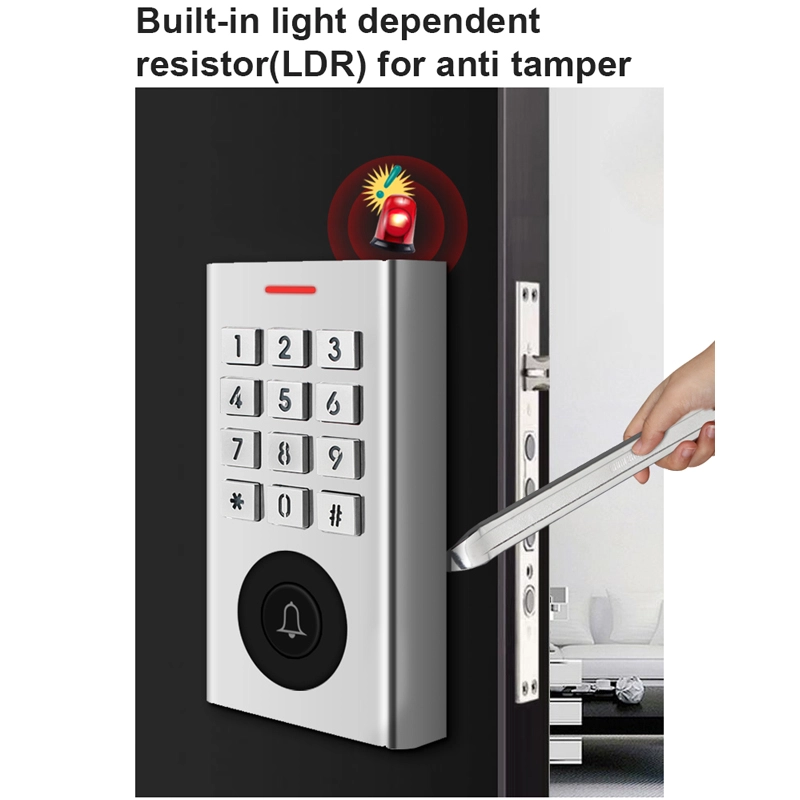

> PIN length: 4~6 digits > Anti-tamper alarm
> With Doorbell for visitors > Remote Control for optional
Parameter
access control keypad
| User Capacity |
1000 Cards/PINS (990 Normal Users + 10 Visitor Users) |
|
Operating Voltage
Idle Current
Active Current
|
9~18V DC
50mA
80mA
|
| Keypad |
12 Key (3*4) |
|
Proximity Card Reader
Radio Technology
Read Range
|
EM
125 KHz Industry Standard Proximity Card
2-6 cm
|
| Wiring Connections |
Relay Output, Exit Button |
|
Relay
Adjustable Relay Output Time
Lock Output Load
|
One (NO, NC, Common)
0-99 Seconds (5 seconds default)
3 Amp Maximum
|
|
Environment
Operating Temperature
Operating Humidity
|
Outdoor
-40°C~ 60°C (-40°F ~ 140°F)
10%RH-90%RH Non-Condensing
|
|
Physical
Surface Finish
Dimensions
Unit Weight
Shipping Weight
|
Zinc-Alloy Enclosure
Powder Coat
600g
700g
|
