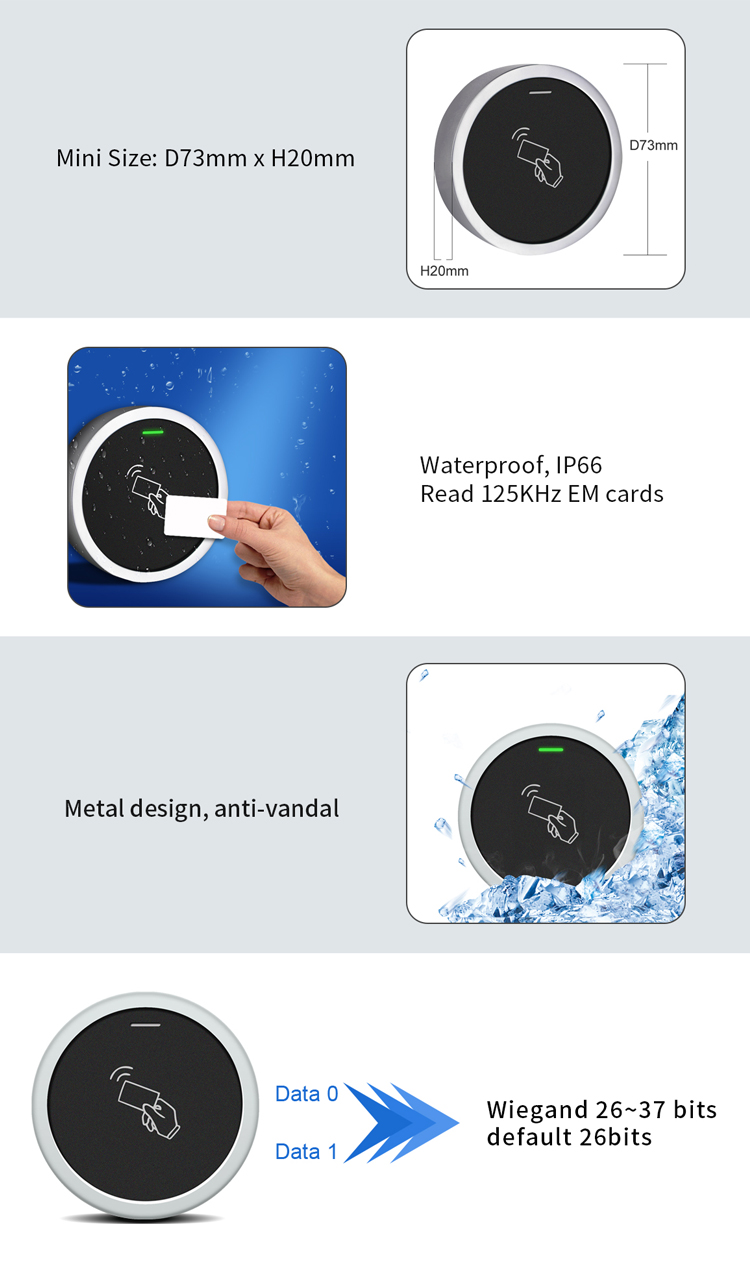

The (EM) reader is a metal case anti-vandal proximity reader.
Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.
Features:
> Metal Case, anti-vandal
> Waterproof, conforms to IP66
> Wiegand 26~37 bits output (default: 26bits)
> Card type: EM card
> Reading range: 3~8cm
> External LED Control & External Buzzer Control
|
Operating Voltage |
9~24V DC |
|
Frequency |
125KHz |
|
Card Type |
EM Card |
|
Reading Distance |
3~8 CM |
|
Output Format |
Wiegand 26 bits |
|
(26~37 bits available upon request) |
|
|
Operating Temperature |
-40℃ ~ 60℃ (-40°F ~ 140°F) |
|
Standby Current |
< 25mA |
|
Operating Humidity |
10%~98% RH |
|
Index of Protection |
IP66 |
|
Dimensions |
Diameter: 73mm, Thickness: 20mm |
