Access Control Manufacturer Wiegand Card Reader RFID 13.56MHz Long Range Reader

  • Brand Name: ACM
  • Model Number: ACM 212C
  • Product Name: Access Control Wiegand Card Reader RFID 13.56MHz Long Reader
  • Power Supply: DC12V±10%
  • Relay: One relay
  • Communication: Weigand
  • Capacity: 1000 - 4000 users
  • Password: Card / PIN / Card+PIN
  • Compatible Cards: 13.56MHZ
  • Keywords: Door access control, Security systems, 125khz Rfid Card Reader
  • Type: Rfid Door Access Control System
Product Description

Access Control Manufacturer Wiegand Card Reader RFID 13.56MHz Long Range Reader

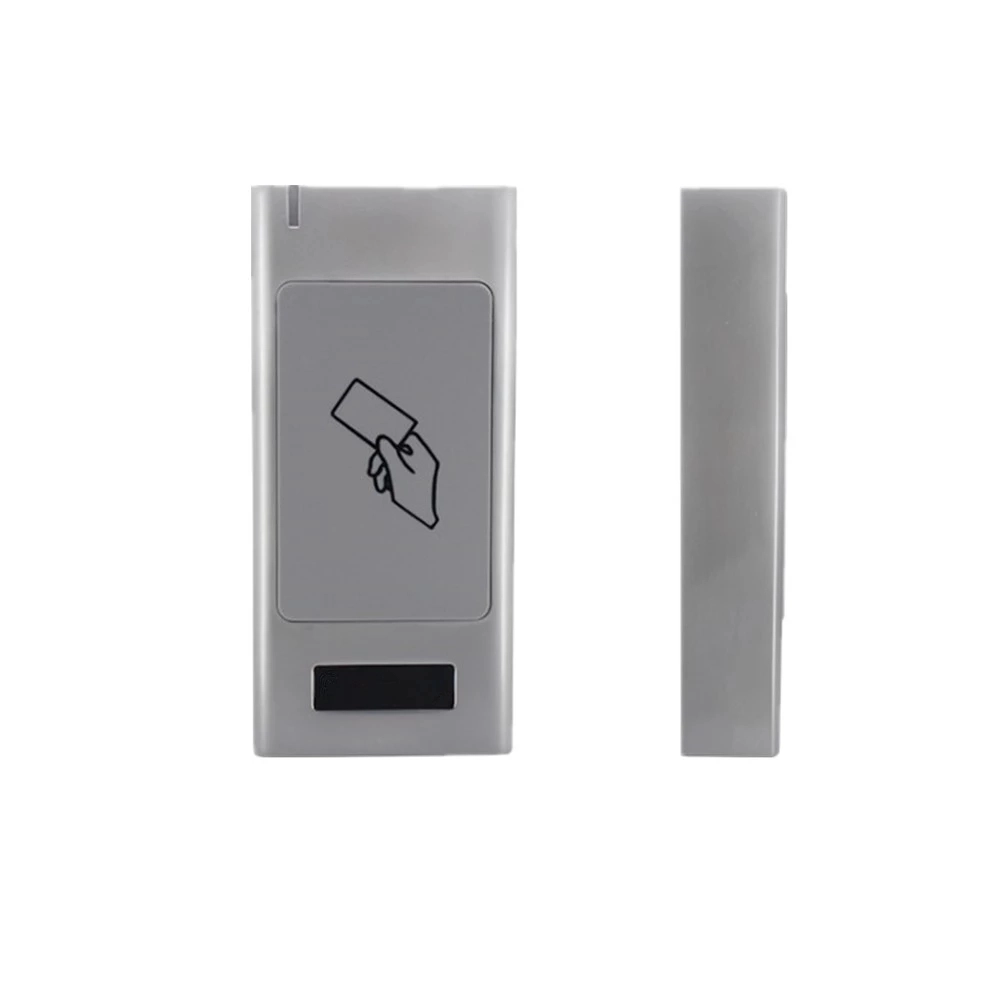

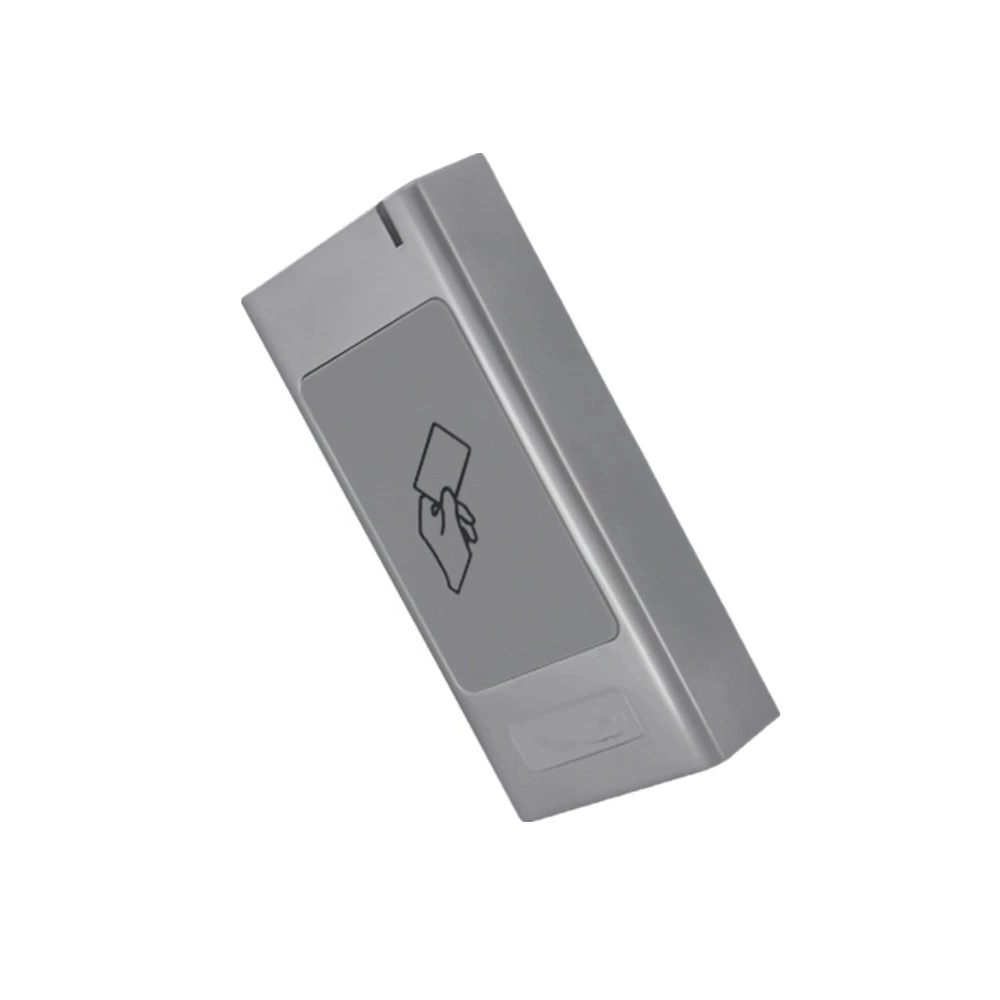

ACM212C metal case anti-vandal Wiegand Output IP66 Proximity Card Reader Access Control, compatible with 125KHz HID, EM & 13.56MHz card.
The reader is fully potted, and can function at extreme temperatures (-40℃~60℃), which allows it is capable to be mounted either
indoor or outdoor.

Product Parameter
Parameter Description
Power Supply:
12VDC + 10%
Frequency:
13.56mhz
Access control Interface
WG26 interface
Size:
102 x 48 x 19mm
Unlock relay:
12VDC/2A
Operating temperature:
-20 - 70°C
Relative humidity:
20%-90% RH
Compatible Cards
13.56mzh card
Card Reading Distance
1.18~2.36in
Electric locking interface
Relay output or input of optional
Open access
1
Advantage

1.completely independent access control, directly through the keyboard to achieve
password, card management and other functions.

2.supports Wiegand 26 output&input, can be used as a card reader.

3.support card, password, card with password three seed certification management.

4.reader sensor with high sensitivity, less than 0.1 seconds.

5.supports a password to open the door, stand-alone card capacity up to 1000, optional 4000.

6.exit button and doorbell input function.

Product Show

ACM212C Metal Standalone Rfid Door Access Control Capacity of Cards 1000 Users with Metal Keypad and LED Indicators
