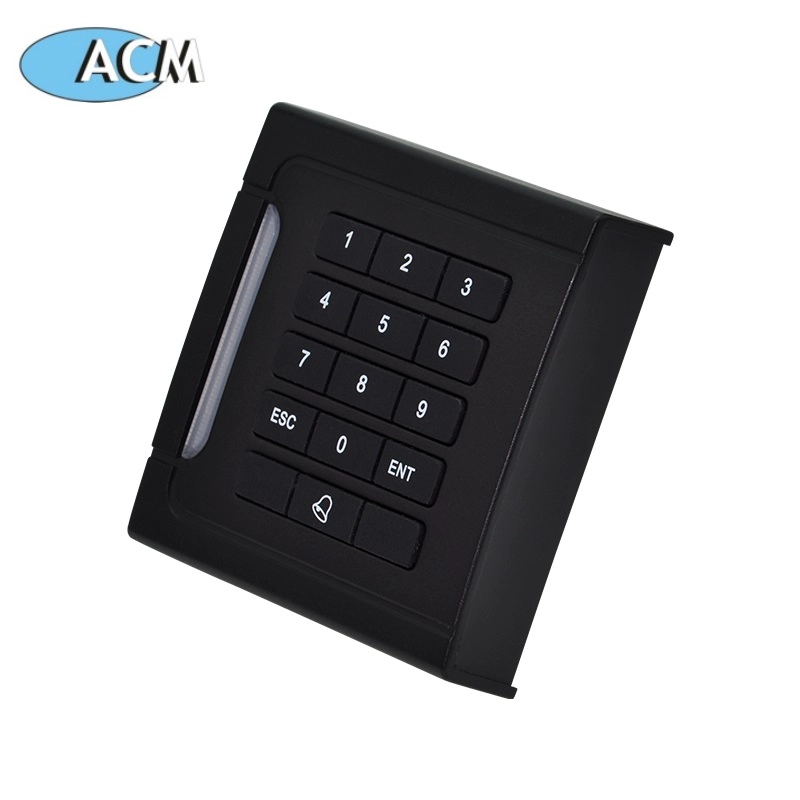

ACM207H High Quality Waterpoof Factory Product Standalone Rfid Access Controller card Reader With Keypad

  • Model Number:ACM207H
  • Product name:Standalone Rfid Access Controller card Reader With Keypad
  • Effective Cards:2000
  • Password:digit PIN code
  • Compatible Cards:125KHz EM standard card
  • Communication:wiegand
  • Size:88 x 88 x 21mm
  • Electric lock output:Max 3A
  • Power Supply:12VDC + 10%
  • Material:metal
  • Suitable for:Woode/ Electric/Metal /File Cabinet Glass /Hotel Fireproof Do
Product Description

Master Card To Add And Delete Card Users Waterproof RFID Reader access control card reader

Access Control Keypad Door Keypad Outdoor Waterproof IP68 Metal Case RFID 125KHz with silicon Keypad Single Door Stand-alone with 2000 Users for Outdoor and Indoor Wiegand 26

Power Supply:
12VDC + 10%
Doorbell button:
Interface to an alarm
Add-in Reader Interface
1 WG26 interface
88 x 88 x 21mm
Unlock relay
Electric lock output:
Max 3A
Alarm output
Max 20A
Output short-circuit protection time
Max 0.1ms
Effective Cards
Ambient temperature
Relative humidity
10%-90% RH
13.56MHz or 125kHz
Reading range
Within 10cm

Character of this access control reader
-1, Anti-theft alarm output for external alarm device
-2, With built-in-anti-theft equipment
-3, Users can reset private passwords
-4, Use keypad to delete lost cards for safety
-5, Strong Zinc Alloy Electroplated anti-vandal case
-6, IP68 Waterproof design for outdoor use
-7, Capacity: 2000 user's cards, 2000 codes
-8, Access ways: Cards, code, card with code
-9 Short-circuit protect: When relay or alarm output short circuit, it will shut up in 0.1ms
-10, Memory protects programmed information in case of power loss
-11, Adjustable Door Relay time 0~99 seconds
-12, can be programmed for use with a Wired doorbell
-13, Adjustable Door Output time, Alarm time,Door Open time
-14, WG output W26 for card and W34 for codes
-15, Strong standalone function device can be used as WG26 reader alone
-16, Lower power: Static current less than 30mA

Detailed Images

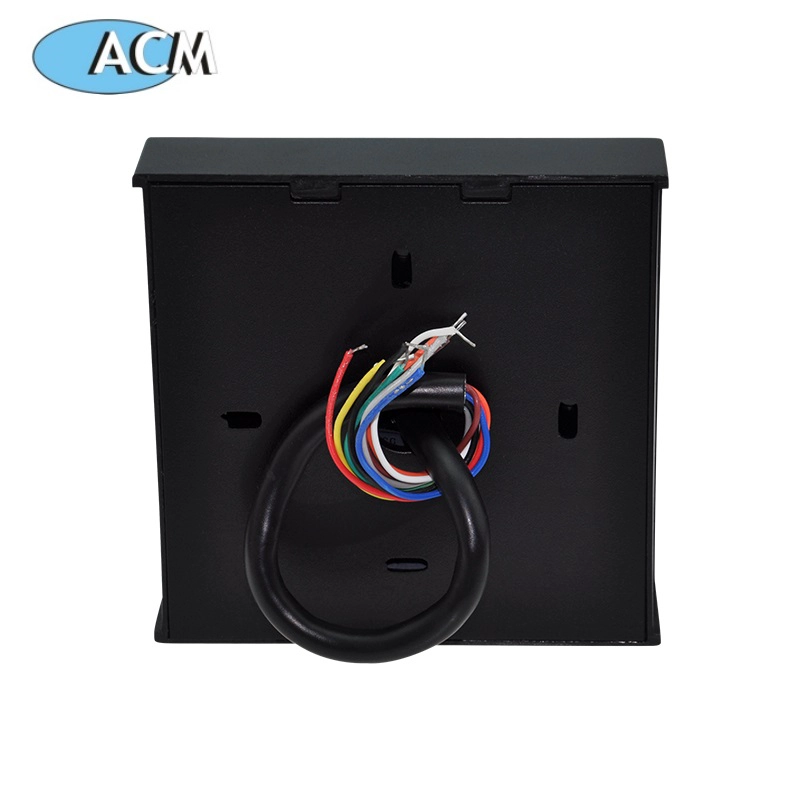

This reader can work work as a stand alone RFID access control reader ,also it can work as a normal wiegand 26 reader which can connect to the control board to control the door . Following is the wire connection of the 2 working mode .

Click here to order and have your FREE SAMPLE in 3 days!!!
We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below, click "Send" now!
We are looking forward to forming successful business relationships with new clients around the world in the future.

Packing & Delivery

Keypad access control packaging: 1unit per box, 50pcs per carton,
Carton size : 45*31*28cm , Gross Weight :25kg.

Shipping Way

With rich international trade experience we know the international shipping very well , We know which express or air/sea line is cheap and safe to your country . We can supply various certificate for you to clean your custom to such as CO , FTA , Form F , Form E ...Ect . We wil provide our professional suggestion for your shipping . EXW , FOB , FCT , CIF , CFR ...trade term are ok for us .
