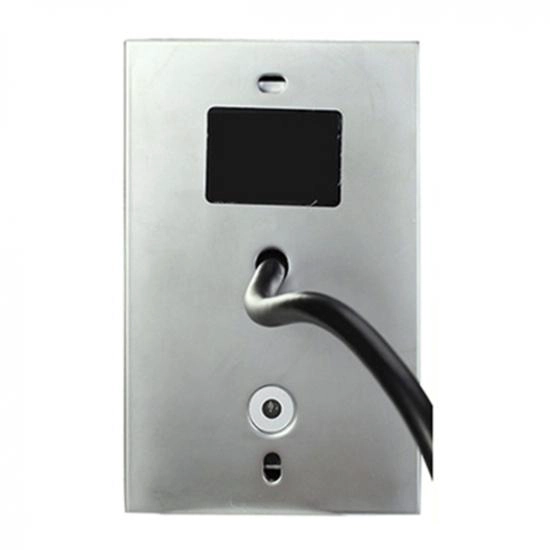

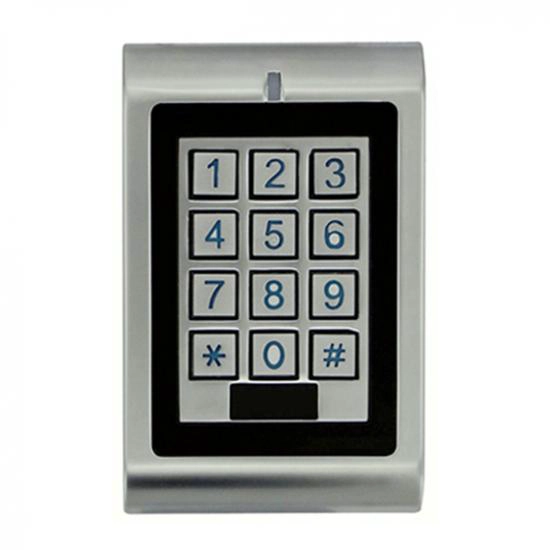

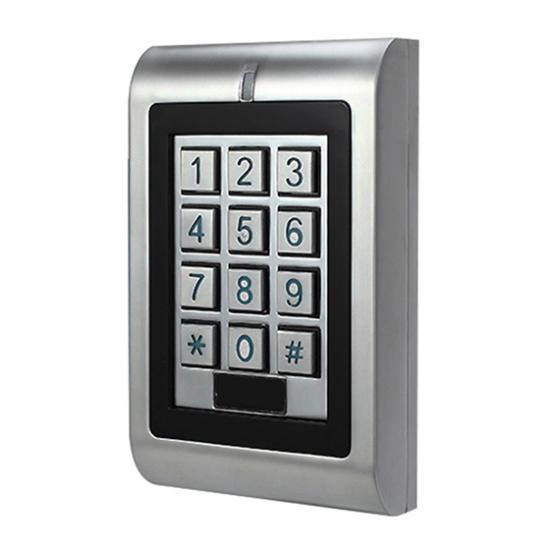

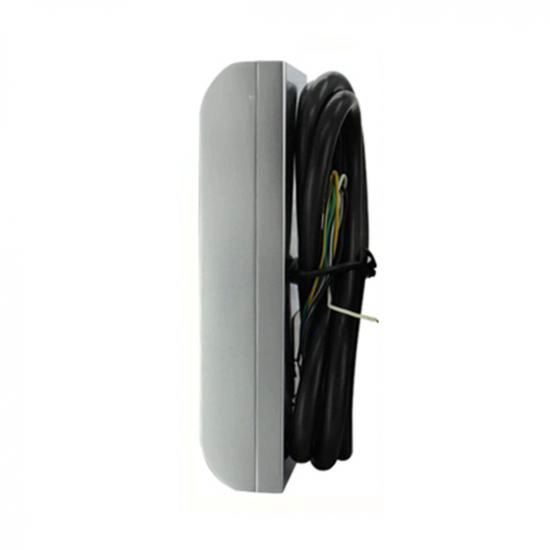

Metal Housing IP68 waterproof RFID card Reader with Dual-relay
Model No.: ACM-241 Dual-relay
> Waterproof conforms to IP66
> Two-Relays Controller, 1100 users
> 3 access modes: Card, PIN, Card + PIN
> Card type: 125KHZ EM card
> PIN length: 4~6 digits
> Wiegand 26 bits input & output
> Facility code programmable
> Latch mode to hold door or gate open
|
User Capacity
|
1100 Card/PIN
|
|
Operating Voltage
|
12-28V AC/DC
|
|
Idle Current
|
55mA
|
|
Active Current
|
80mA
|
|
Keypad
|
12 Key (3*4)
|
|
PIN length
|
4 ~ 6 digits
|
|
Proximity Card Reader
|
EM
|
|
Radio Technology
|
125KHz Industry Standard Proximity Card
|
|
Read Range
|
3 ~ 6 cm
|
|
Wiring Connections
|
Electric lock, exit button,
|
|
DOT, external alarm, Wiegand (in/out)
|
|
Relay
|
ONE (NO, NC, COM)
|
|
Adjustable Relay Output Time
|
1 ~ 99 Seconds (5 seconds default)
|
|
Adjustable Alarm Output Time
|
1 ~3 minutes (1-minute default)
|
|
Lock Output Load
|
3 Amp Maximum
|
|
Alarm Output Load
|
3 Amp Maximum
|
|
Wiegand Interface
|
Wiegand 26 bit input/output
|
|
Environment
|
Meets IP66
|
|
Operating Temperature
|
-30℃ ~ 60℃ (-40°F ~ 140°F)
|
|
Operating Humidity
|
10% ~ 90% Non-Condensing
|
|
Physical
|
Zinc-Alloy Enclosure
|
|
Surface Finish
|
Powder Coat
|
|
Dimensions
|
120L x 76W x 25H (mm)
|
|
Unit Weight
|
600g
|
|
Shipping Weight
|
700g
|
