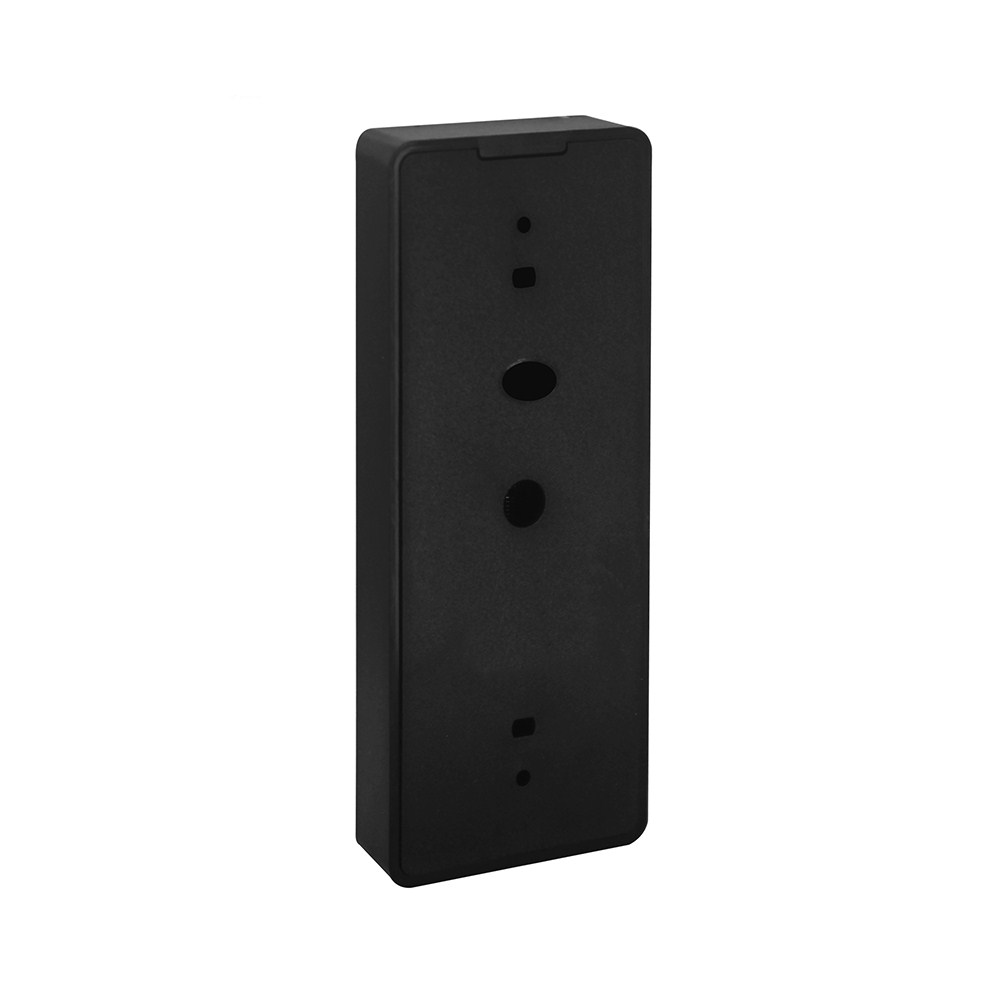

Mifare 13.56Mhz rfid Wireless Keypad Reader

> 433MHz Rolling Code technology
> PIN Length: 1-6 digits
> Card Type: 13.56MHz Mifare card
> Wiegand output: 26 bits or 34 bits
> Communication distance: 30m maximum
> Ultra low power consumption
> Read range: 30m
> Size: 134*55*20(mm)
> Color: Black
> Working current: 15mAh
> Power Consumed: DC12V
> Operating temperature: -20°C~+60°C
> Operating humidity: 10 - 86%

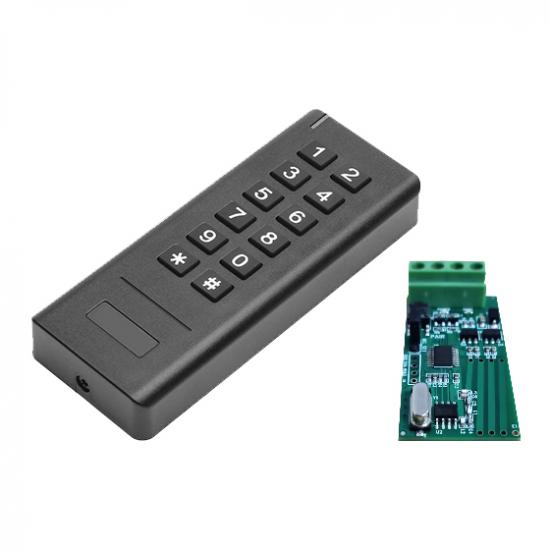

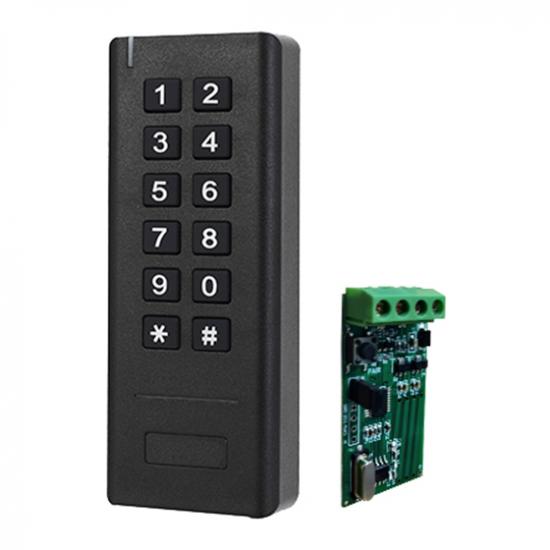

ACM-305 is a Wireless Keypad reads PIN only, including the Wireless Keypad and Receiver, it's 433MHz Rolling code communication between the keypad and receiver, and the receiver can be connected to any 3rd party Wiegand controller.

> 433MHz Rolling Code technology

> PIN Length: 1-6 digits

> Programmable Wiegand output of the Receiver: 26 bits or 34 bits

> Communication distance: 30m maximum

> Ultra-low power consumption

Wireless Keypad	PIN Length	1-6 digits
	Operating Voltage	3 units of AAA batteries
	Idle Current	≤5uA
	Working Current	≤45mA
	Reading Distance	≤3cm
	Communication Frequency	13.56MHz
	Communication Distance	30m Maximum
	Operating Temperature	-20°C～60°C (-4°F～140°F)
	Operating Humidity	0%～86%
	Physical	ABS
	Dimensions	L134 x W55 x H20 (mm)
	Net Weight	100g
Receiver	Operating Voltage	12V DC
	Working Current	≤15mA
	Communication Frequency	433MHz
	Wiegand Output Format	26 bits Or 34 bits (Default is 26 bits)
	Operating Temperature	-20°C～60°C (-4°F～140°F)
	Operating Humidity	0%～86%
	Dimensions	L25 x W50 (mm)
	Net Weight	10g
Wireless Button (Optional Accessory)	Operating Voltage	1unit of 2023 Lithium battery
	Idle Current	≤2uA
	Working Current	≤20mA
	Communication Frequency	433MHz
	Communication Distance	20m Maximum

RFID card reader

Packing & Delivery

Packaging and delivery Details:

Package: One piece in one box, 100 pieces in one carton

Port: Shenzhen or Hong Kong

Lead time: 3~7 days after the order confirmed

We are professional comprehensive security access control products supplier with 20 years experience, we make sure to offer the best solution of access control system solution! So, send your inquiry details in the below.

We are looking forward to forming successful business relationships with new clients around the world in the future.

Shipping Way

We are one of the leading exporter of RFID products in China since 2000 years . With rich international trade experience we know the international shipping very well , We know which express or air/sea line is cheap and safe to your country . We can supply various certificate for you to clean your custom to such as CO , FTA , Form F , Form E ...Ect . We wil provide our professional suggestion for your shipping . EXW , FOB , FCT , CIF , CFR ...trade term are ok for us . We can be your reliable partner for products and shipping .

ACM26X RFID Card Reader

125Khz wiegand 26 /34 Card Reader,
Size:115mm×75.5mm×16.8mm

ACM26G RFID Card Reader

125Khz /13.56Mhz Reader

wiegand 26/34 /RS232

KR600E RFID reader

125KHz Proximity ID/ 13.56Mhz card reader, Wiegand output 26bit

ACM-EMI-S RFID card

125Khz EM Proximity Card

Size 86*54mm

ACM-MF1 RFID Crad

MF1 1K Compatiable Card

ACM-ABS003 RFID Keyfob

125Khz EM/13.56Mhz/UHF Keyfob, Color Optional: Blue, Red,Black,Yellow, Grey,Green
