ACM305-EM Wireless Rfid Card Reader Door Access

ACM305-EM Wireless Rfid Card Reader Door Access

Place of Origin: Guangdong
Brand Name: ACM
Frequency: 125KHz
Interface: Wiegand
Read range: 30m
Size: 134*55*20(mm)
Color: Black
Working current: 15mAh
Power Consumed: DC12V
Operating temperature: -20°C~+60°C
Operating humidity: 10 - 86%

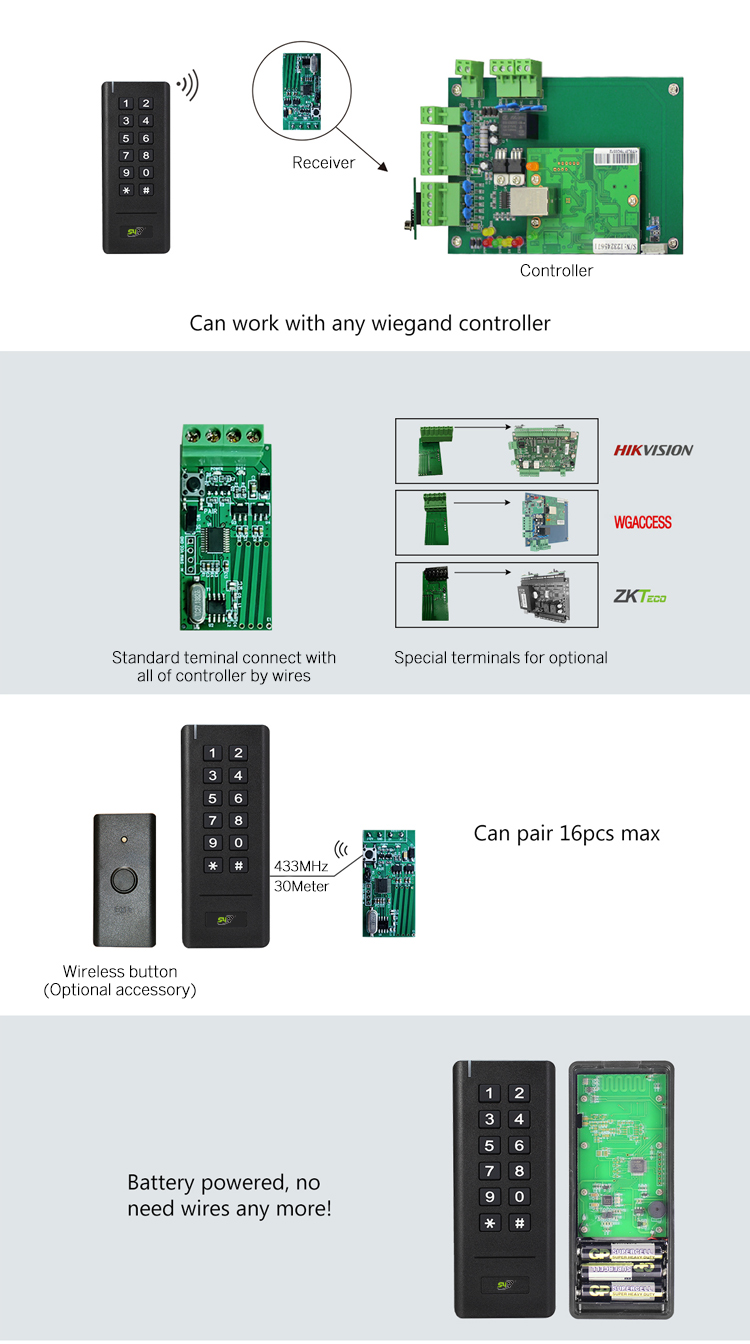

ACM-305 is a Wireless Keypad reads PIN only, including the Wireless Keypad and Receiver, it's 433MHz Rolling code communication between the keypad and receiver, and the receiver can be connected to any 3rd party Wiegand controller.

> 433MHz Rolling Code technology

> PIN Length: 1-6 digits

> Programmable Wiegand output of the Receiver: 26 bits or 34 bits

> Communication distance: 30m maximum

> Ultra-low power consumption

Wireless Keypad	PIN Length	1-6 digits
	Operating Voltage	3 units of AAA batteries
	Idle Current	≤5uA
	Working Current	≤45mA
	Reading Distance	≤3cm
	Communication Frequency	433MHz
	Communication Distance	30m Maximum
	Operating Temperature	-20°C～60°C (-4°F～140°F)
	Operating Humidity	0%～86%
	Physical	ABS
	Dimensions	L134 x W55 x H20 (mm)
	Net Weight	100g
Receiver	Operating Voltage	12V DC
	Working Current	≤15mA
	Communication Frequency	433MHz
	Wiegand Output Format	26 bits Or 34 bits (Default is 26 bits)
	Operating Temperature	-20°C～60°C (-4°F～140°F)
	Operating Humidity	0%～86%
	Dimensions	L25 x W50 (mm)
	Net Weight	10g
Wireless Button (Optional Accessory)	Operating Voltage	1unit of 2023 Lithium battery
	Idle Current	≤2uA
	Working Current	≤20mA
	Communication Frequency	433MHz
	Communication Distance	20m Maximum

RFID card reader

Packing & Delivery

Packaging and delivery Details:

Package: One piece in one box, 100 pieces in one carton

Port: Shenzhen or Hong Kong

Lead time: 3~7 days after the order confirmed
