Product Description
Tuya App Remotely Control Video Door Phone Multi Apartment Smart WiFi Video Intercom Access Control System
Intercom
> 2.4G WiFi connection
> Android and iOS available
> Full uplex voice intercom
> 2MP+wide angle camera and night vision
> Support TF card with unlimited capacity
> Spport motion detection,playback,take picture/video,unlock remotely
Access Control
> Touch key with on relay,1000 user (988 common+2 panic+10visitor)
> PIN Length: 4~6 digits
> EM card,13.56MHZ card optional
> Wiegand 26~44 bits input&output
> Can be used as Wiegand reader with LED&Buzzer
> User data can be tranferred
> 2 devices can be interlocked for 2 doors
Product Description
|
Video Intercom |
Network |
2.4G WiFi connection |
| Pixel |
2.0Mpx (1080P) |
| Visual Angle |
Horizontal 140° wide angle |
| Night Vision |
IR-CUT (Colorful at daytime, black and white at night) |
| Extended Memory |
TF card with unlimited capacity |
| Intercom |
Full duplex voice intercom |
| Other Functions |
Motion detection; Playback; Take picture/video; Unlock remotely |
| Access Control |
User Capacity
Common User
Visitor User
Panic User |
1000
988
10
2 |
| PIN Length |
4~6 digits |
Proximity Card Reader
Radio Technlogy
Read Range |
EM or 13.56MHZ
125KHz/13.56MHz
2~6cm |
| Wiring Connections |

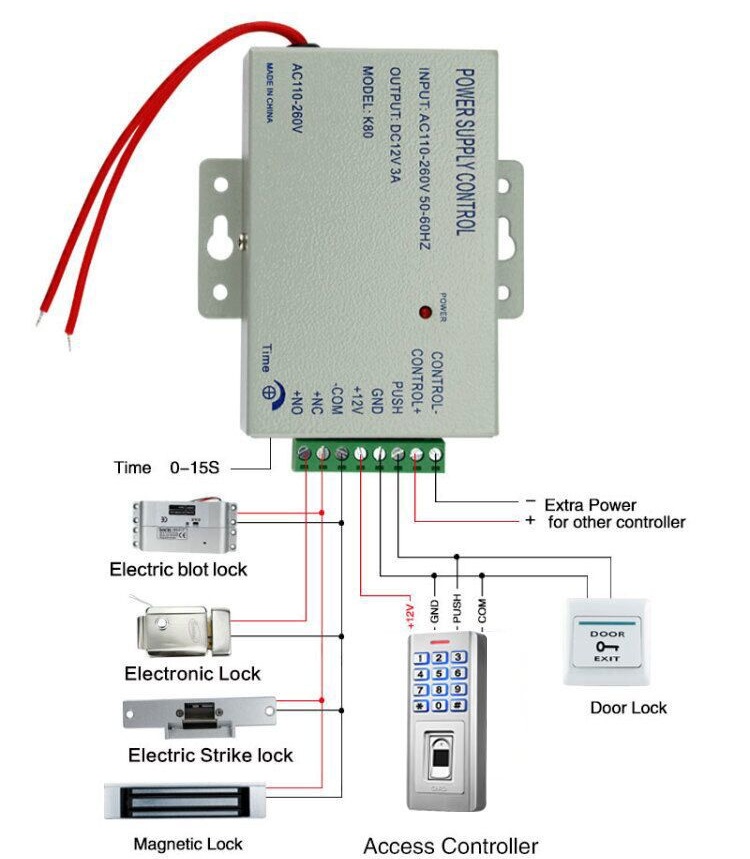

Relay output, exit button, alarm, door contact, Wiegand input/output |
Relay
Adjustable Relay Output Time
Lock Output Load |
One (NO, NC, Common)
0~99 Seconds (5 seconds default)
2 Amp Maximum |
Wiegand Interface
PIN Output |
EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits)
13.56MHZ card version:Wiegand 26~44 bits input & output (Factory default: Wiegand 34bits)
4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits) |
| Electric |
Operating Voltage
Idle Current
Active Current |
DC 12V
≤ 150mA
≤ 250mA |
Environment
Operating Temperature
Operating Humidity |
Indoor
-20°C ~ 60°C (-4°F ~ 140°F)
0%RH ~ 86%RH |
Physical
Color
Dimensions
Unit Weight
Shipping Weight |
Zinc-Alloy
Sliver & Black
L145 x W68 x H25 (mm)
400g
510g |
| |
|

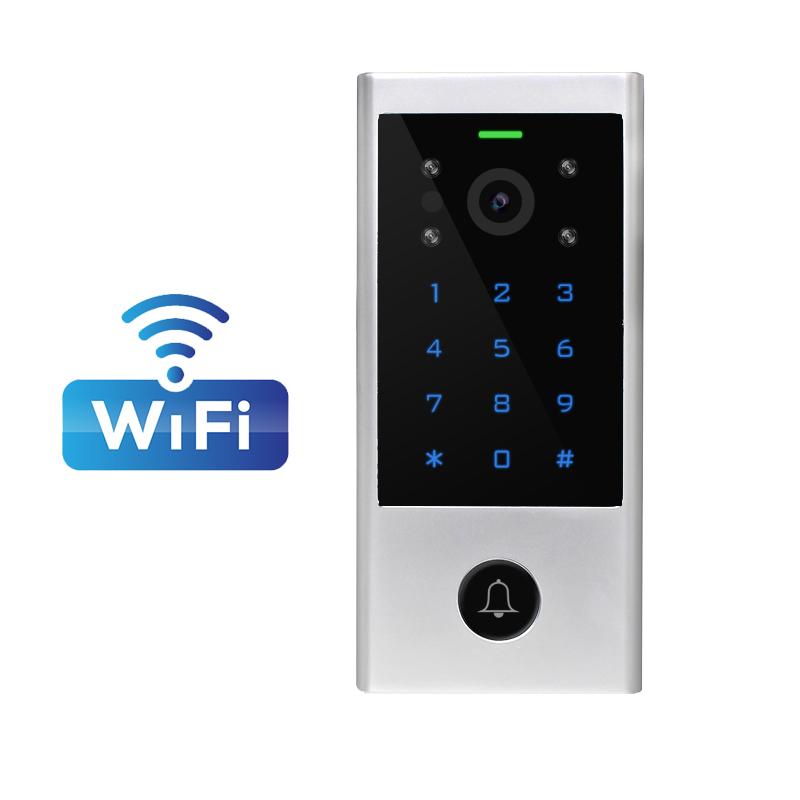

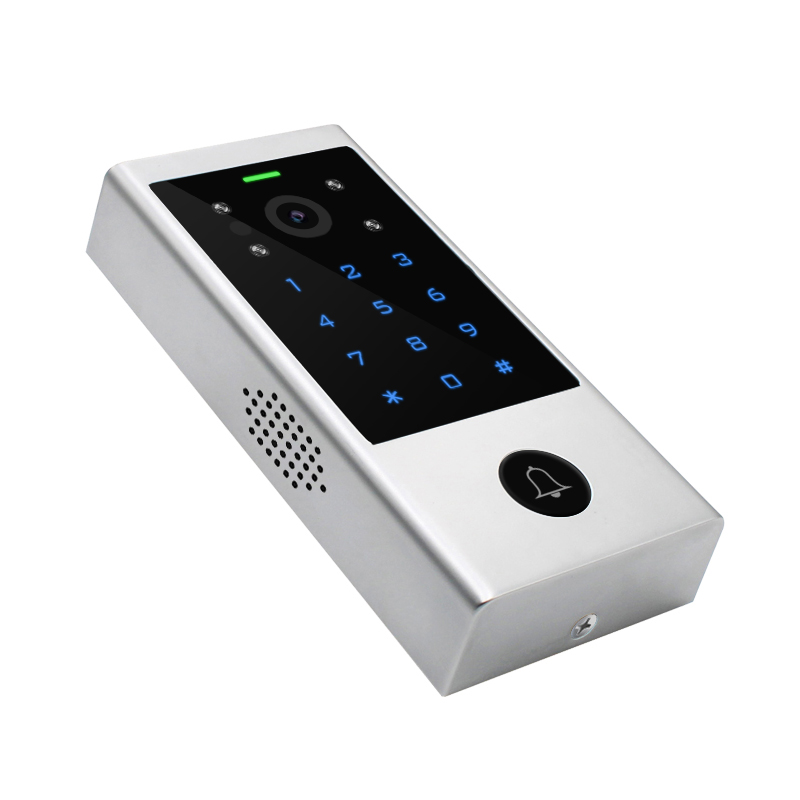

Product Description：Product Show
Detailed Image
Supports Wiegand 26/34 output, can be used as a card reader door access control
