Waterproof Outdoor Surface Mounted Magnetic Lock 280kg 600lbs Sliding Door LockWaterproof Outdoor Surface Mounted Magnetic Lock 280kg 600lbs Sliding Door LockWaterproof Outdoor Surface Mounted Magnetic Lock 280kg 600lbs Sliding Door LockWaterproof Outdoor Surface Mounted Magnetic Lock 280kg 600lbs Sliding Door Lock

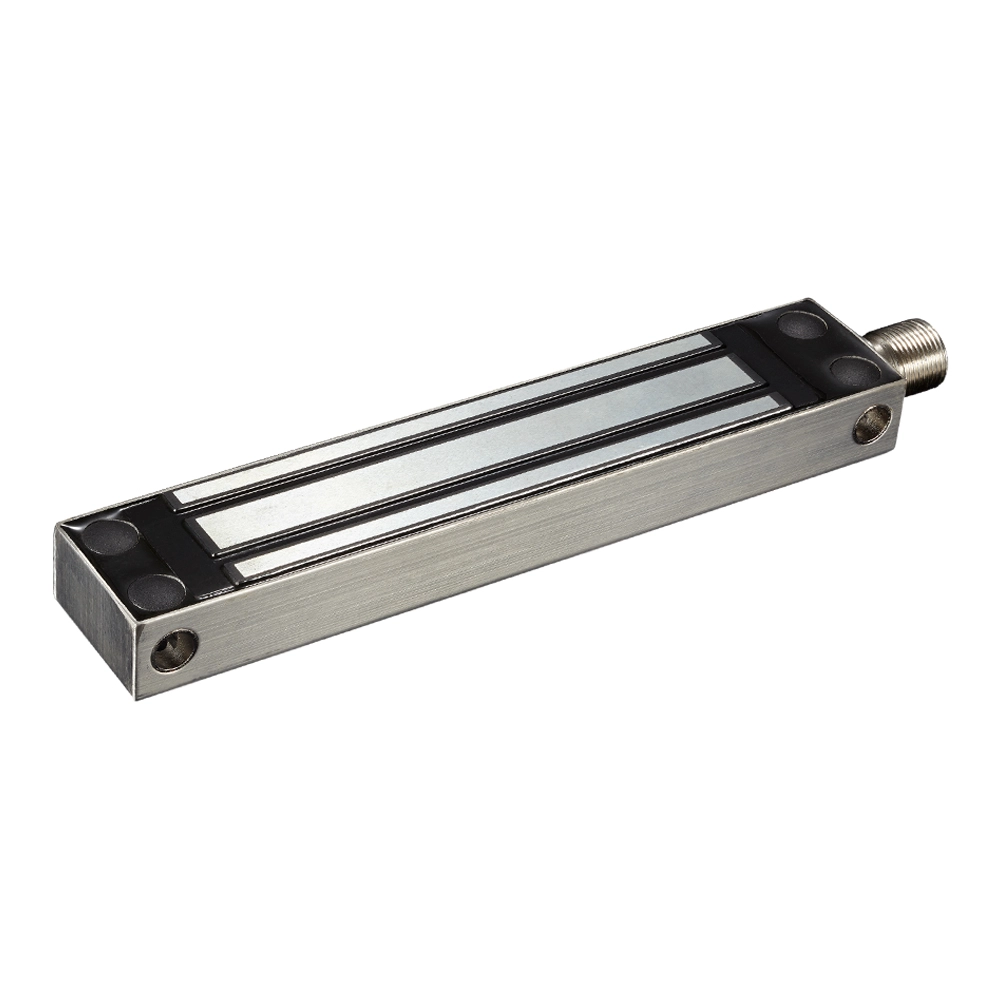

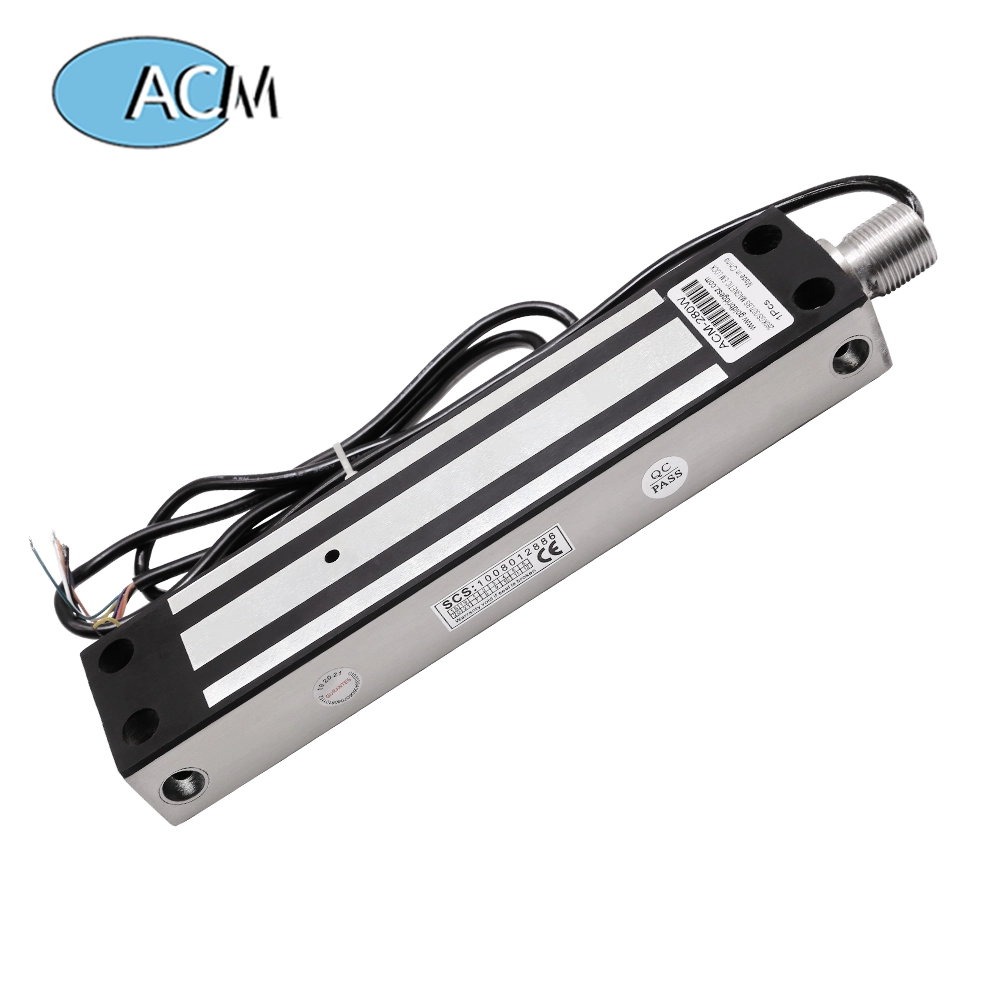

Waterproof Outdoor Surface Mounted Magnetic Lock 280kg 600lbs Sliding Door Lock

  • Model Number: ACM-Y280W
  • Lock Size : 220Lx48Wx23H(mm)
  • Armature plate: 190Lx190Lx45Wx11H(mm)
  • Holding Force : 280kg (600Lbs)
  • Input Voltage : 12/24VDC Dual Voltage
  • Suitable for door: Wooden door , Glass door ,Metal door , Fireproof door
  • Singal Output : Lock singal Status NO/NC/COM/+/-
  • Feature: Fail Safe, Timer delay, feedback signal, 12V/24VDC dual voltage
  • LED: Red shows unlocked, Green shows locked
  • Weight: 2.1kgs
  • Waterproof: IP68
Product Description


280kg waterproof single door electromagnetic lock magnetic card electric locks for outdoor lock


Waterproof Magnetic lock with 600lbs (280kg) holding force for single door

Product Parameter
Parameter Description
Lock Size :
220Lx48Wx23H(mm)
Armature plate:
190Lx190Lx45Wx11H(mm)
Holding Force :
280kg (600Lbs)
Input Voltage :
12/24VDC Dual Voltage
Suitable for door:
Wooden door , Glass door ,Metal door , Fireproof door
Singal Output :
Lock singal Status NO/NC/COM/+/-
Feature:
Fail Safe, Timer delay, feedback signal, 12V/24VDC dual voltage
LED:
Red shows unlocked, Green shows locked
Weight:
2.1kgs
Certification:
CE /MA
Waterproof
IP68
Product Advanatge

- Collinear Load Test 280kg, 600pounds.
- Dual Voltage 12 or 24 VDC(optional).
- The Standard Voltage is 12VDC when Finished.
- MOV Provides Reverse Current Protection.
- Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
- LED Indicates the door Status.
- Lock Status sensor(NO/NC/COM)
- Door Status sensor(NO/NC/COM)
- Anti-Residual Magnetism Designed.
- High Strength Material,Anodized Aluminum Housing.
- Design without Mechanical Failure.
- Increase the holding Force,Dual Insulative Housing.
- CE Certificate by European Union,MA Certificate by China Public Security Office

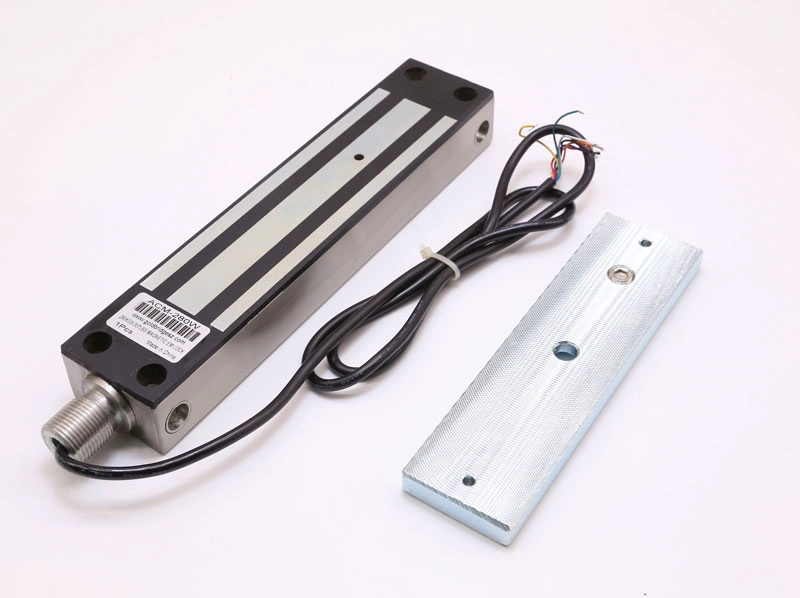

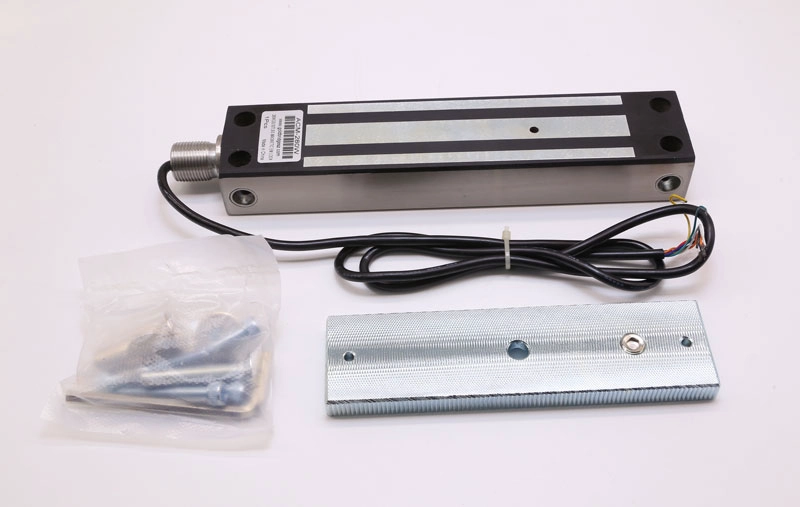

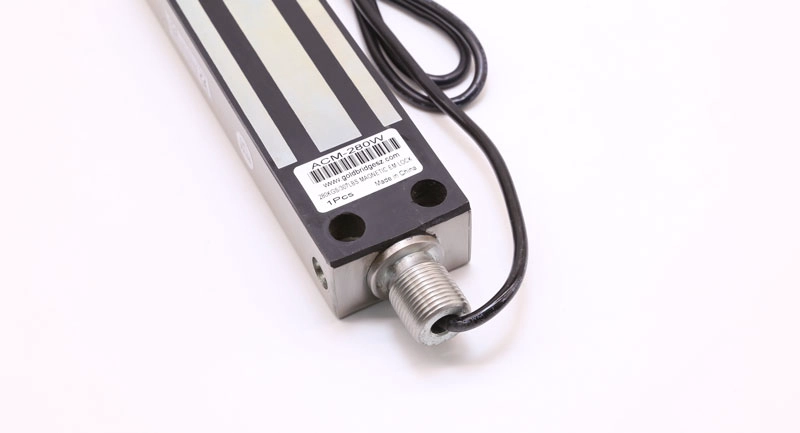

Detailed Images , OEM/ODM available

Our lock is with LED light to show the working statue , light is green when it locked , Red when unlocked . The light statue can be changed .


ACM-Y280W is with signal output . The PCB board can be customized . We can make the lock with 12v&24v dual voltage and with 7 wire connection . Following photo is the PCB board optional .If you want to customize the lock ,please tell us your detail request , we will send your detail quotation after knowing all your requirement .

Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.
