Long type Electric bolt electric strike lockLong type Electric bolt electric strike lockLong type Electric bolt electric strike lock

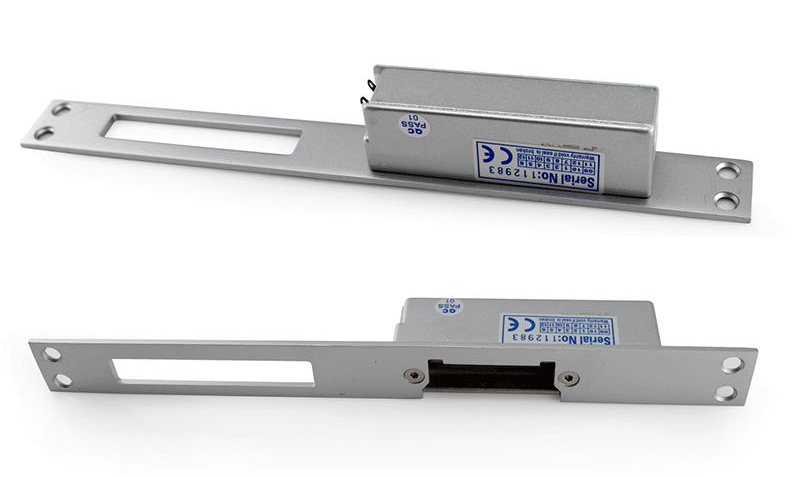

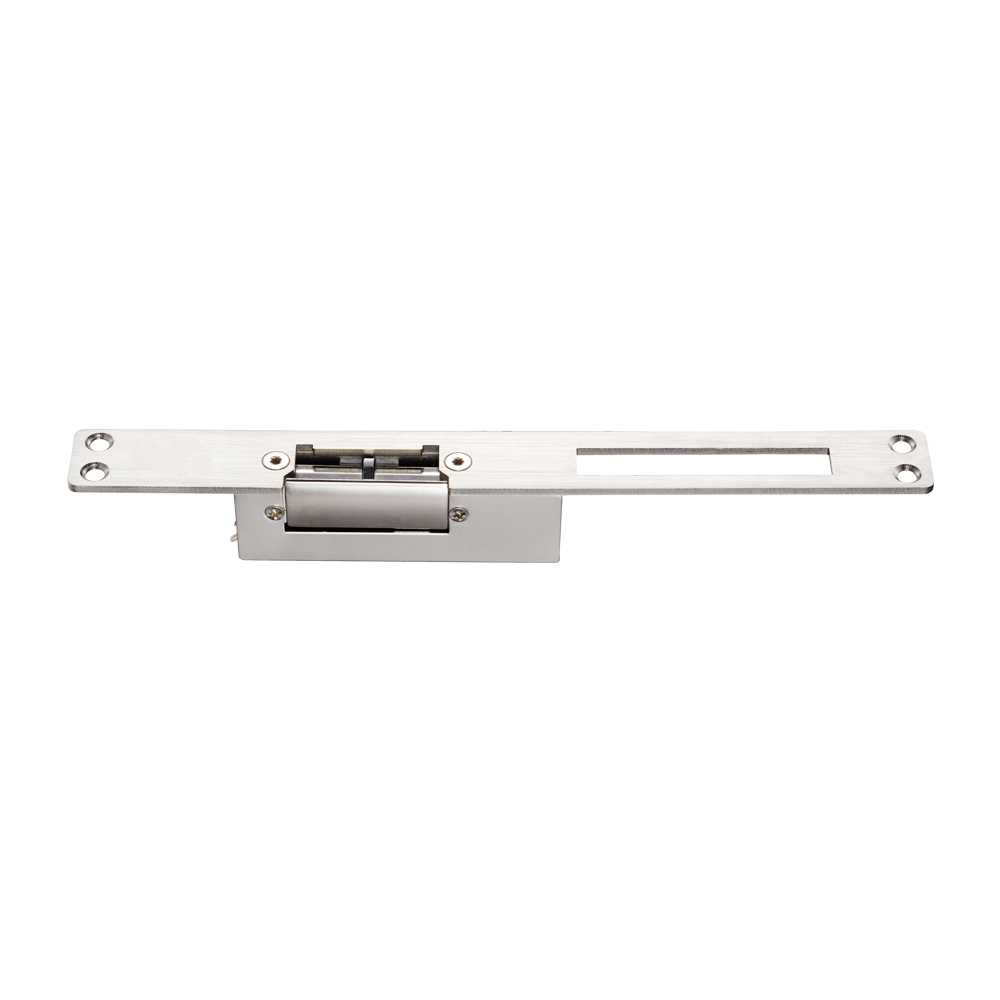

Long type Electric bolt electric strike lock

  • Model Number: ACM-Y132
  • Feature: Fail Safe
  • Strike Structure: Stainless Steel
  • Holding Force: 500kg
  • Voltage: DC12V (Need Order DC24V)
  • Current: 200mA(Y-132NO);200mA(Y-132NC)
  • Suitable For: Wooden Door,Metal Door,PVC Door
  • Suitable Temperature: -10~+55℃(14-131F)
  • Face plate Housing: Painted Steel
Product Description

Long type Electric Strike safety Door Lock


ACM-Y132 is European Long type Electric Strike Lock with adjustable mode for Fail locked & Fail Unlocked.It works with magnetic force generated by electromagnetic field for locking/unlocking

Product Parameter
Parameter Description
Feature
Fail Safe
Strike Structure
Stainless Steel
Holding Force
500kg
Voltage
DC12V (Need Order DC24V)
Current
200mA(Y-132NO);200mA(Y-132NC)
Suitable For:
Wooden Door,Metal Door,PVC Door
Surface Temperature
Within +20℃
Suitable Temperature
-10~+55℃(14-131F)
Operating Humidity
0~90%(non-condensing)
Face plate Housing
Painted Steel
Function
Built-out MOV
Weight
0.4kg
Product Advantages

ACM-Y132 is European Long type Electric Strike Lock with adjustable mode for Fail locked & Fail Unlocked.It works with magnetic force generated by electromagnetic field for locking/unlocking. particularly with short circuit protection.This model has 2 working modes:Power-to-open & Power-to-lock.It is made of high-quality aluminum for high hardness,corrosion resistance & anti-deformation.It is suitable for all types of wooden door, metal door, PVC door etc.
Detailed Images , OEM/ODM available

ACM-Y131 NO/NC is the electric strike with long faceplate. It has two modes: A fail safe electric strike needs power to keep it locked. A fail secure electric strike stays locked even without power. Electric strikes come in many varieties.

More Features and Functions for This Stainless Steel Electronic Stripe (NC/NO)

Installation Diagram
Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.

Packaging
Magnetic Lock packaging: 1unit per box, 30pcs per carton,
Carton size : 54.5*20*30.5cm , Gross Weight :11.7kg. 50 cartons per pallet
