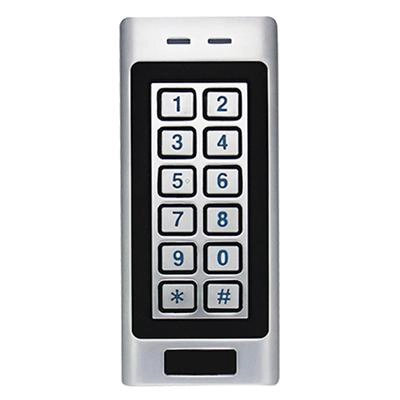

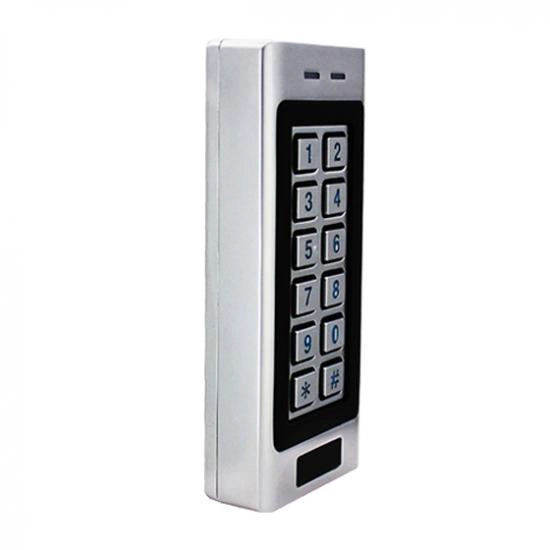

Metal Housing IP68 waterproof RFID card Reader with Dual-relay
Model No.: ACM-242 Dual-relay
It is a metal case, Wiegand output keypad, with integrated proximity reader.
Because of waterproof, it can be mounted either indoor or outdoor in harsh environments.
> Metal Case, anti-vandal
> Waterproof, conform to IP66
> Card Type: 125KHz EM & HID Cards/Fobs
> Wiegand Format: Wiegand 26 default (26~37 available upon request)
> Keypad Transmission: 4 bits (8bits or virtual card number format are available upon request)
> Reading range: 4~8 cm
|
Frequency
|
125KHz
|
|
Card Type
|
EM & HID Cards/Fobs
|
|
Read Range
|
4~8 cm
|
|
Standby Current
|
< 35mA
|
|
Operating Voltage
|
9~18V DC
|
|
Wiegand Output Format
|
Wiegand 26 bits (factory default)
|
|
26~37 bits available upon request
|
|
Keypad Transmission Format
|
4 bits (factory default)
|
|
8 bits or virtual card number format are available upon request
|
|
Operating Temperature
|
-40℃ ~ 60℃
|
|
Operating Humidity
|
0% RH ~ 96% RH
|
|
Index of Protection
|
IP66
|
|
Dimension
|
13.0L x 5.6W x 2.3H (cm)
|
|
Net Weight
|
500g
|
|
Shipment Weight
|
650g
|
