Introduction:

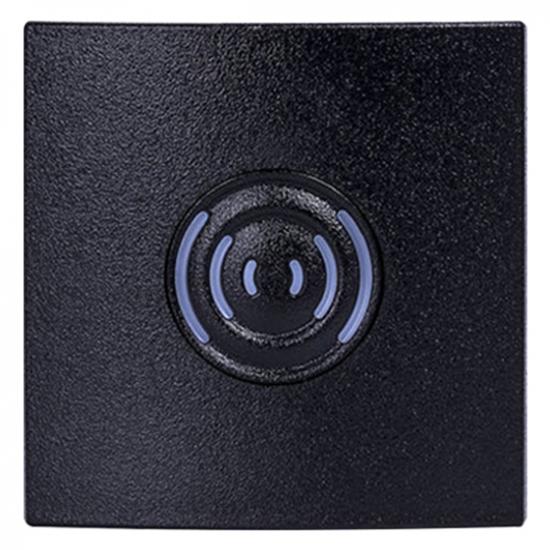

KR200E: 125KHz Proximity card reader
KR200M: 13.56MHz Mifare card reader
Features:
> 125KHz Proximity /13.56MHz Mifare Card Reader
> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)
> 26/34bit Wiegand (default)
> Easy to install on Metal Door Frame or Mullion
> External LED Control
> External Buzzer Control
> Indoor / Outdoor Operation
> Solid Epoxy Potted
> Waterproof IP65
> Reverse Polarity Protection
|
Model |
KR200EM and KR200MF |
|
Read Range |
KR200EM: Up to 10CM, KR200MF: Up to 5CM |
|
Reading Time (Card) |
≤300ms |
|
Power / Current |
DC 6-14V / Max.70mA |
|
Input Port |
2ea (External LED Control, External Buzzer Control) |
|
Output Format |
26bit/34bit Wiegand (default) |
|
LED Indicator |
2 Colour LED Indicators(Red and Green) |
|
Beeper |
Yes |
|
Operating Temperature |
-20° to +65°C |
|
Operating Humidity |
10% to 90% relative humidity non-condensing |
|
Colour |
Black |
|
Material |
ABS+PC with texture |
|
Dimension(W x H x T)mm |
86X86X18mm |
|
Weight |
50g |
|
Index of Protection |
IP65 |
