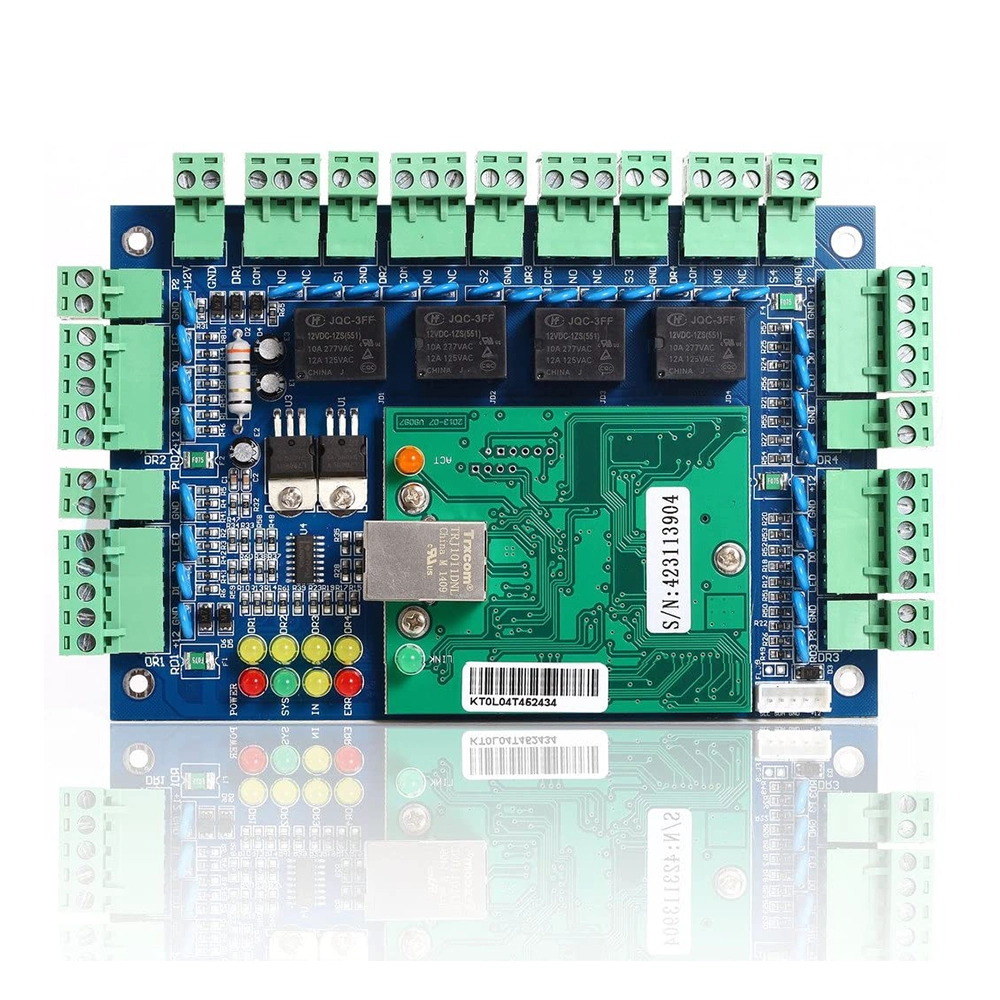

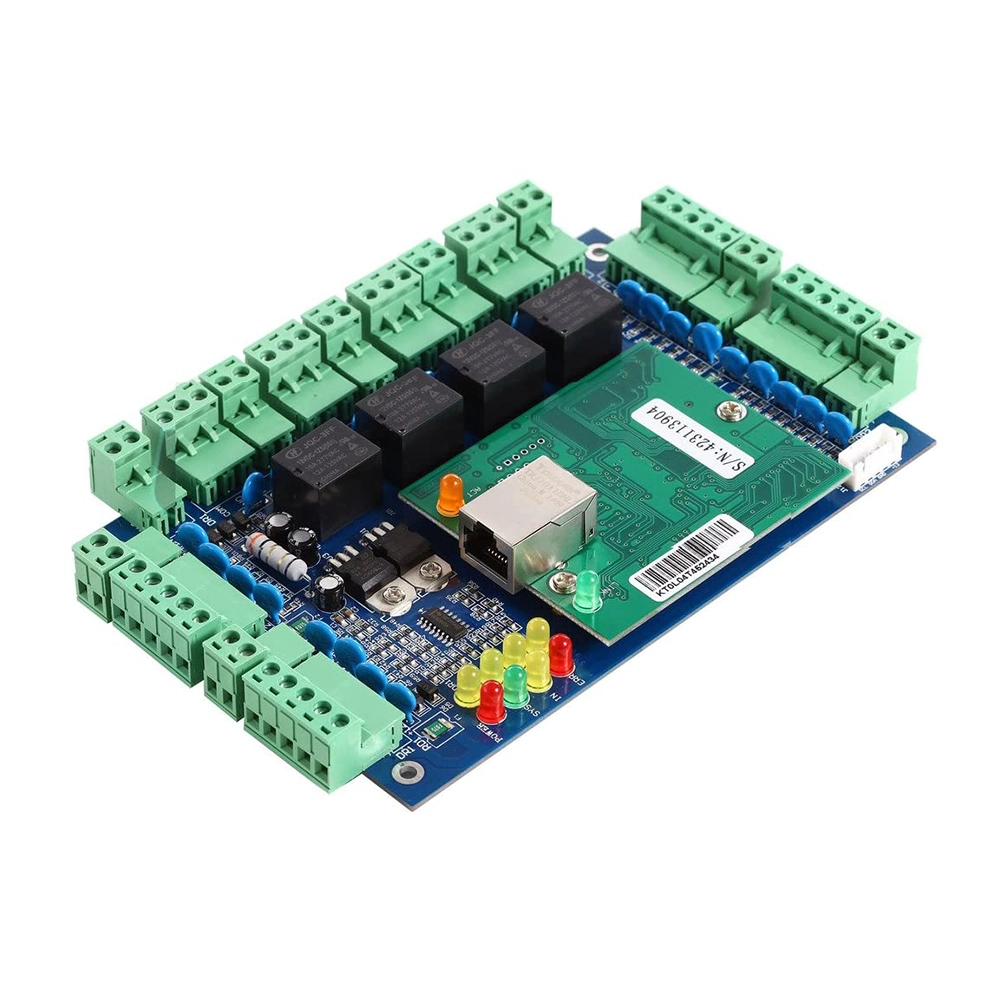

Entry Door Security System Wiegand Solution Controller Board TCP IP RFID Network Four Door Access Control Panel

  • This access control board's software provides numerous access control and alarm monitoring features: expiry date for clubs,
  • automatic activation, time zones, supervision, anti-passback, activity reports... Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code...Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.
Product Description

Entry Door Security System Wiegand Solution Controller Board TCP IP RFID Network Two Door Access Control Panel

This access control board's software provides numerous access control and alarm monitoring features: expiry date for clubs,
automatic activation, time zones, supervision, anti-passback, activity reports... Each alarm input is programmable: operating mode (NO or NC), time zones, local reflex (activation of outputs according to input status). Specific alarms are triggered according to the number of unsuccessful attempts, the time limit for door closing (door alarm), the duress code...Whenever required, the data stored in the controllers is transferred to the computer and activity reports are printed. Each controller works independently and keeps its own database.

Product Parameter
Parameter Description
Model
WG04
User
40,000
Event Buffer
100,000
Power / Current
DC 9.6V-14.4V, Rated Max.1A
Reader Port
4ea (26bit Wiegand, 8bit Burst for PIN)
Communication
Wiegand 26 , Wiegand 34, TCP/IP
Baud Rate
38,400bps (Recommended) / 9600bps, 19,200bps, 57,600bps (selectable)
Input Port
6ea (Exit Button#1, Exit Button#2, Door Sensor#1, Door Sensor#2, Aux#1, Aux#2)
Output Port
2ea (2 FORM-C Relay Output, SPDT 5A@36VDC/8A@30VAC)
2ea (2 Aux FORM-C Relay Output, SPDT 2A@30VDC)
LED Indicator
Yes, LED indication for communication, power, status and punch card
Operating Temperature
0to +55C
Operating Humidity
10% to 80% relative humidity non-condensing
Dimension (L*W)mm
218(W)*106(H)(single board )
345(W)*275(H)*70(D)(with power supply and metal box)
Certification
CE, FCC, RoHS

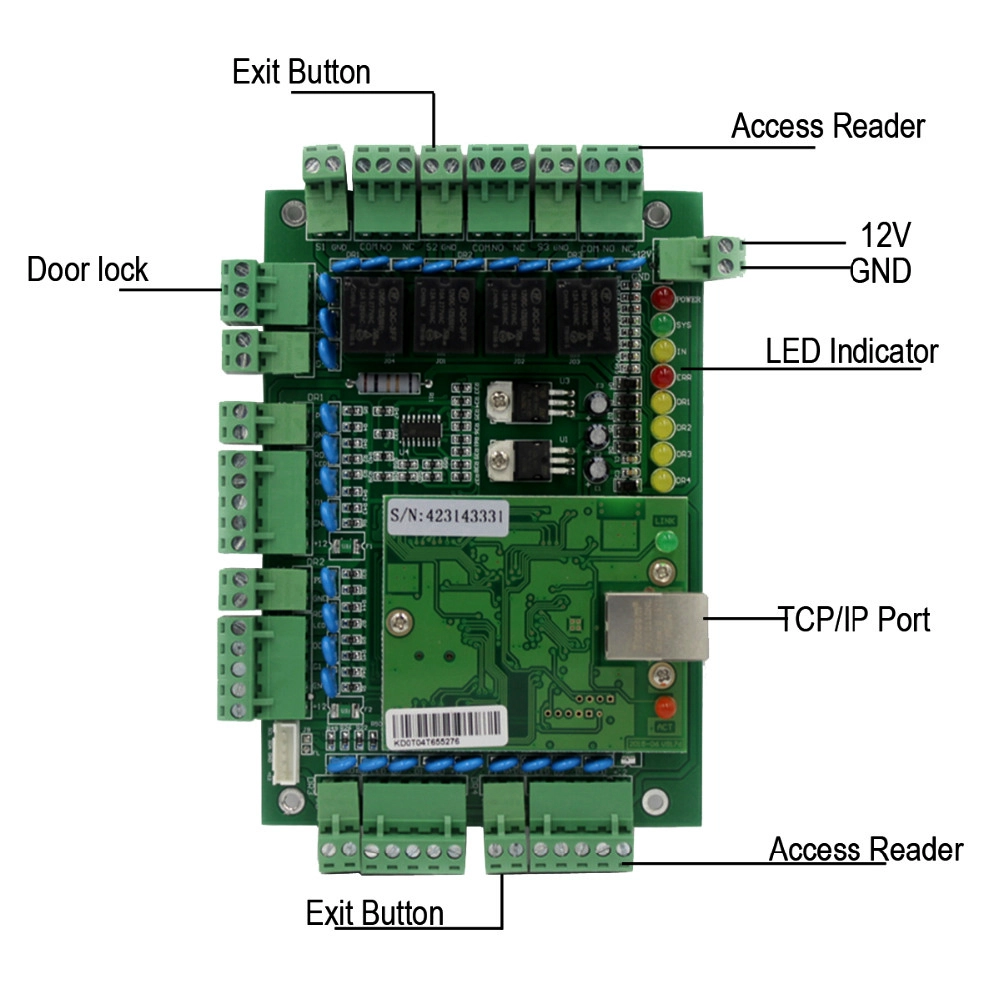

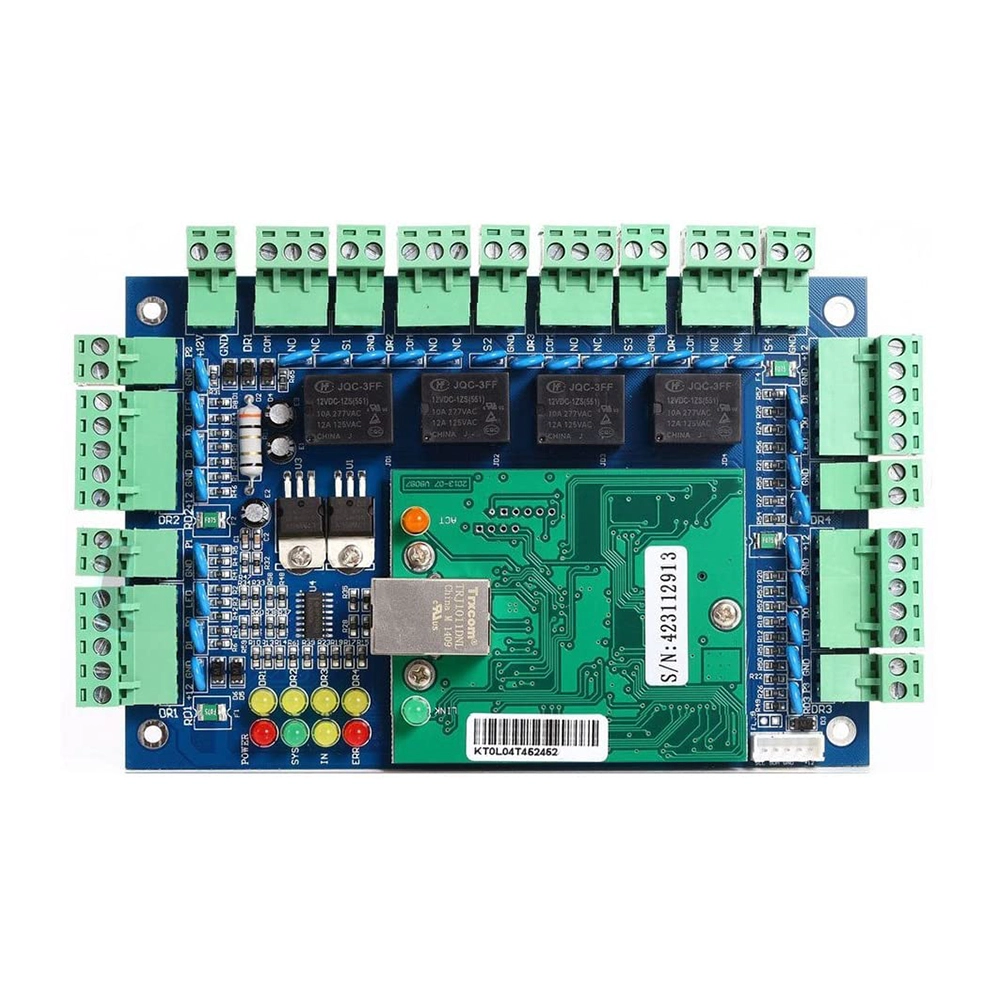

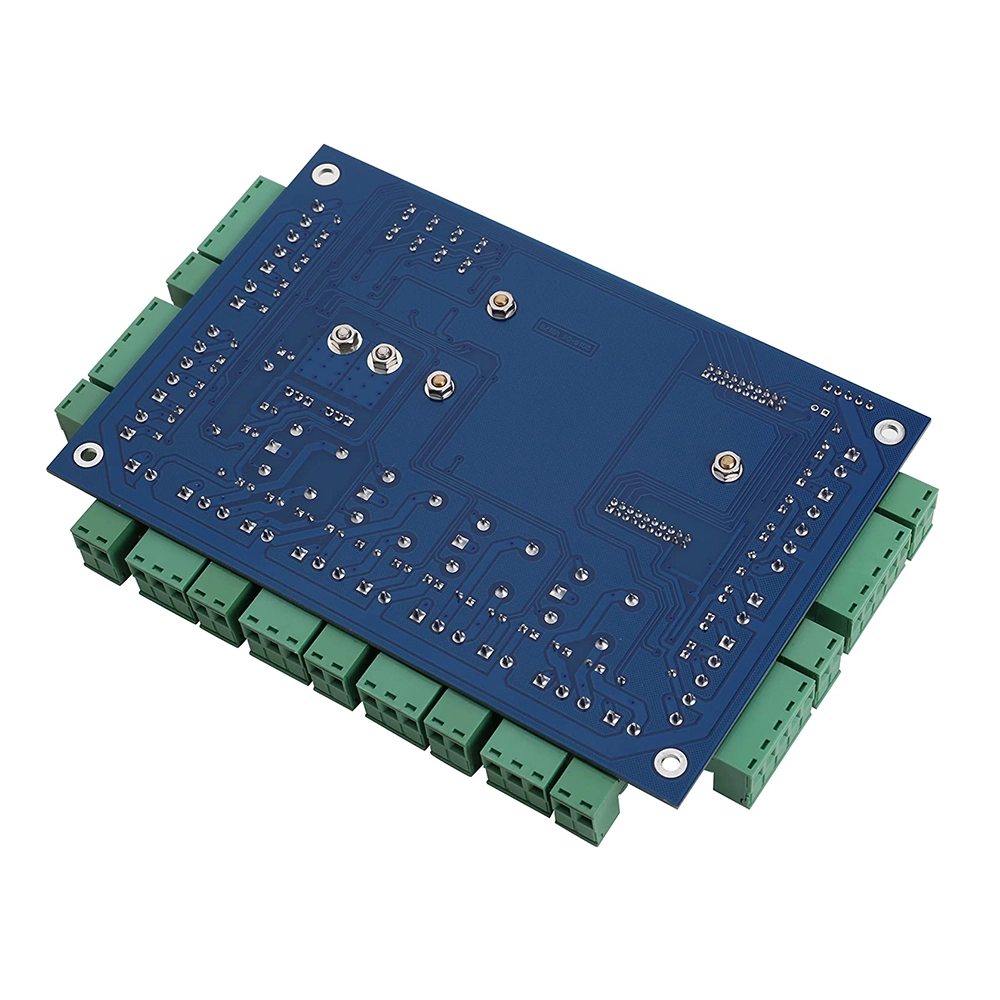

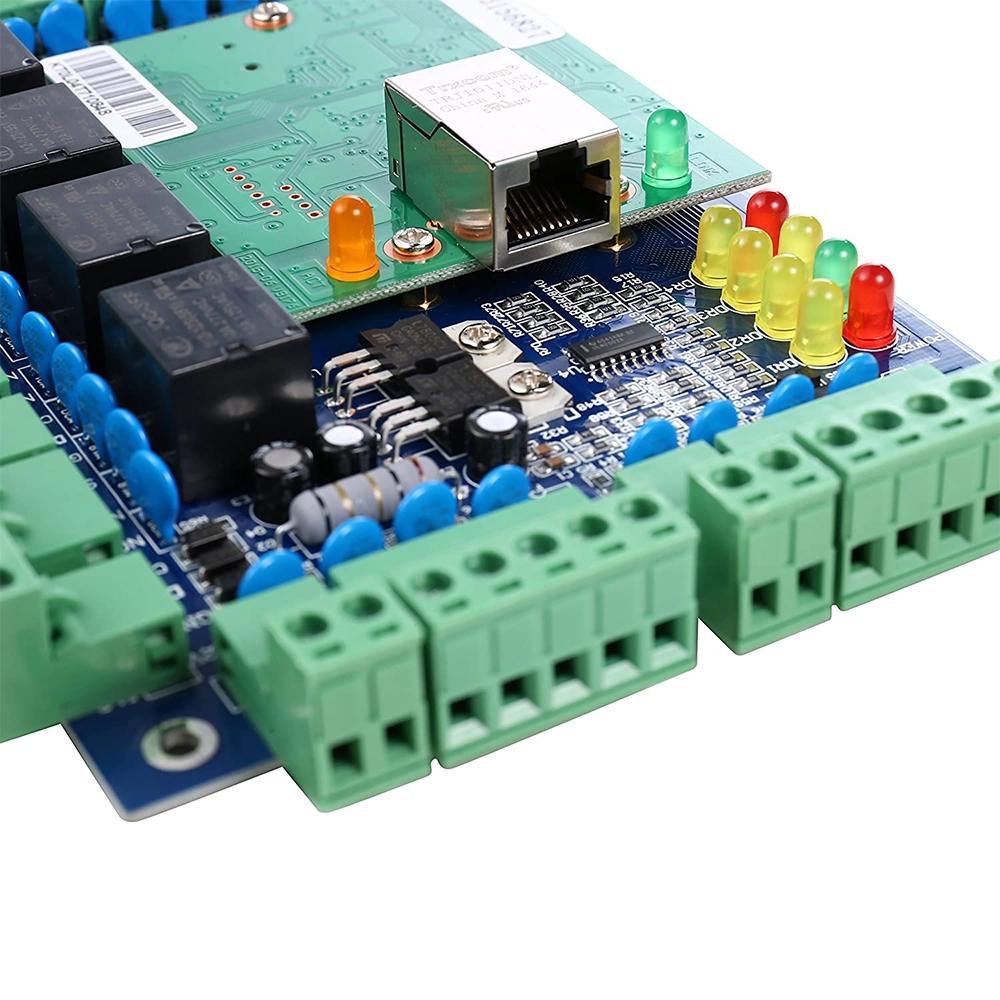

Detailed Images

Hardware:
1. Support 4 doors--Door with four readers and two push button interface.
2. With door sensor for door
3. Relay output for use with Normally Open and/or Normally Closed type locks.
4. Can Opeate off-line and real-time monitoring.
5. 100,000 events can be stored.(off-line), Can store unlimited events to PC.
6. 40,000 users can be registered.
7. Network communication using TCP/IP 10M/100M adaptive.
8. Expandable to use unlimited number of controllers.

Application
Packing & Delivery

        Every order we will check the quality firstly to ensure our customer get the best product.Our staff will pack it carefully to avoid the damage of transportation.We will ship every goods out as soon as possible.

Shipping Way (Just for new customers reference )

          We are one of the leading exporter of RFID products in China since 2000 years . With rich international trade experience we know the international shipping very well , We know which express or air/sea line is cheap and safe to your country . We can supply various certificate for you to clean your custom to such as CO , FTA , Form F , Form E ...Ect . We wil provide our professional suggestion for your shipping . EXW , FOB , FCT , CIF , CFR ...trade term are ok for us . We can be your reliable partner for products and shipping .

Our Service

Your satisfactory is our goal.

1.Any inquires will be replied within 24 hours
2. Professional manufacturer and supplier, Welcome to visit our website and our factory
3.OEM/ODM Available
4. High quality, fashin desing, reasonable & competitive price, fast lead time
5.After-sale Service :
A:All products will have been strictly quality checked in house before packing
B: All products will be well packed before shipping
C:All our products have 2-3 year warranty if the damage is not caused by human
6. Faster delivery : Around 1~ 5 days for sample order, 7~30 days for bulk order
7. Payment : You can pay for the order via : T/T, Western Union, Paypal, Ali trade assurance
8.Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, You also can choose your own shipping forwarder.Your satisfactory is our goal.


Quality Warranty


1.Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
2.On the contrary, ACM Goldbridge will charge extra if repair.
3. More information, please browse our service center.

Related Products

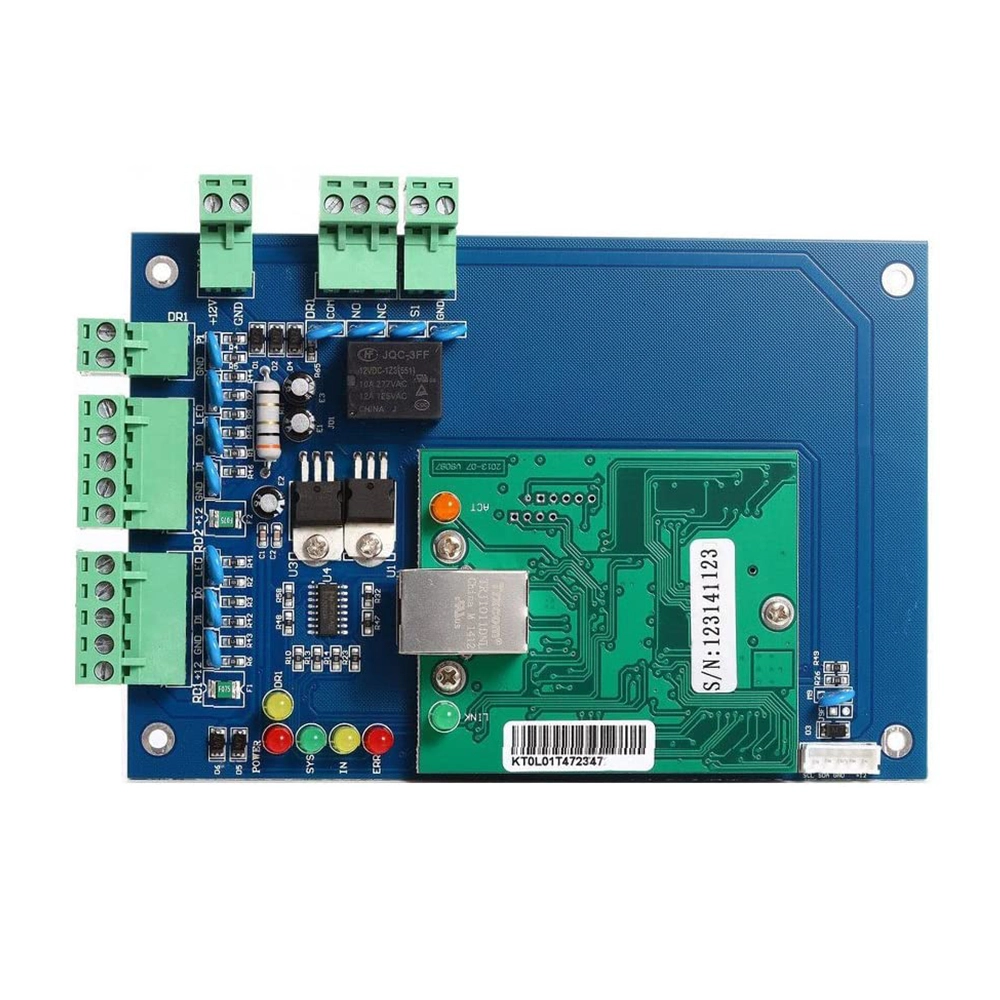

ACM-WEG01
