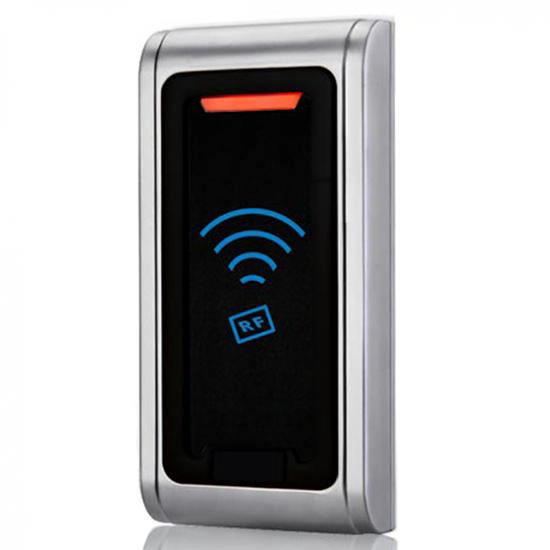

Proximity Card Access Control System RFID Card Reader

  • > Card type: 125KHz or 13.56MHz Card
  • > ACM06EM: 125KHz (WG26 output)
  • > ACM06Mifare: 13.56MHz (WG34 output)
Product Description

Introduction:

125KHz Proximity card reader

13.56MHz Mifare card reader


Features:

> 125KHz Proximity /13.56MHz Mifare Card Reader

> Read Range: Up to 10CM(125KHz)/5CM(13.56MHz)

> 26/34bit Wiegand (default)

> Easy to install on Metal Door Frame or Mullion

> External LED Control

> External Buzzer Control

> Indoor / Outdoor Operation

> Solid Epoxy Potted

> Waterproof IP65

> Reverse Polarity Protection


Model

ACM06EM

Read Range

Up to 10CM, RF006MF:Up to 5CM

Reading Time (Card)

≤300ms

Power / Current

DC 6-14V / Max.70mA

Input Port

2ea (External LED Control, External Buzzer Control)

Output Format

26bit/34bit Wiegand (default)

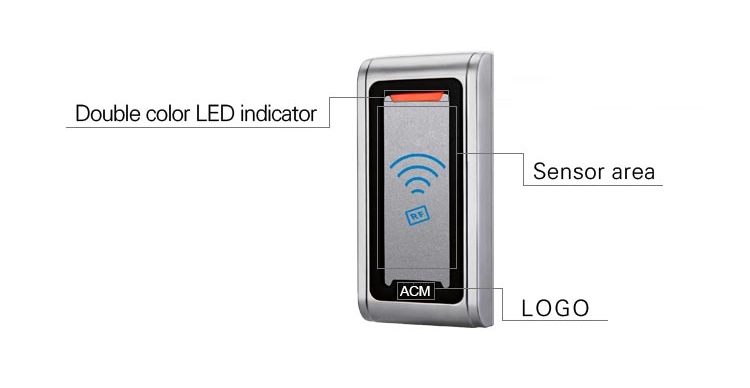

LED Indicator

2 Colour LED Indicators(Red and Green)

Beeper

Yes

Operating Temperature

-20° to +65°C

Operating Humidity

10% to 90% relative humidity non-condensing

Colour

Black

Material

ABS+PC with texture

Dimension(W x H x T)mm

120X56X18mm

Weight

50g

Index of Protection

IP65


Metal rfid card reader
