Introduction:
125KHz proximity card reader
13.56 MHz Mifare card reader
Features:
125 KHz / 13.56 MHz proximity Mifare card reader
> Read range: up to 10cm (125KHz) / 5cm (13.56MHz)
> 26/34 bit Wiegand (default)
> Easy to install on metal frame or post
> External LED control
> External buzzer control
> Internal / external operation
> Solid epoxy resin in pot
> IP65 waterproof
> Reverse polarity protection
|
Template
|
ACM07EM / MF
|
|
Read interval
|
Up to 10 cm, MF: up to 5 cm
|
|
Reading time (card)
|
≤300ms
|
|
Power / Current
|
DC 6-14V / Max 70mA
|
|
Entrance door
|
2ea (external LED control, external buzzer control)
|
|
Output format
|
26 bit / 34 bit Wiegand (default)
|
|

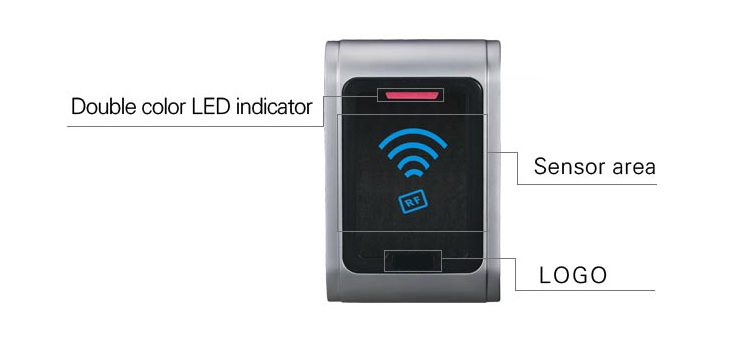

LED indicator
|
2-color LED indicators (red and green)
|
|
Beeper
|
Yup
|
|
operating temperature
|
-20 ° to + 65 ° C
|
|
Operating humidity
|
10% to 90% RH non-condensing
|
|
Color
|
Black
|
|
Material
|
ABS + PC with texture
|
|
Dimensions (W x H x D) mm
|
120X80X25mm
|
|
Weight
|
50g
|
|
Protection index
|
IP65
|
