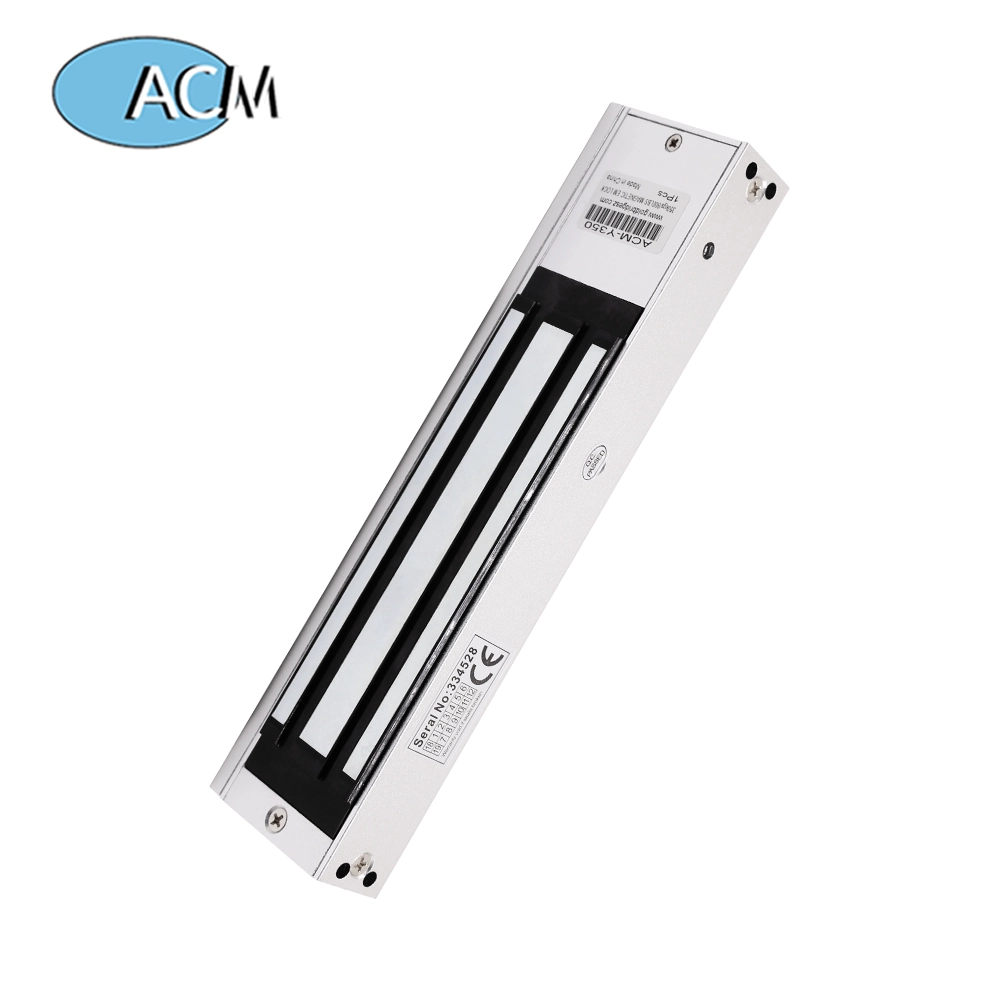

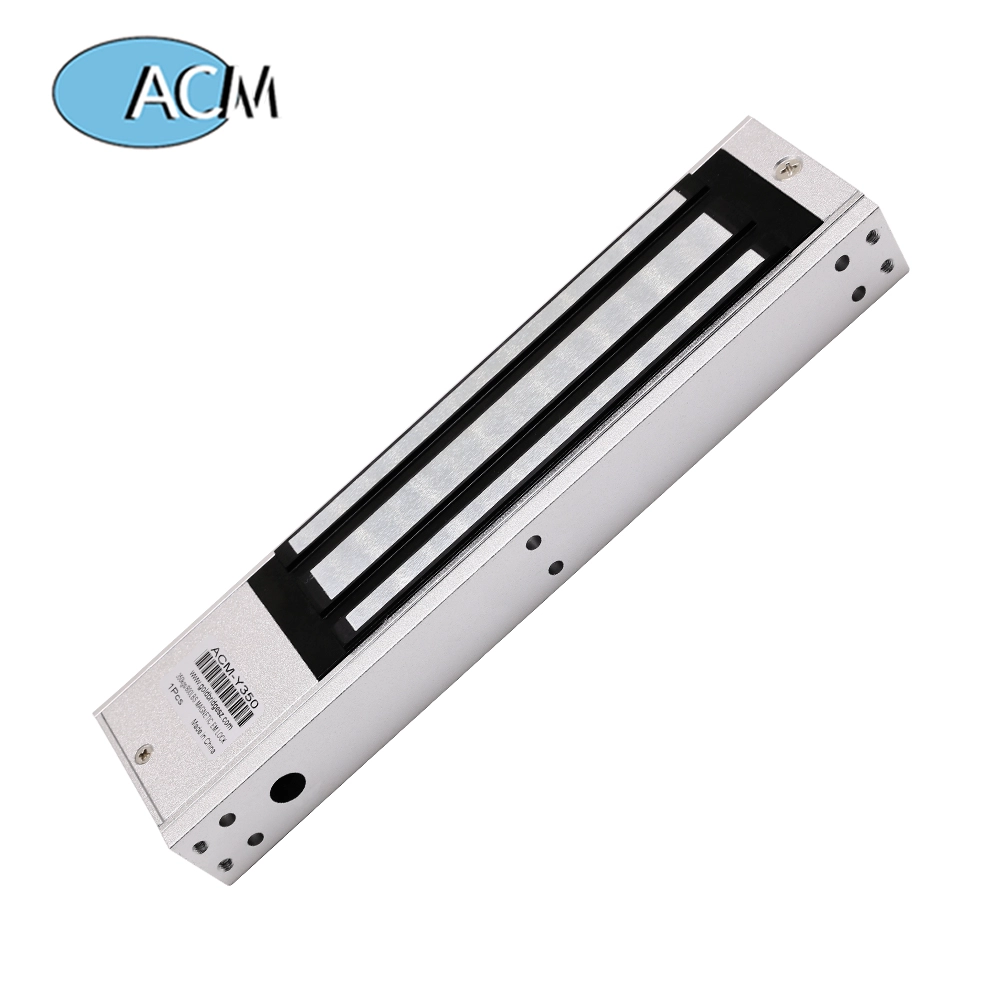

350KG EM Lock With Time Delay Function Smart Door Lock 800LBS Electric Magnetic Lock With LED Indicator

Model Number: ACM Y350-S
Product name: Access Control Inbuilt time delay 350Kg/800Ibs Electric lock
Holding force: 350Kg/800Ibs
Voltage: DC 12V
Current: 240-480mA
Working temperature: -30 to 55 Celsius degree
Humidity: 0 to 95%
Working mode: power-on to lock
Magnet( LxWx H): 285Lx55Wx27.5H(mm)
Armature Plate( LxWxH): 190Lx45Wx11H(mm)

Product Description

High quality 350kgs glass and wooden door glass door magnetic lock

Magnetic lock with 800lbs (350kg) holding force for single door

Product Parameter	Parameter Description
Lock Size :	250Lx53Wx27H(mm)
Armature plate:	190Lx190Lx45Wx11H(mm)
Holding Force :	350kg (800Lbs)
Input Voltage :	12/24VDC Dual Voltage
Suitable for door:	Wooden door , Glass door ,Metal door , Fireproof door
Singal Output :	Lock singal Status NO/NC/COM/+/-
Feature:	Fail Safe, feedback signal, 12V/24VDC dual voltage
LED:	Red shows unlocked, Green shows locked
Weight:	2.6kgs
Certification:	CE /MA

Product Advanatge

Collinear Load Test 350kg,800pounds.
Dual Voltage 12 or 24 VDC(optional).
The Standard Voltage is 12VDC when Finished.
MOV Provides Reverse Current Protection.
Suitable For Wooden Door,Glass Door,Metal Door,Fireproof Door.
LED Indicates the Door Status.
Lock Status sensor(NO/NC/COM).
Time: 0/3/6/9sec.
Anti-Residual Magnetism Designed.
High Strength Material,Anodized Aluminum Housing.
Design without Mechanical Failure.
Increase the holding Force,Dual Insulative Housing.
CE Certificate by European Union,MA Certificate by China Public Security Office.

Shenzhen Goldbridge focus on innovation R&D production and sales of IOT RFID products and application solution, rfid reader category including UHF desktop reader writer, UHF integrated reader, UHF R2000 fixed reader, UHF OEM module, RFID handheld reader, uhf rfid tags, active 2.4G rfid reader, EM 125KHZ Long range reader, industrial RFID hardware and integrated software, obtained the national high-tech enterprise certification FCC, CE and ROHS.

ACM-Y280N

Backplate magnetic lock (280kgs/600lbs) Suitable For: Wooden Door, Glass Door, Metal Door, Fire| Proof Door

ACM-Y180

Surface mounted (180kg/300lbs) magnetic lock 2Bolts Fail safe.Suitable For: Wooden Door, Glass Door, Metal Door, Fire Proof Door.

ACM-Y280

280kg(600lbs) Single Door magnetic Lock Suitable For: Wooden Door, Glass Door, Metal Door, Fire Proof Door.

ACM-Y280-L

L Bracket for 280kg/350kg Magnetic Lock

ACM-Y180ZL

ZL Bracket for 180kg/300lbs Magnetic Lock

ACM-Y280-ZL

ZL Bracket for 280Kg/350Kg Magnetic Lock

Our Service

1, Any inquires will be replied within 24 hours
2, Professional manufacturer and supplier, Welcome to visit our website and our factory
3, OEM/ODM Available
4, High quality, fashin desing, reasonable & competitive price, fast lead time
5, After-sale Service :
1), All products will have been strictly quality checked in house before packing
2), All products will be well packed before shipping
3), All our products have 2-3 year warranty if the damage is not caused by human
6, Faster delivery : Around 1~ 5 days for sample order, 7~30 days for bulk order
7, Payment : You can pay for the order via : T/T, Western Union, Paypal.
8, Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, You also can choose your own shipping forwarder.

FAQ

Q: 1. How can I place an order?
A: Please list your requirement to us via email. Then we will send the offer to you at earliest time,after order confirmation, we will arrange production ASAP.

Q: 2.What about the payment and shipment?
A: Trade Assurance and T/T ,Paypal, Western Union.
Clients can choose by sea, air or express(DHL, FedEx, TNT UPS etc.)

Q: 3. How can i get a sample to check your quality?
A:We could provide free sample to you, and the freight cost payed by you.

Q:4. How long can I expect to get the samples?
A: It depends on the quantity. Normally 3-7 days for 5000pcs and 7-15 days for 100,000pcs

Q:5. Can your products be customized?
A: Almost all of your products are customized ,including the materia, size, thickness and printing. OEM orders are highly welcome.

Q:6.Are you a trading company or factory?
We are the one of the biggest manufacturer of RFID cards/NFC tags/RFID keybod /RFID wristband，rfid reader and access control products in China more than 20 years.
