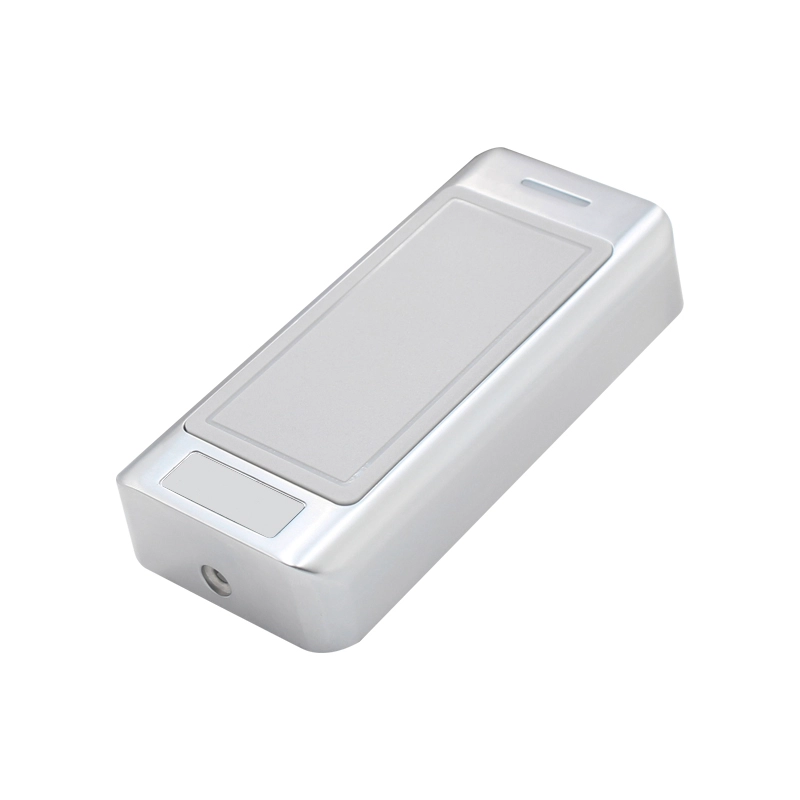

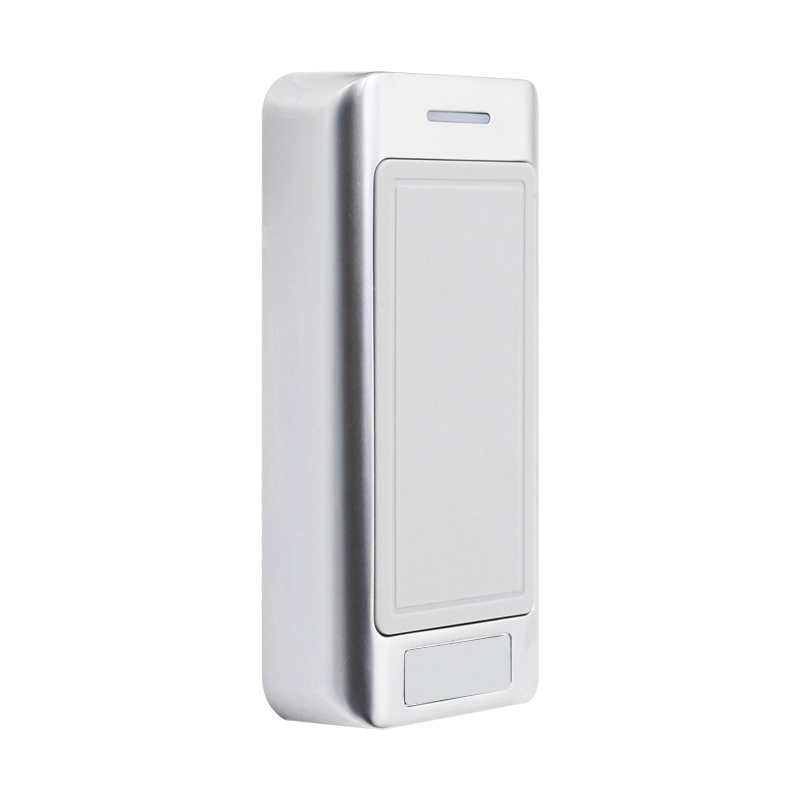

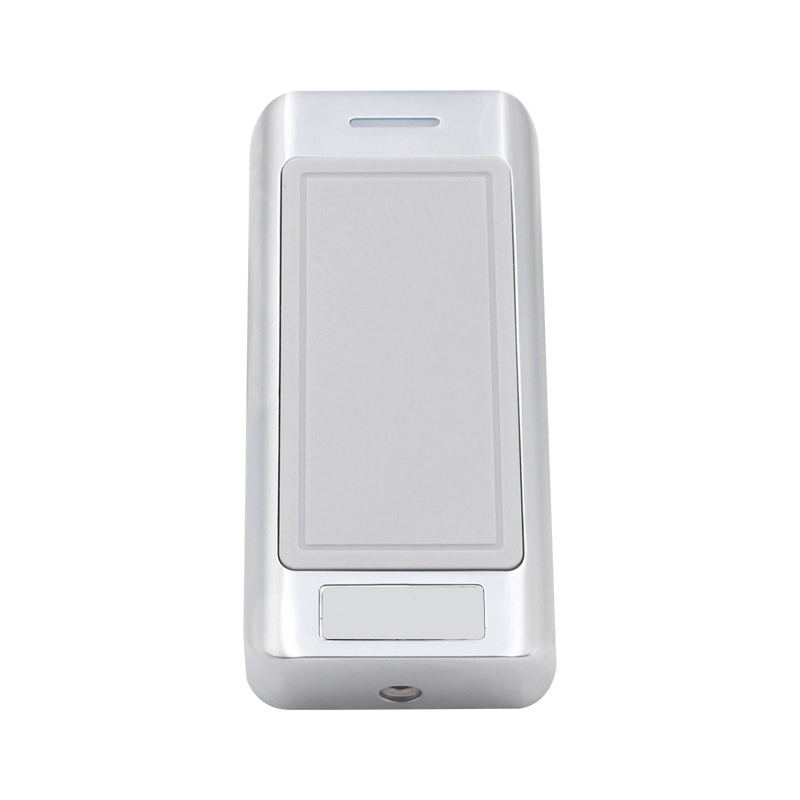

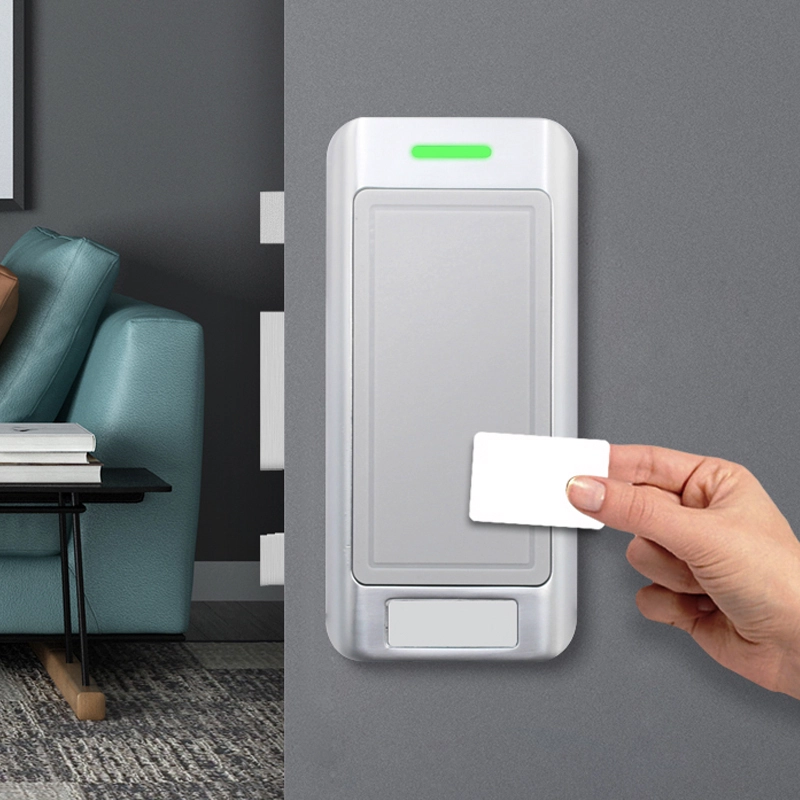

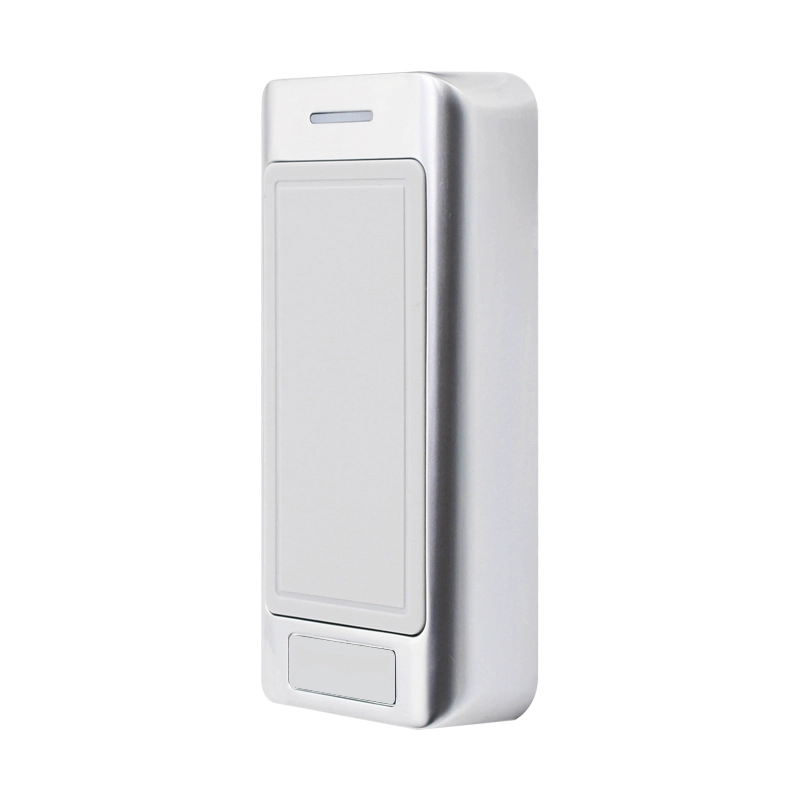

proximity card reader
• Metal Case
• Waterproof, conforms to IP66
• Wiegand 34,58 bits output
• Card type: EM card
• Working temperature: -40°c ~ 60 °c (-40 °F ~ 140 °F)
• Reading range: ≥3cm
Access Control Reader
Operating Voltage |
9~24V DC |
Frequency |
13.56MHz |
Card Type |
IC/MF Card |
Reading Distance |
3~8 CM |
Output Format |
Wiegand 34,58 bits |
Operating Temperature |
-40 oC ~ 60 oC (-40 oF ~ 140 oF) |
Standby Current |
< 25mA |
Operating Humidity |
10%~98% RH |
Index of Protection |
IP66 |
Dimensions |
L105 x W50 x H19 (mm) |
