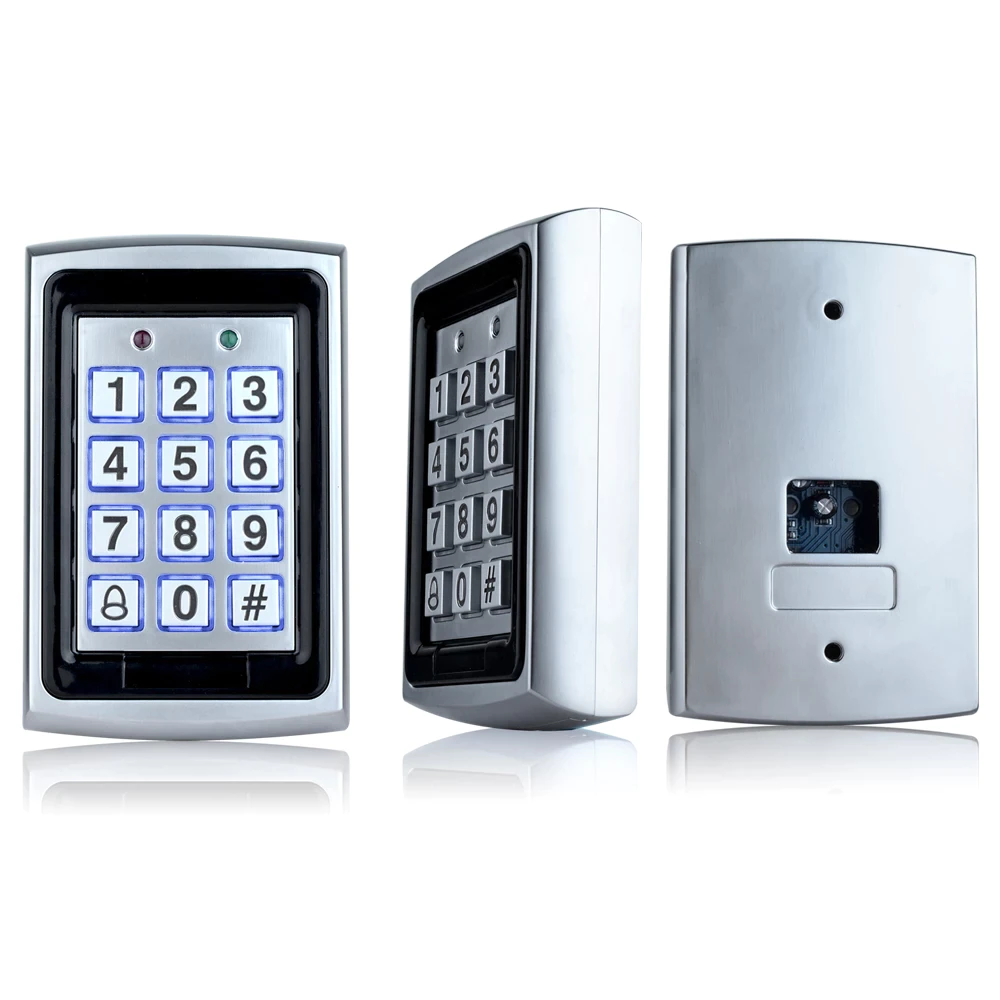

125KHz RFID Standalone Access Control Keypad
High quality / 1000 user capacity / 3 unlock method
Product Features
Classical metal standalone access control adopts zinc alloy. Based on low power consumption and low cost. Suitable for household, office and department.
-
High quality and high security
-
Sensitively and response quickly.
-
1000 standard users capacity.
-
With door bell button, backlight digits keypad.
-
With WG26 interface. 2 relays output
-
With time delay, tamper alarm function
-
Support card, password, password plus card to open the door
-
Classical Appearance with useful function.
-
Professional design for Home and Office.
-
Support one-door
-
Can be used as a stand alone keypad
-
Doesn't need to connect on the computer, can works alone
-
Application: Home/ hotel/ office/ apartment/ factory, etc
Product Specifications
-
User Capacity: 1000 user cards
-
Dimension: 77*120*27mm(L/H/W)
-
Working Frequency: 125KHz
-
Working Voltage: DC12V
-
Working Current: 1.2A
-
Working Temperature: -10 to +70
-
Reading Distance: 0-10cm
-
Relative Humidity: 20%-90%
Product Details
Metal structure, safe and durable
eco-friendly zinc alloy, make the product more secure and durable, anti-vandal, anti-tamper, suitable for different environmental installation.

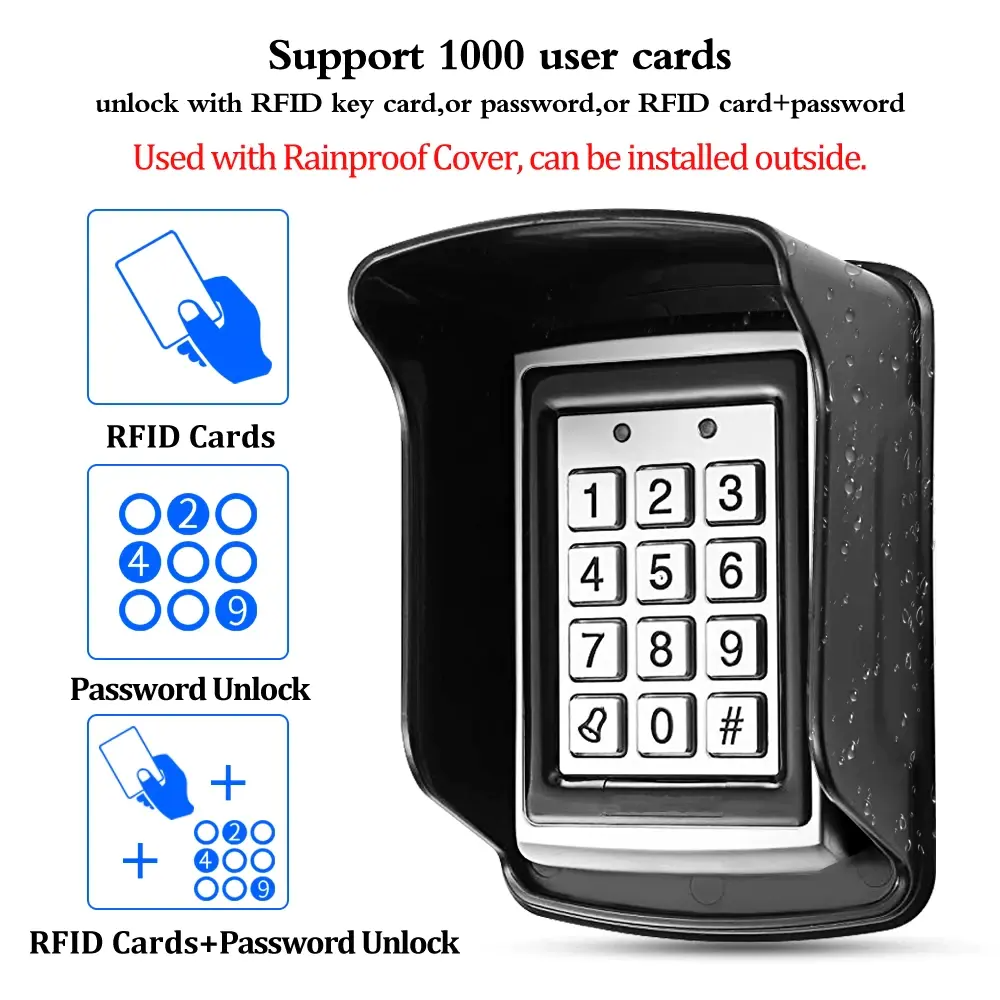

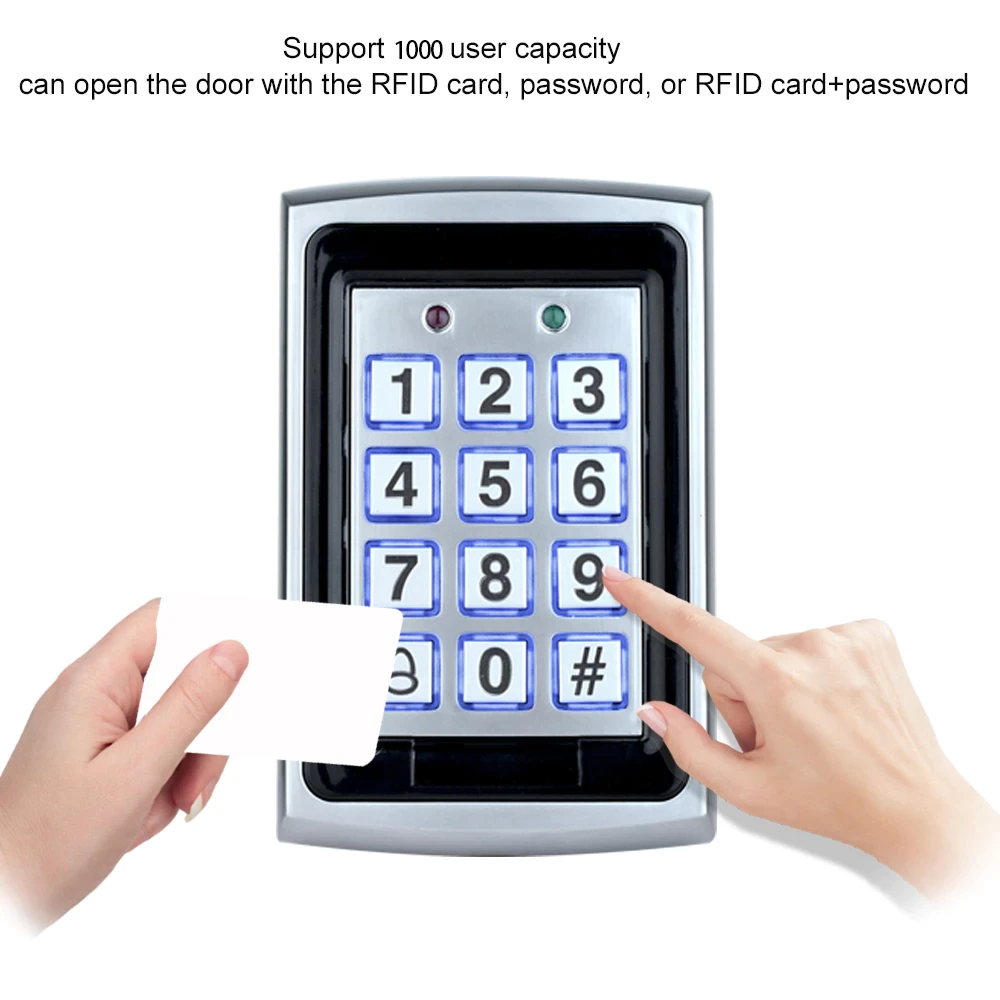

Support 1000 user cards. and 4 digits password. Has 3 different unlock method.
unlock with rfid card, password, rfid card + password
Used with Rainproof Cover, can be installed outdoor
Support tamper alarm function
Prevent the outdoor access control machine from being removed and automatically alarm when dismantling.

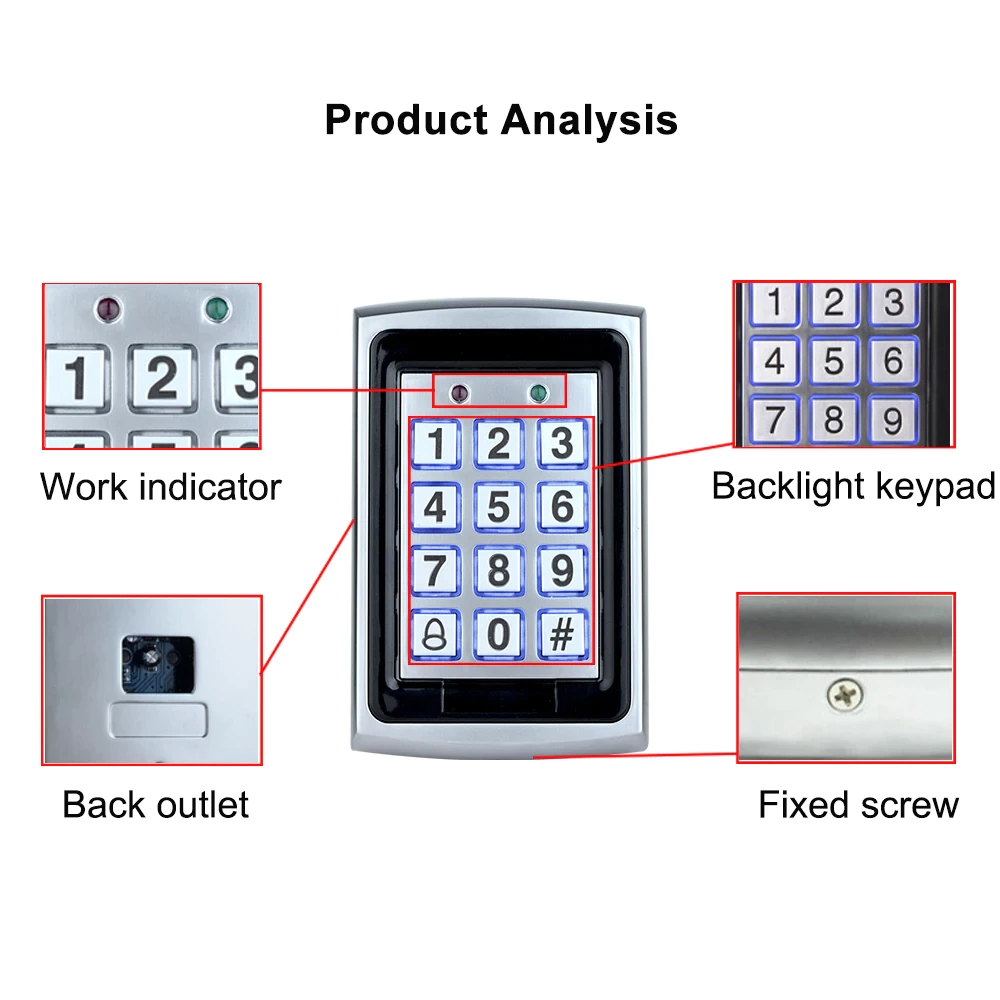

Metal keypad, digital backlit
All programming is done through the keypad. and the digital backlight key is convenient in night or dark environment. Up to 1000 user capacity
Easy to install and operation
Based on advanced technology, fast recognition speed, high sensitivity. Suitable for most major access control solution.

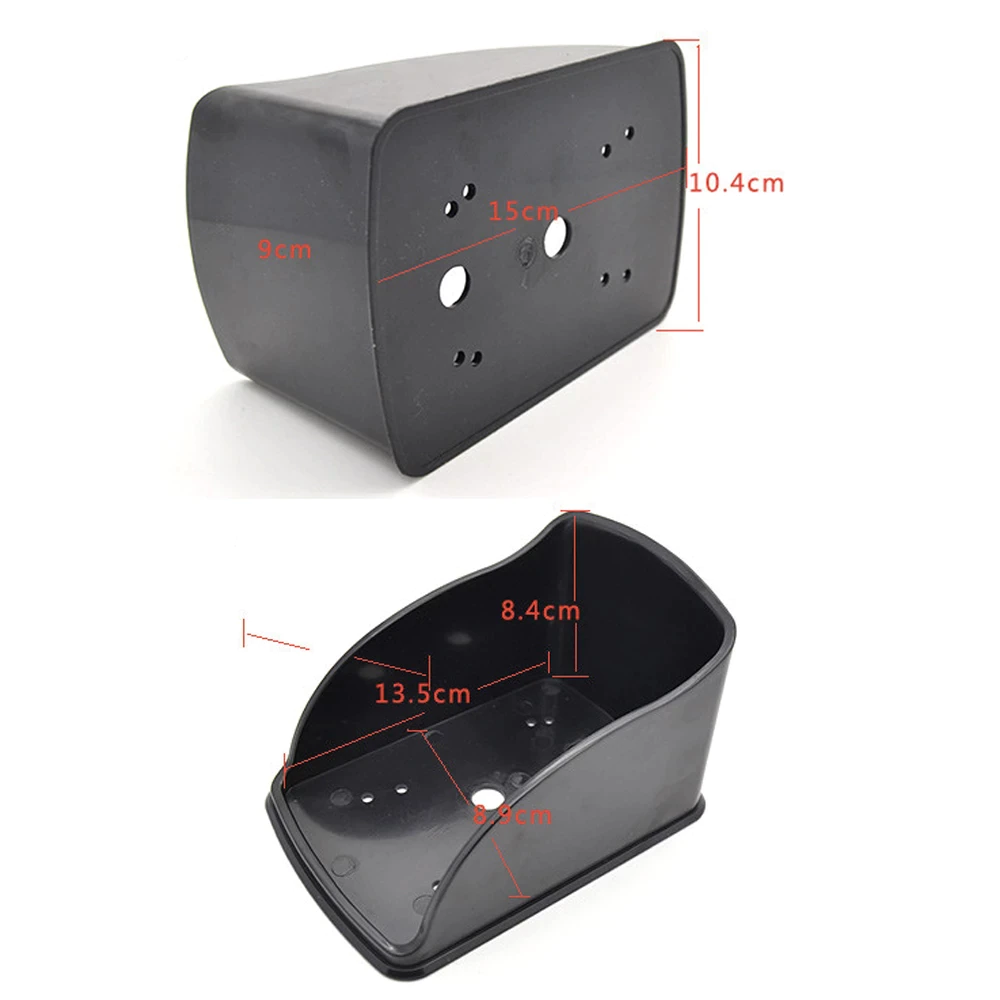

Rainproof Cover
This waterproof shell is suitable for fingerprint device, access controller, standalone rfid door access controller, which length is less than 13cm, width is less than 8cm.
Dimension:
Outside: 15cm*10.4cm*9cm (L*W*H)
Inside: 13.5cm*8.9cm*8.4cm (L*W*H)
( The 7612 model access control is still working when there are some water on the surface, but can’t be use in rain directly. If you want to install item outside, please buy this rainproof cover to protect it. )
Wiring Diagram
This Access Control Keypad is don't need to connected to the computer. You just connect it to the DC12V power supply, electric lock, exit button. Then ok.
The power supply and electric lock, exit button, door bell is not included in the package, if you need it, please contact us. Thank you!
