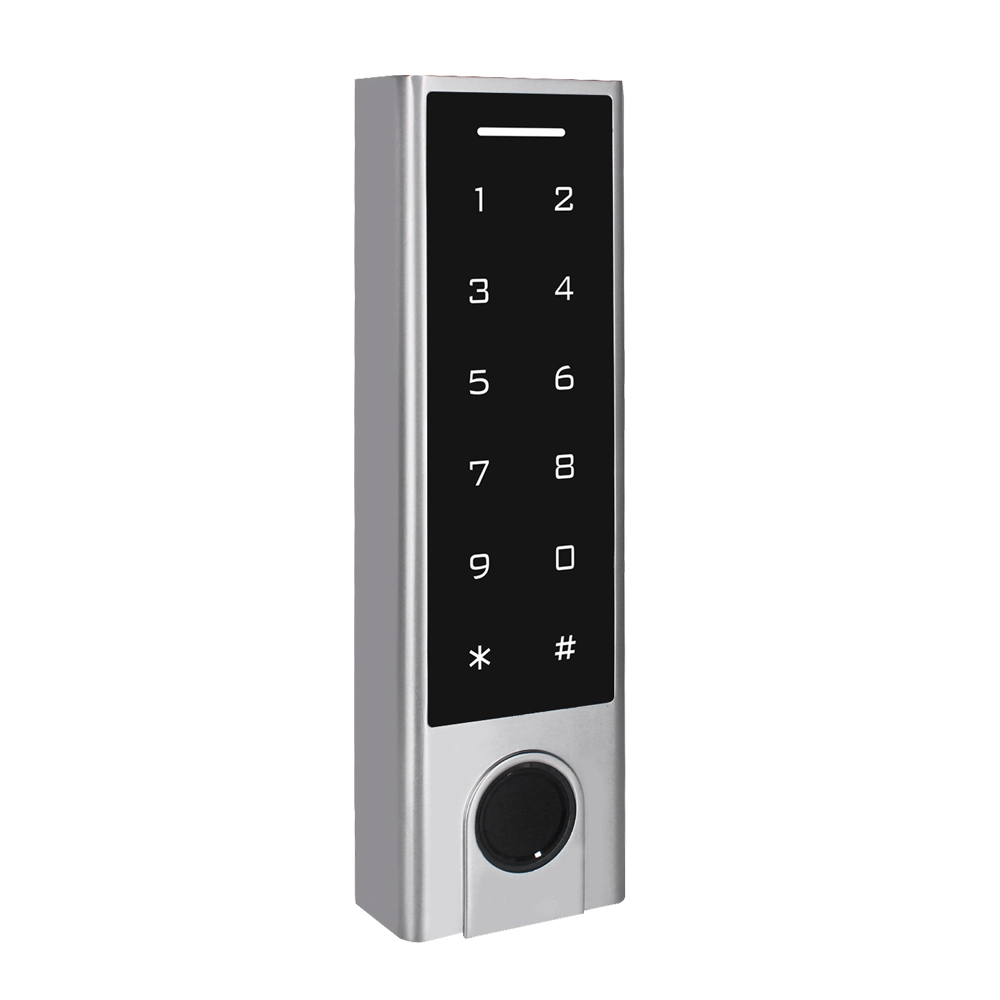

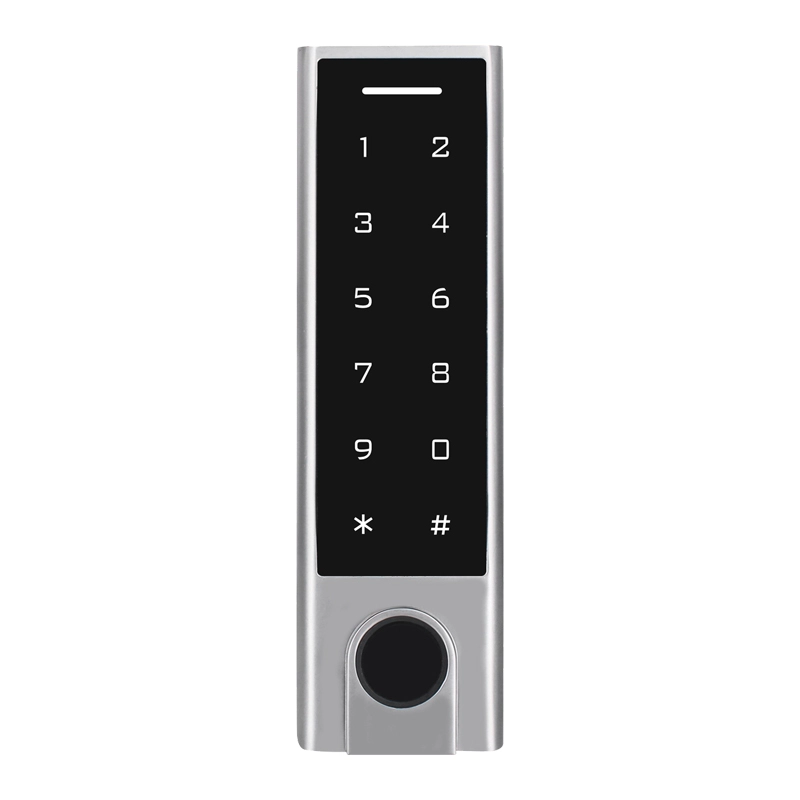

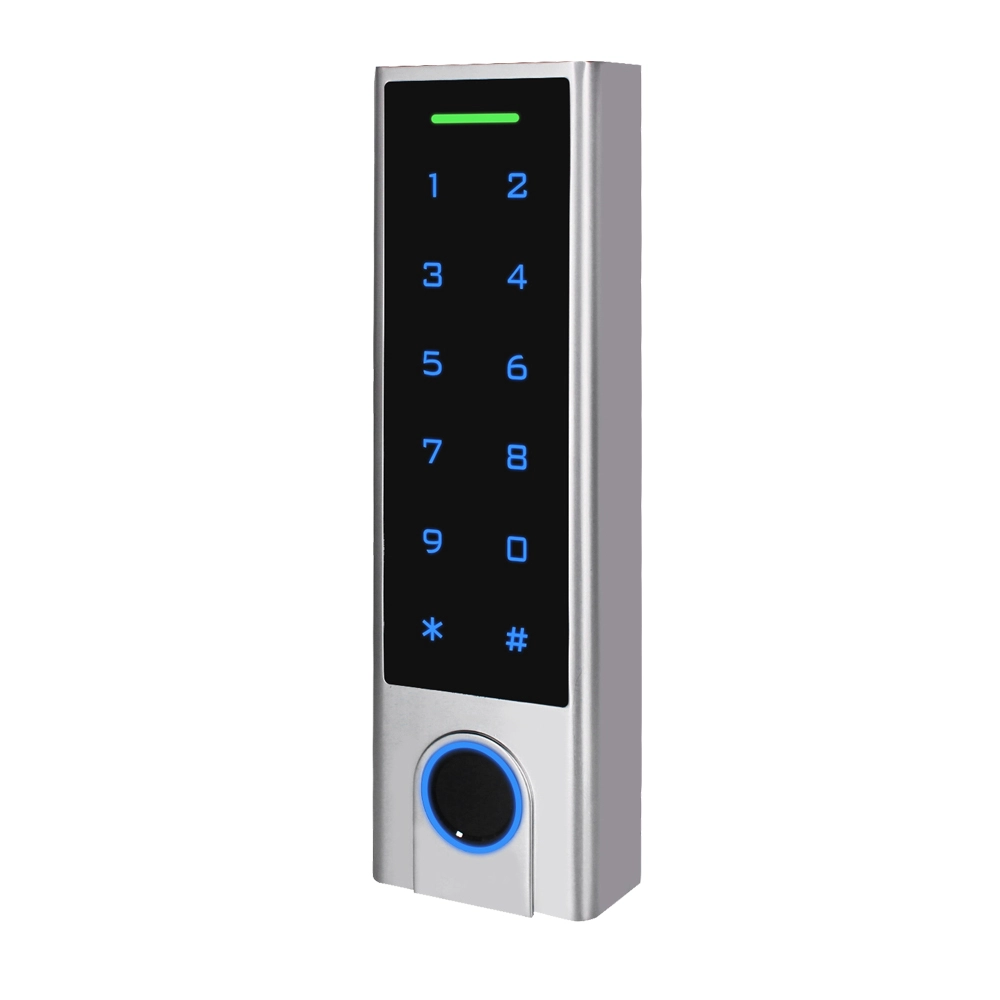

ACM-235 Smart Bluetooth fingerprint access control device with touch keypad TuyaSmart APP

  • Product Name: Bluetooth Access control
  • IP Rate:IP66 Waterproof
  • User Capacity:100 APP users (include 255 FP, Card, PIN users)
  • Card Type:125KHz EM Cards
  • Access Mode:FP, Card, Code, Multi Users
Bluetooth Access control
> Capacitive Fingerprint Sensor,touch keypad
> Waterproof, conforms to IP66
> Metal housing, anti-vandal
> Card type: EM Card or Mifare Card

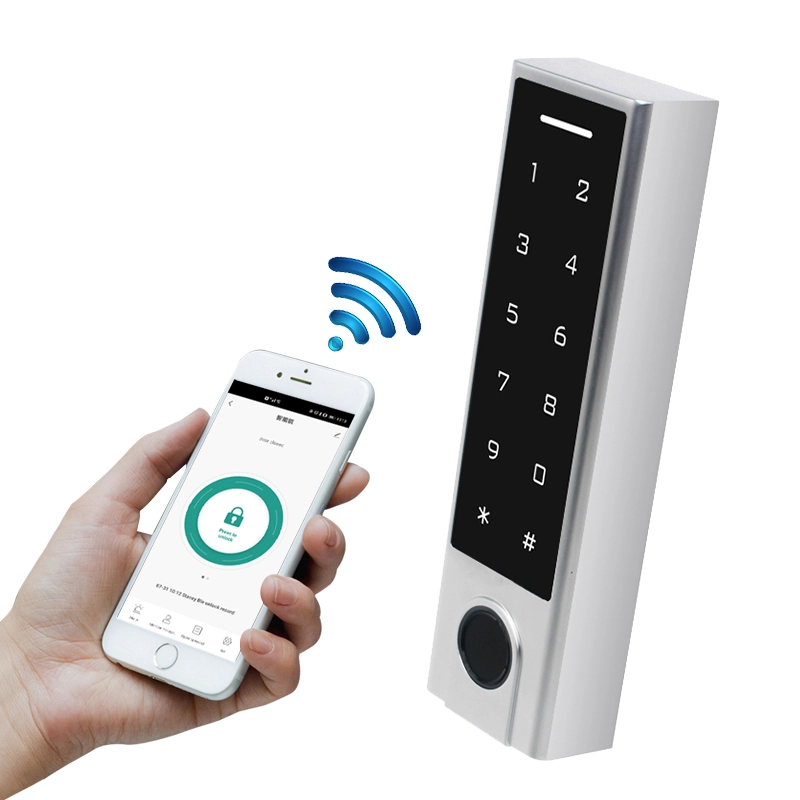

> iOS and Android available
> Add / Delete users by APP
> Support checking Opening Record
> Support Gateway
> Multiple Access Modes: Smartphone, Fingerprint, Card, PIN
Secukey 13.56MHz Touch Keypad Bluetooth RFID Access Control with TTLock APP Compatible with Mifare Card
Secukey 13.56MHz Touch Keypad Bluetooth RFID Access Control with TTLock APP Compatible with Mifare Card
Parameter

Bluetooth Access control

User Capacity
Common User
Visitor User
Panic User
Hardware User: 1000 APP User: 100 (including 255 fingerprint / card/ PIN users)
988 (100 Fingerprint Users + 888 PIN/Card Users)
10
2
PIN Length 4~6 digits
Operating Voltage
Idle Current
Active Current
12~18V DC
≤ 60mA
≤ 150mA
Proximity Card Reader
Radio Technlogy
Read Range		 EM or Mifare
125KHz/13.56MHz
2~6cm

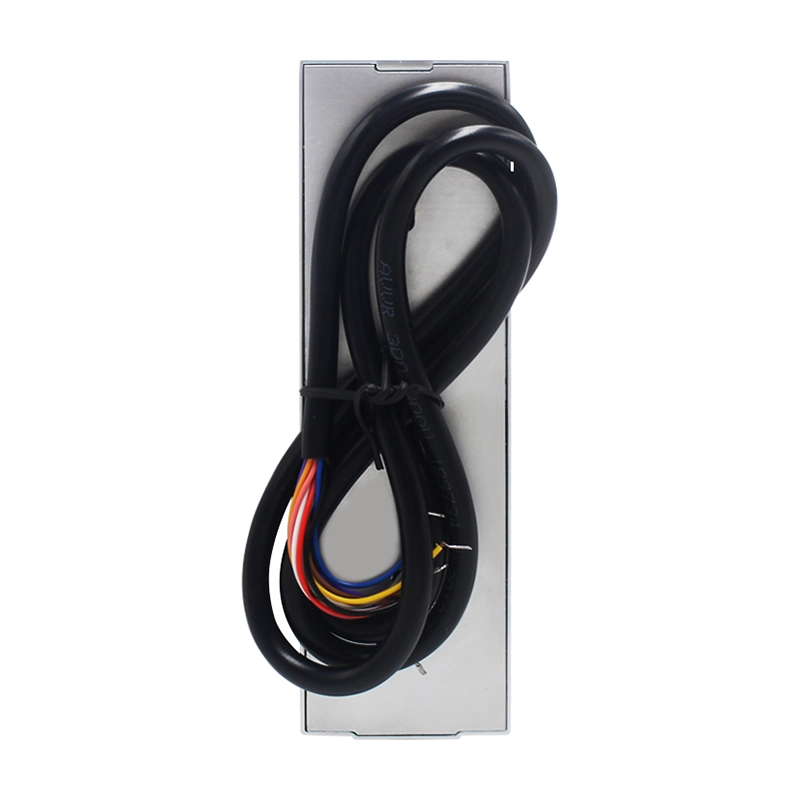

Wiring Connections Relay output, exit button, alarm, door contact, Wiegand input/output
Relay
Adjustable Relay Output Time
Lock Output Load
One (NO, NC, Common)
0~99 Seconds (5 seconds default)
2 Amp Maximum
Wiegand Interface


PIN Output

EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits)

Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits)

4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
Environment
Operating Temperature
Operating Humidity
Meets IP66
-30°C ~ 60°C (-22°F ~ 140°F)
0%RH ~ 98%RH
Physical
Color
Dimensions
Unit Weight
Shipping Weight
Zinc-Alloy
Sliver & Black
L148 x W43.5 x H22 (mm)
330g
405g
