ACM-TUYA-V4 Rfid Keypad Bluetooth Door Access Control Romotely Controlled By Smartphone APPACM-TUYA-V4 Rfid Keypad Bluetooth Door Access Control Romotely Controlled By Smartphone APPACM-TUYA-V4 Rfid Keypad Bluetooth Door Access Control Romotely Controlled By Smartphone APPACM-TUYA-V4 Rfid Keypad Bluetooth Door Access Control Romotely Controlled By Smartphone APPACM-TUYA-V4 Rfid Keypad Bluetooth Door Access Control Romotely Controlled By Smartphone APP

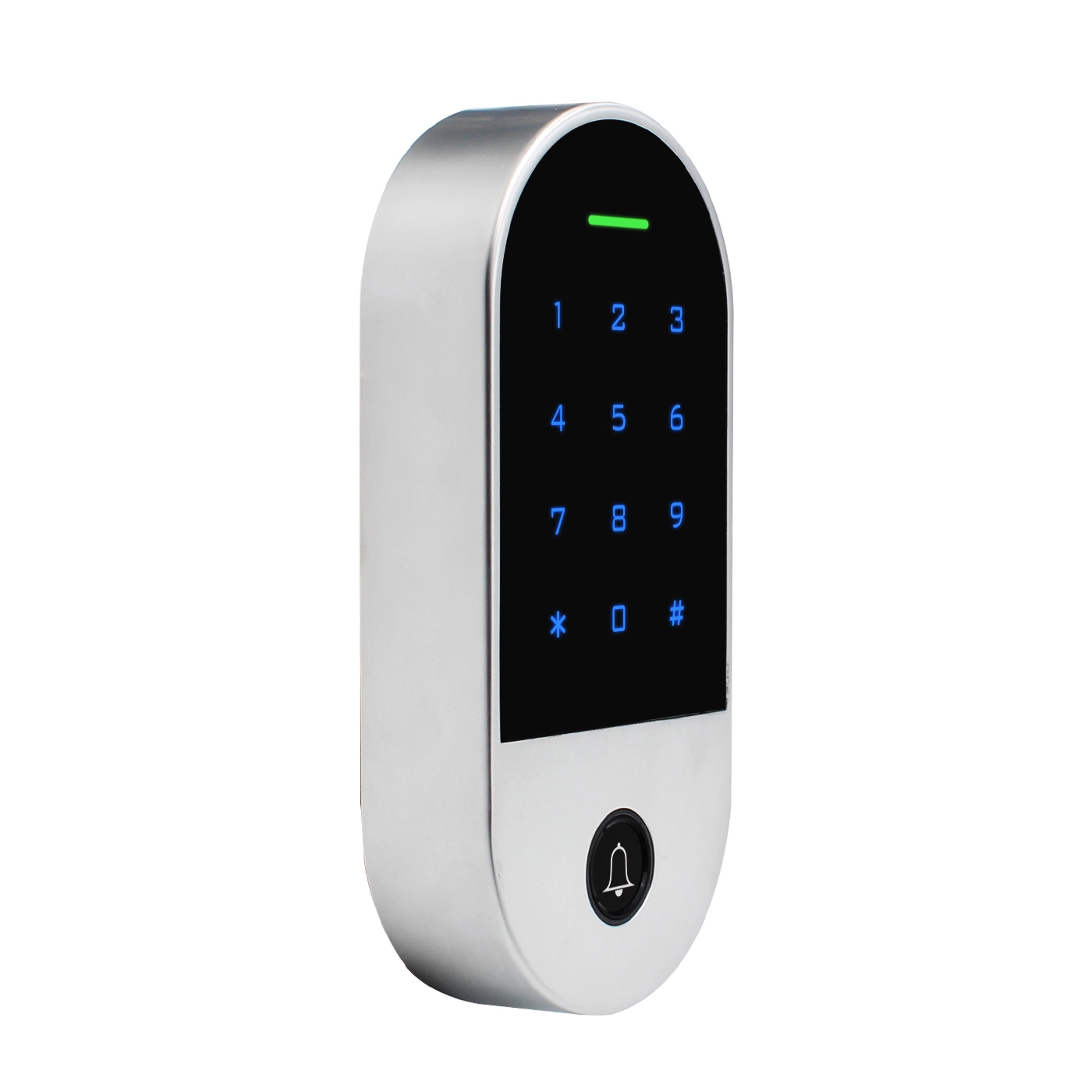

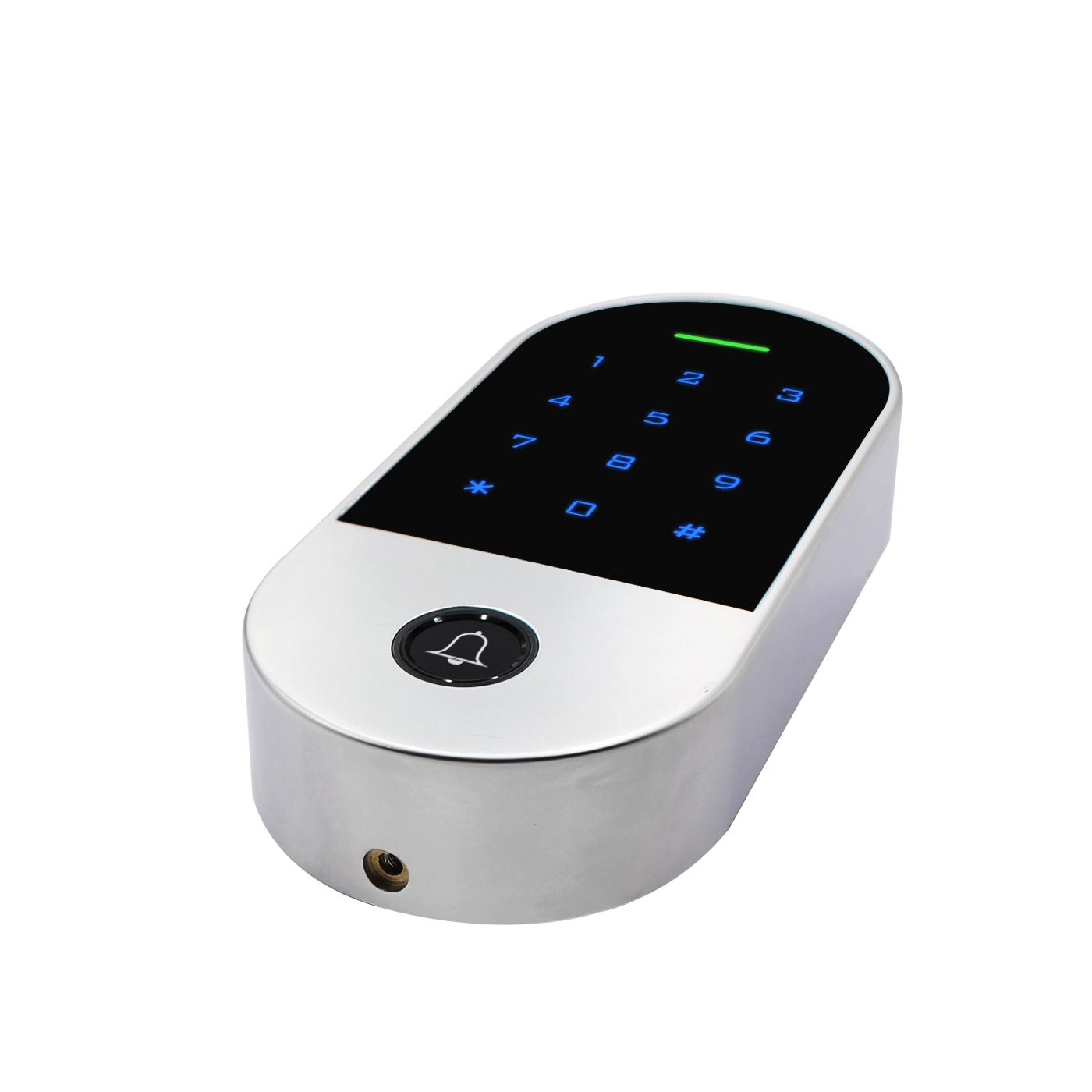

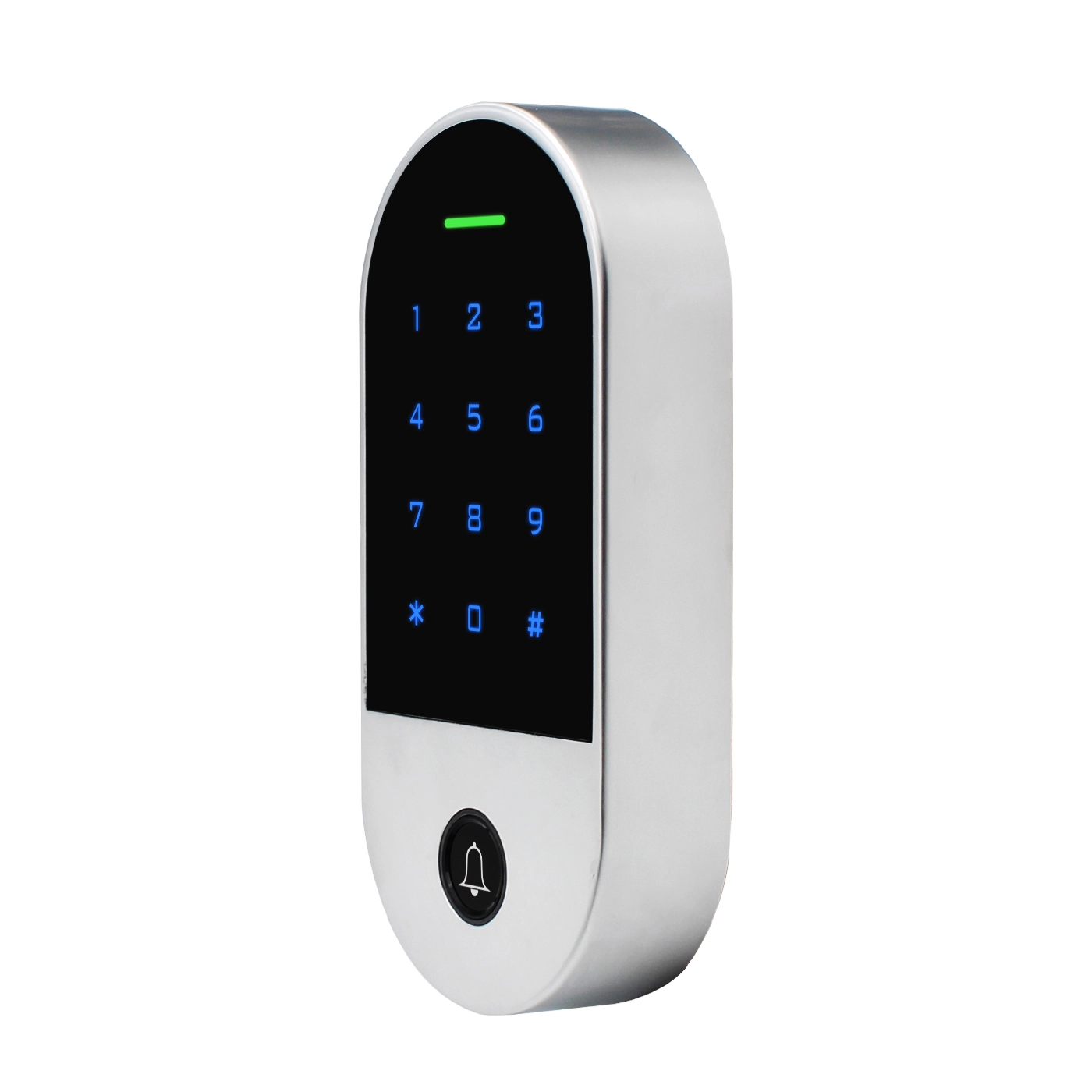

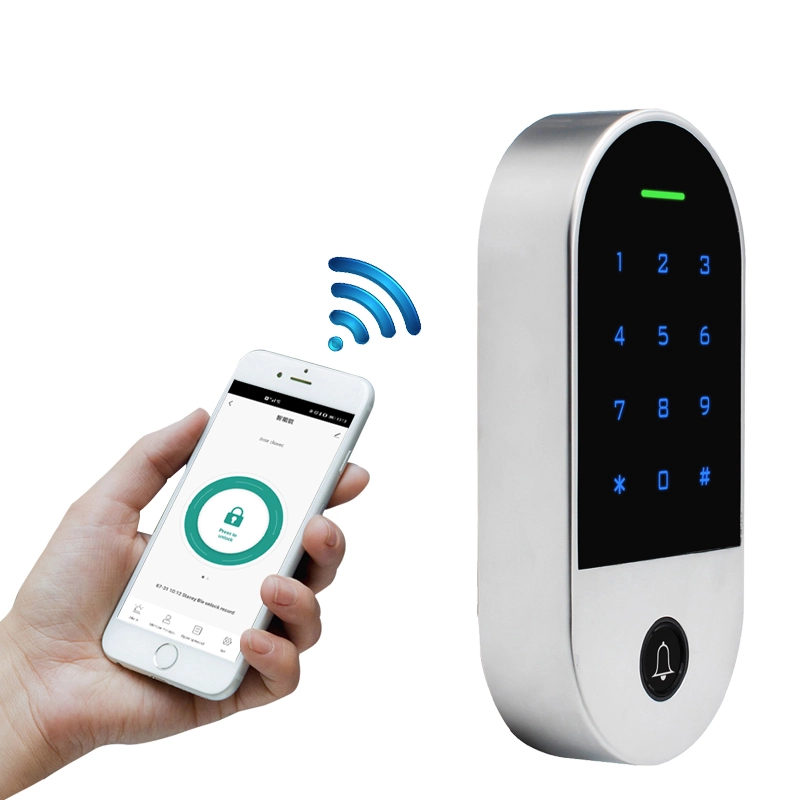

ACM-TUYA-V4 Rfid Keypad Bluetooth Door Access Control Romotely Controlled By Smartphone APP

  • Model Number:ACM-TUYA-V4
  • User Capacity:100 APP users (include 255 Card, PIN users)
  • Card Type:125KHz EM Cards
  • Access Mode:Card, PIN, Multi Users
  • Wiring Connections:Relay output, exit button, alarm, door contact
  • Multi-language:English, Spanish, French, German, Italian, Russian, Portuguese
Bluetooth Access Control
> Waterproof, conforms to IP66
> Metal housing, anti-vandal
> Card type: EM Card or Mifare Card
> iOS and Android available
> Add / Delete users by APP
> Support checking Opening Record
> Support Gateway
> Multiple Access Modes: Smartphone, Card, PIN
Secukey 13.56MHz Touch Keypad Bluetooth RFID Access Control with TTLock APP Compatible with Mifare Card

User Capacity
Common User
Visitor User
Panic User
Hardware User: 1000 APP User: 100 (including 255 card/ PIN users)
988
10
2
PIN Length 4~6 digits
Operating Voltage
Idle Current
Active Current
12~18V DC
≤ 60mA
≤ 150mA
Proximity Card Reader
Radio Technlogy
Read Range		 EM or Mifare
125KHz/13.56MHz
2~6cm
Wiring Connections Relay output, exit button, alarm, door contact, Wiegand input/output
Relay
Adjustable Relay Output Time
Lock Output Load
One (NO, NC, Common)
0~99 Seconds (5 seconds default)
2 Amp Maximum
Wiegand Interface


PIN Output

EM card version: Wiegand 26~44 bits input & output (Factory default: Wiegand 26bits)

Mifare card version:Wiegand 26~44 bits,56bits,58bits input & output (Factory default: Wiegand 34bits)

4 bits,8bits (ASCII),10 digits Virtual Number(Factory default:4bits)
Environment
Operating Temperature
Operating Humidity
Meets IP66
-40°C ~ 60°C (-40°F ~ 140°F)
0%RH ~ 98%RH
Physical
Color
Dimensions
Unit Weight
Shipping Weight
Zinc-Alloy
Sliver & Black
L148 x W43.5 x H22 (mm)
330g
405g
