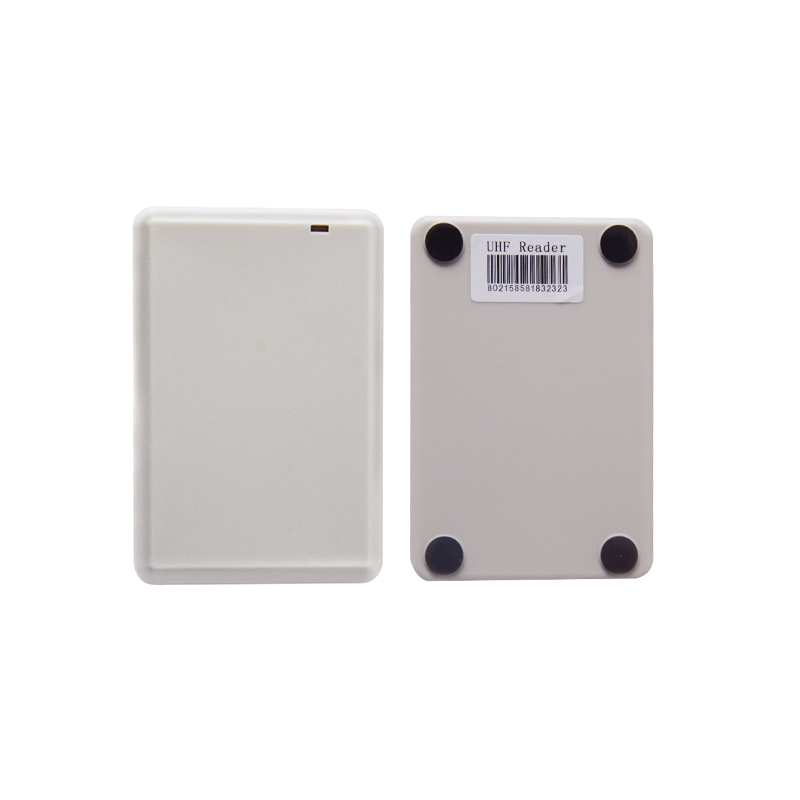

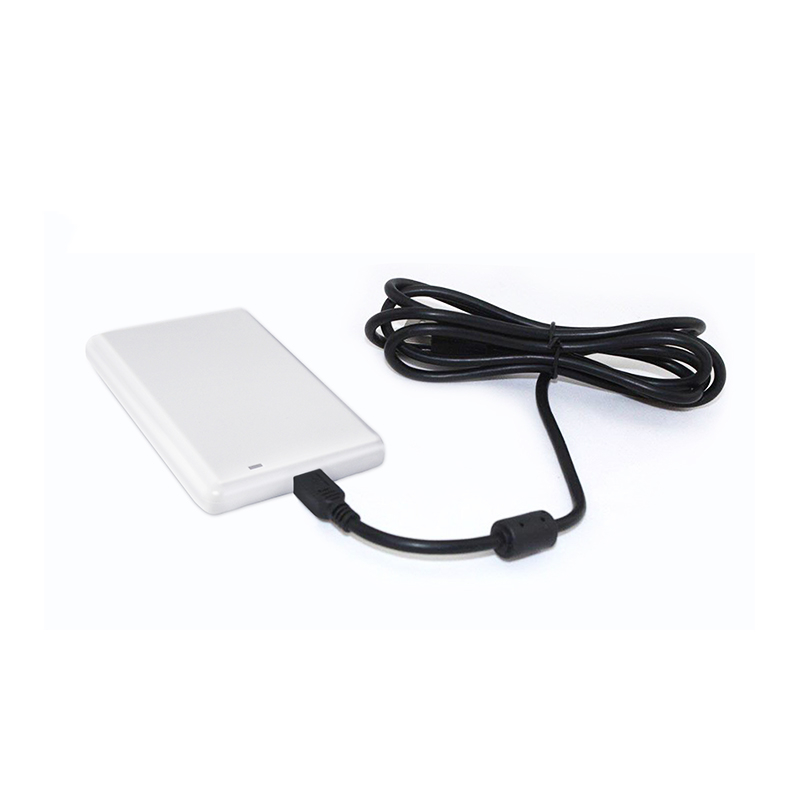

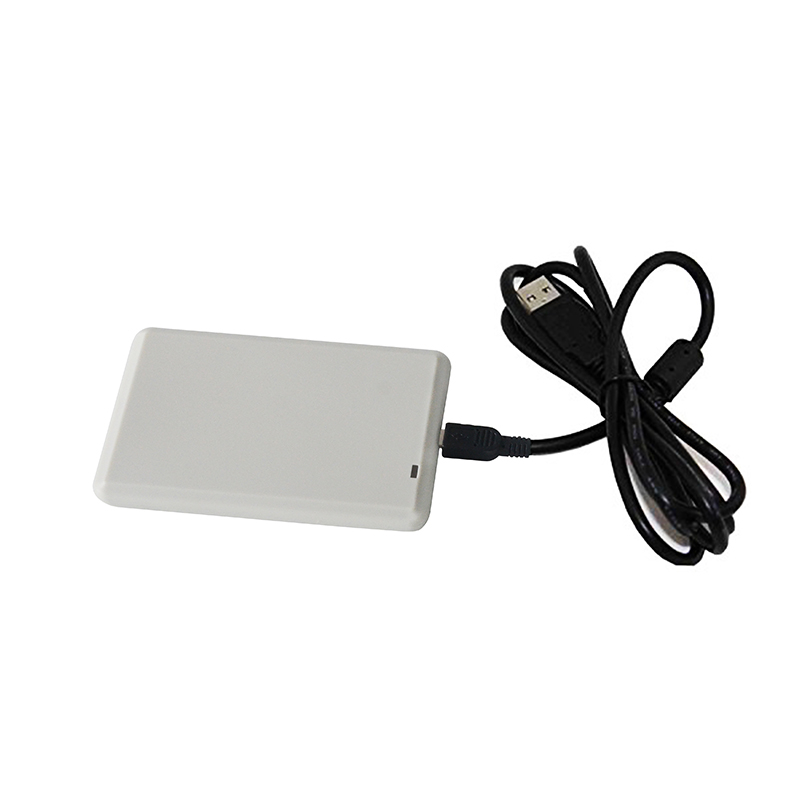

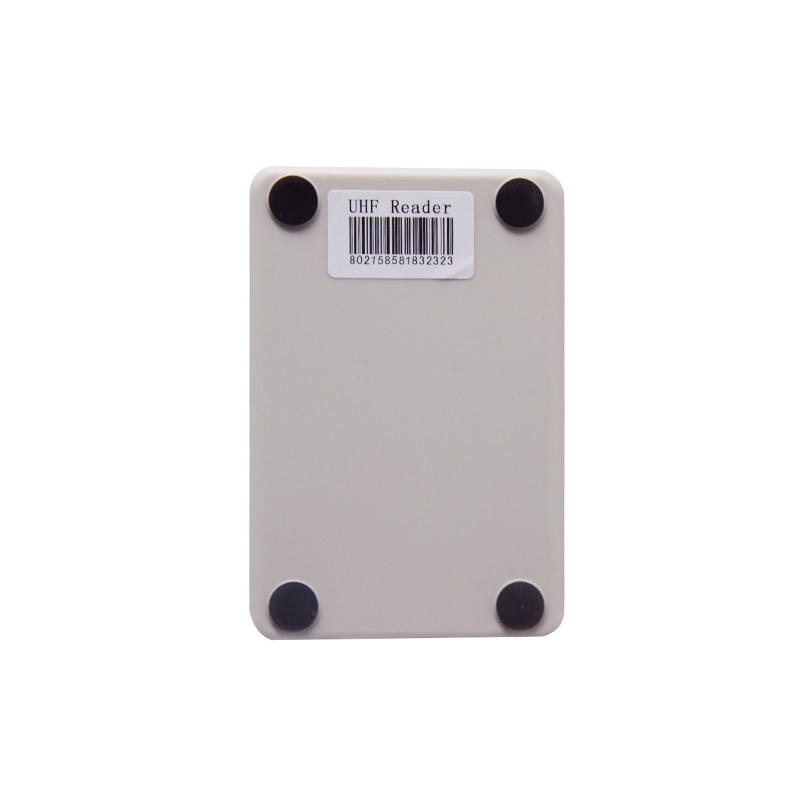

UHF RFID reader USB Desktop Reader Writer Smart Card USB Reader With Software

Product Name:UHF RFID reader USB Desktop Reader Writer
Read Distance::180 mm( read) / 80 mm ( write)
Antenna::Build-in circular polarization antenna
Output power::0~ 13 dBm ( Software adjustable)
Peripheral Equipment:LED, Buzzer
Interface::USB 1.1, cable length of 1 meter
Working model::Hopping FHSS or fixed
Anti-collision:Tag processing algorithm, multiple tags operation allowed
Power supply:DC 5V / 90 mA
Dimension ::105 mm( L) x70 mm ( W) x11mm (H)

Product Description

UHF RFID reader USB Desktop Reader Writer Smart Card USB Reader With Software

-ACM217 is high performance Multiple Protocol UHF/MF RFID Reader. It is designed upon fully self-intellectual property. Based on proprietory efficient digital signal processing algorithm, it supports fast tag read/write operation with high identification rate. It can be widely applied in many RFID application systems such as logistics, access control, attendance system, anti-counterfeit and industrial production process control system

Product Parameter	Parameter Description
Model	ACM217 UHF
Interface	USB 1.1, cable length of 1 meter
Operation Mode	Fixed Frequency or FHSS or Software Programmable
RF Power supply	DC 5V / 90 mA
Built- in Antenna Type	Built-in small round polarization Antenna
Peripheral Equipment	LED, Buzzer
Output power	0~ 13 dBm ( Software adjustable)
Protocol	ISO18000-6C & EPCglobal Class I Gen 2
Anti-collision	Tag processing algorithm, multiple tags operation allowed
Software	Demo software, SDK, Dull

Product Advantages

--Self-intellectual property;

--Support UHF EPC Gen2(ISO18000-6C),ISO18000-6B protocol tags;

--Advanced tag processing algorithm, high identification rate;

--Built-in antenna with effective distance up to 180cm;

--Low power dissipation design;

--Optional USB interface;

--Provide DLL and Demonstration Software Source code to facilitate further development;

--Provide Pocket PC/ PDA demo source code

Application

Step one : Connection reader with PC/laptop through usb interface

Step two: Open notepad or a word document, click mouse,

put card on the reader, the card number will output on the notepad or word document
