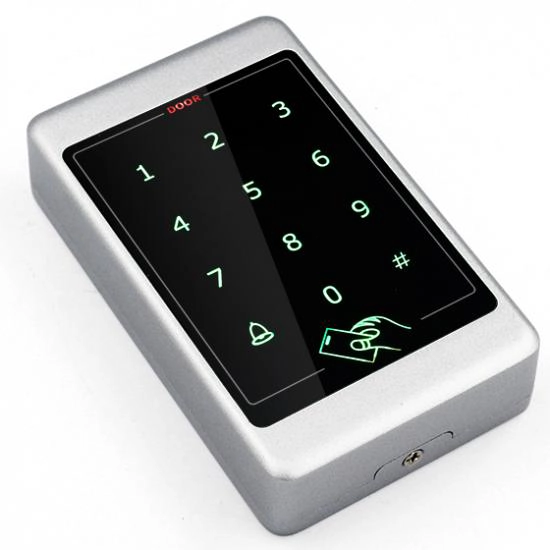

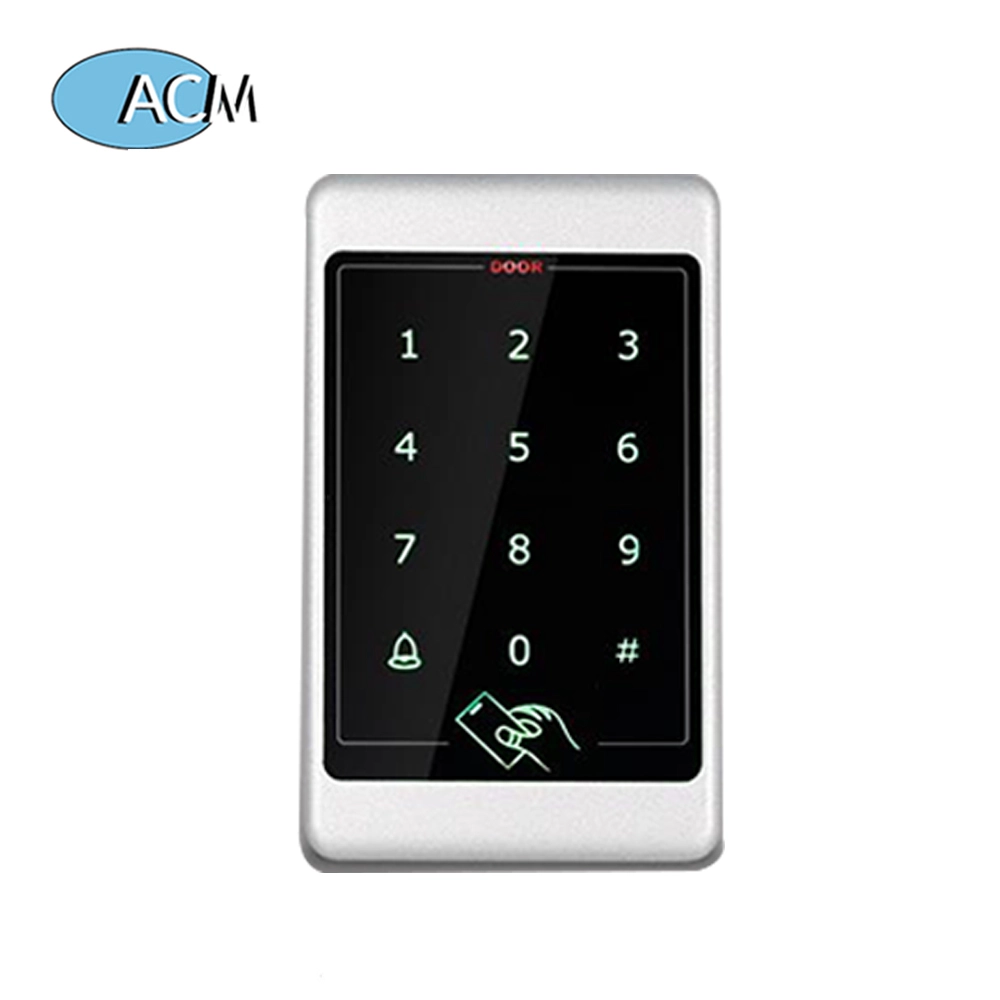

1. Specifications
1.1 Technical parameters:
|
Card type(alternative)
|
EM Card (IC card for options)
|
|
Storage
|
4000 users
|
|
Operating voltage
|
DC12V ±10%
|
|
Operating current
|
<100mA
|
|
Card reading distance
|
1~15CM
|
|
Ambient temperature
|
0℃~60℃
|
|
Relative humidity
|
20%~80%
|
|

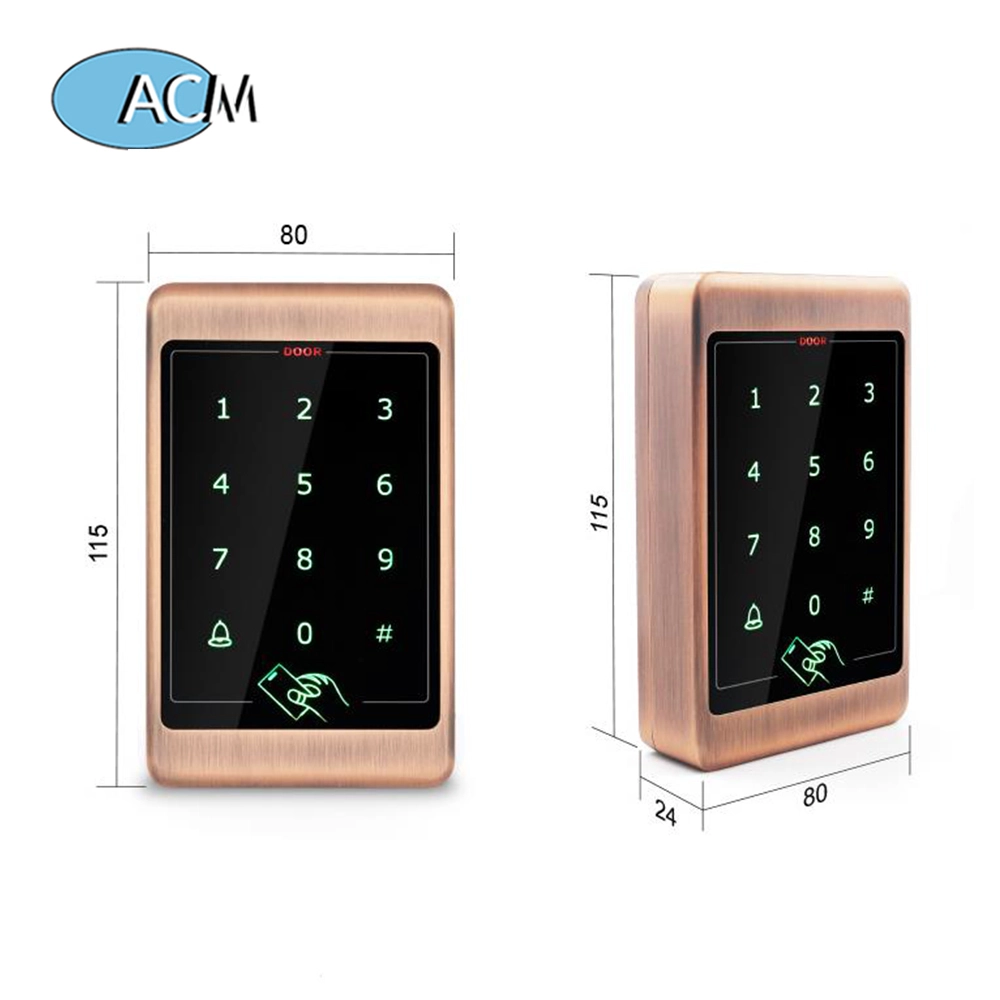

Dimensions
|
115×80×24mm
|
|
Weight
|
110g
|
1.2 Factory Default:
|
Programming Password
|
123456
|
|
Common Access Password
|
None
|
|
Relay Unlock output
|
5 Seconds
|
|
Open mode
|
Card or Access Password Access Password include Private Access Password(PIN) and Common Access Password
|
|
Security mode
|
OFF
|
|
Backlight (For options)
|
Auto
|
|
W26 port (For options)
|
input
|

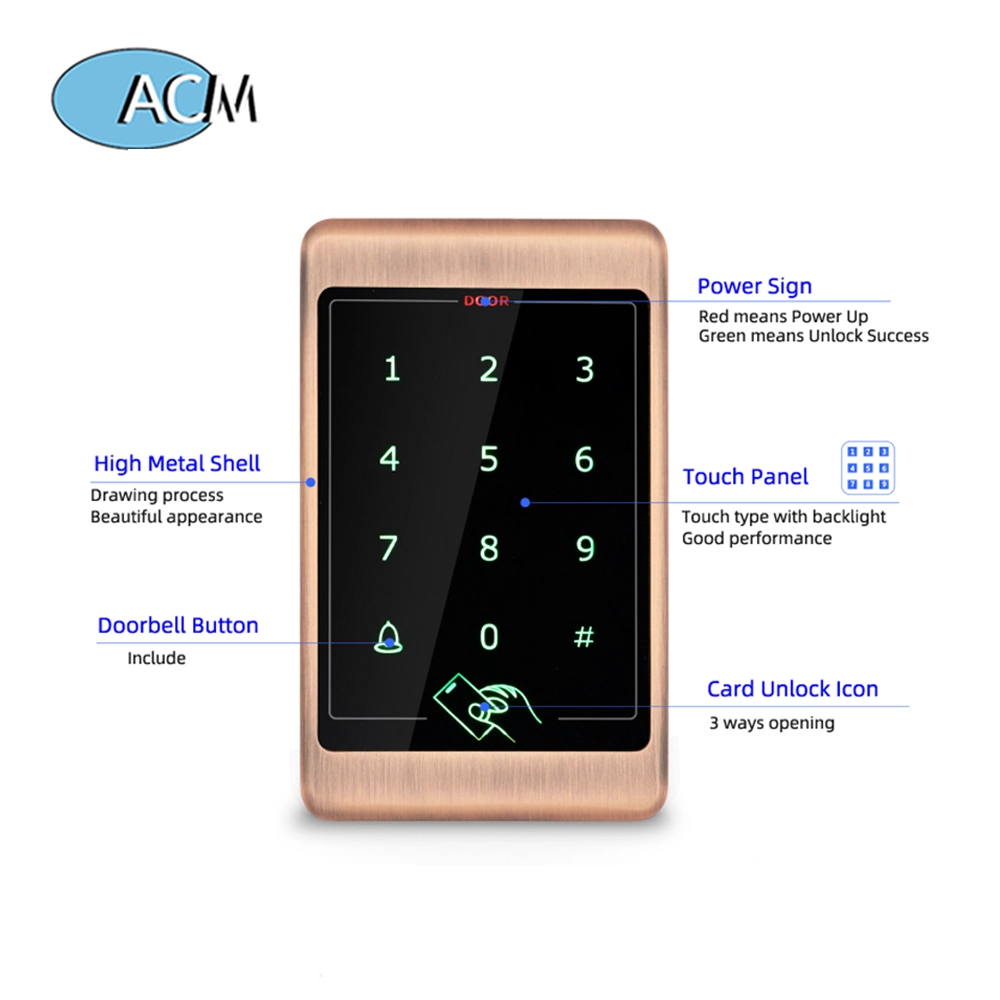

1.3 Light and Sound indicates:
Light: red and green
|
Light Description
|
indicates
|
|
Red light flash every 1 sec (Slow flash)
|
Standby state
|
|
Greenlight flash every 0.5sec (Fast flash)
|
Pending further action
|
|
Red light is always ON
|
Programming state
|
|
Greenlight is always ON within Open Time
|
Unlocking state
|
Sound: Buzz
|
Sound Description
|
Indicates
|
|
1 short buzz
|
Valid input
|
|
3 short buzz
|
Invalid input
|
|
1 long buzz
|
Programming success
|
|
Continuous long buzz
|
Restoring factory programming passwords
|
2. Installations Guide
|
Mark
|
Colour
|
Function
|
|
+12V
|
Red
|
Power+
|
|
GND
|
Black
|
Power-
|
|
PUSH
|
BLUE
|
Low-level output
|
|
OPEN
|
Yellow
|
Door Release
|
|
BEL+
|
Grey
|
BELL+
|
|
BEL-
|
Purple
|
BELL-
|
|
DATA
|
Green
|
WG DATAO
|
|
DATA1
|
White
|
WG DATA1
|
|
NC
|
Brown
|
Relay NC output
|
|
COM
|
Orange
|
Relay Com output
|
|
No
|
Pink
|
Relay NO output
|

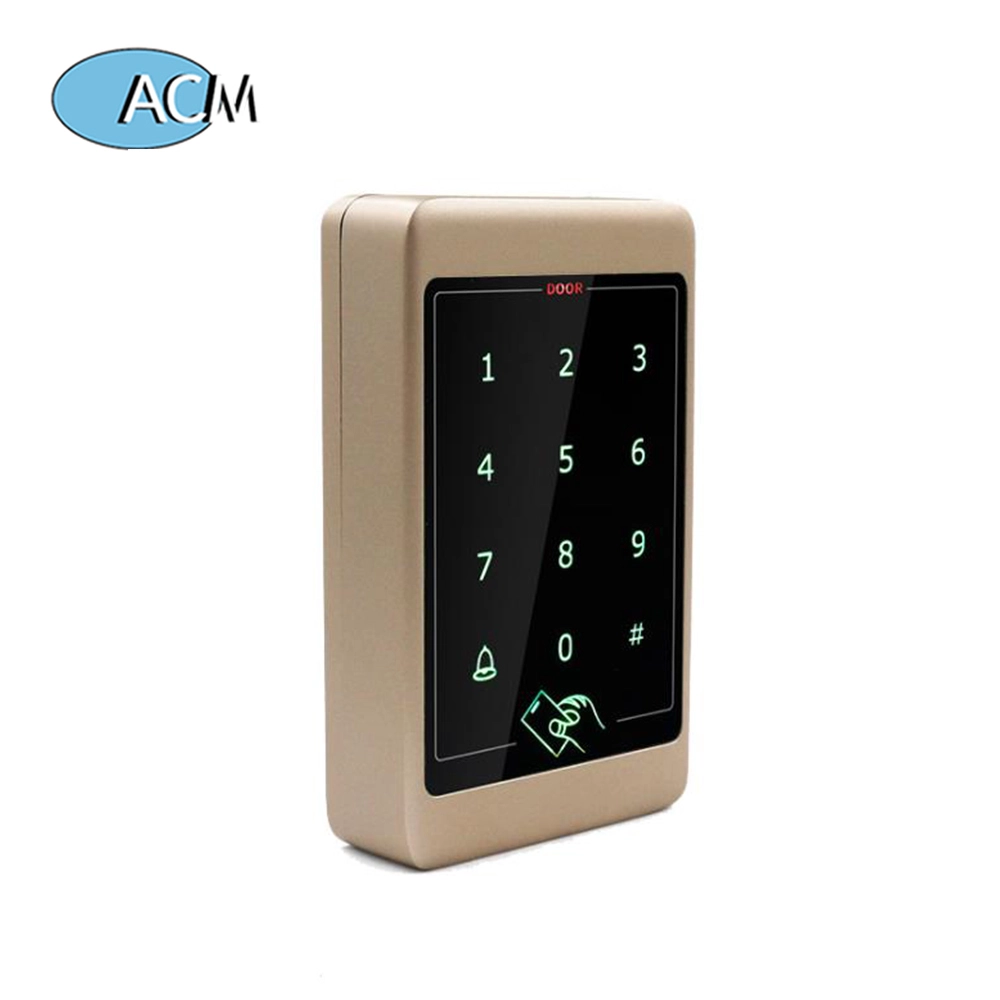

1. High-strength metal shell, brushed surface, beautiful appearance
2. Original imported smart chip
3. Fully sealed and potted with PC glue, sealing grade IP68
