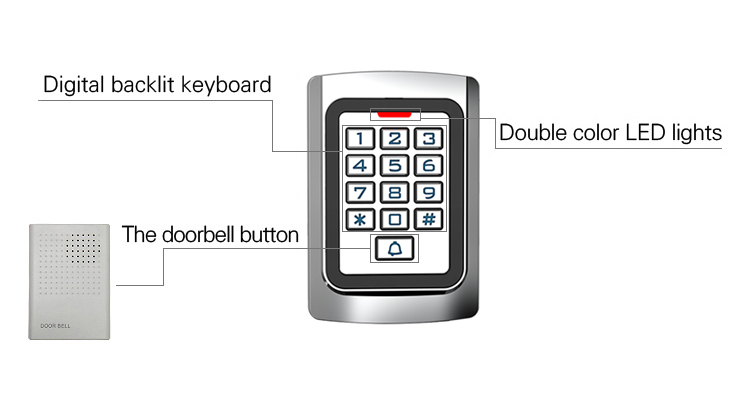

ACM Garage Keyless Entry Pad,Access Control Keypad,Wiegand 26 PIN Code RFID ,IP68 Waterproof,2000 Users
|
Model No.
|
K10
|
|
Item Name
|
Metal Standalone Access control
|
|

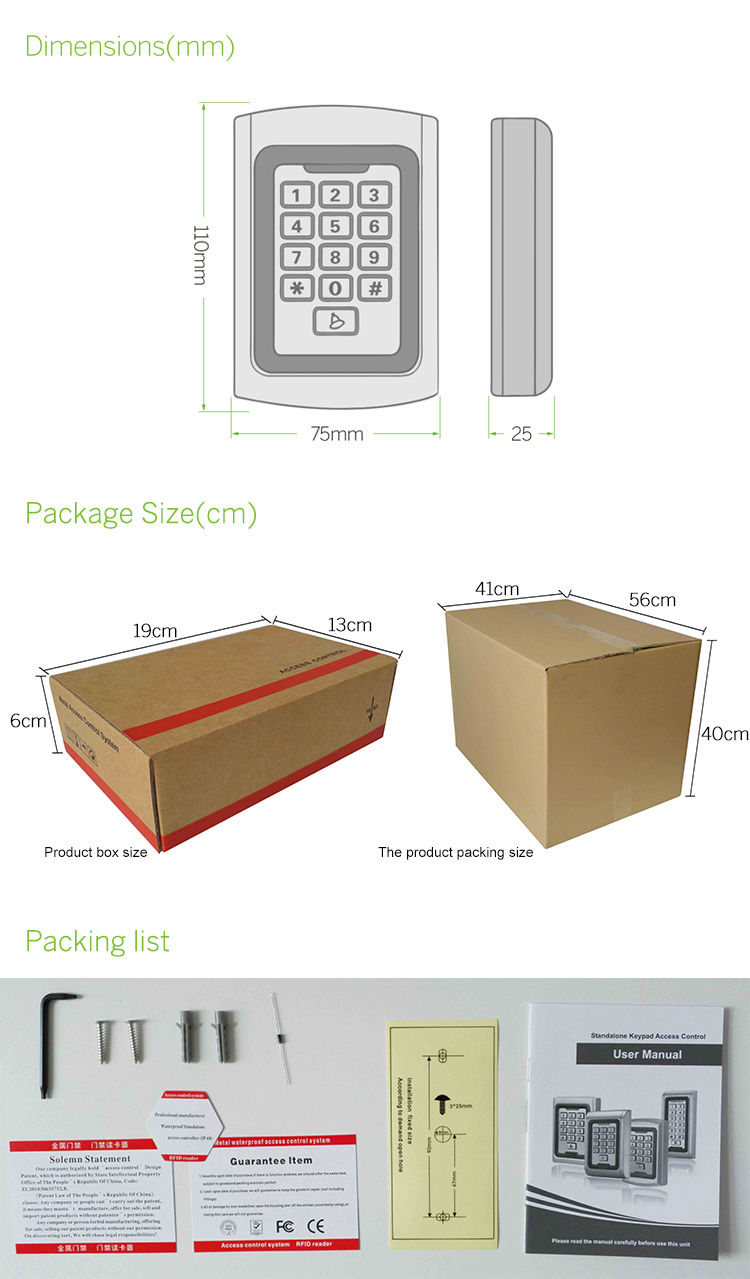

Dimension
|
110*75*25mm
|
|
Card type
|
EM 125KHz
|
|
Operating Voltage
|
DC 12V±10%
|
|
User Capacity
|
2000
|
|
Card Reading Distance
|
3-6 cm
|
|
Active Current
|
<60mA
|
|
Idle Current
|
25±5 mA
|
|
Lock Output Load
|
Max 3A
|
|
Alarm Output Load
|
Max 20A
|
|
Operating Temperature
|
-45℃~60℃
|
|
Operating Humidity
|
10%- 90% RH
|
|
Waterproof
|
Conforms to IP68
|
|
Adjustable Door Relay time
|
0 -99 seconds
|
|
Adjustable Alarm Time
|
0- 3 minutes
|
|

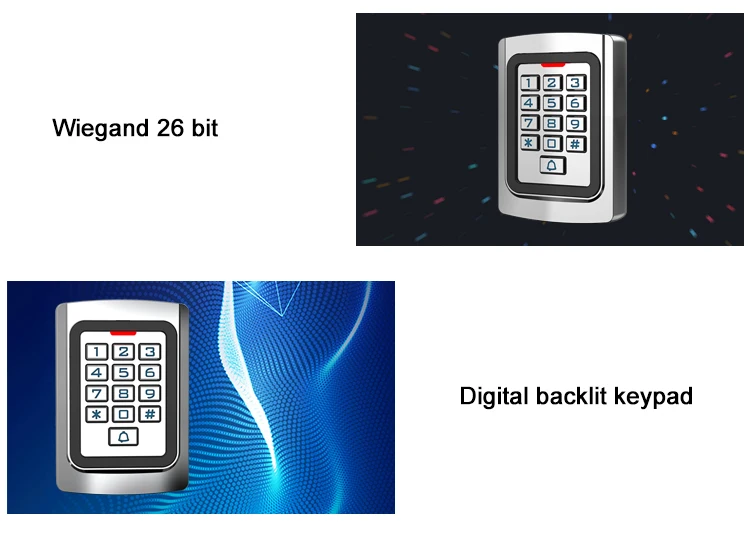

Wiegand Interface
|
Wiegand 26 bit
|
|
Wiring Connections
|
Electric Lock, Exit Button, External Alarm,External reader
|
