ACM-Y280D Fail safe 12V/24VDC LED timer 560kg/1200lbs double door Magnetic LockACM-Y280D Fail safe 12V/24VDC LED timer 560kg/1200lbs double door Magnetic LockACM-Y280D Fail safe 12V/24VDC LED timer 560kg/1200lbs double door Magnetic LockACM-Y280D Fail safe 12V/24VDC LED timer 560kg/1200lbs double door Magnetic Lock

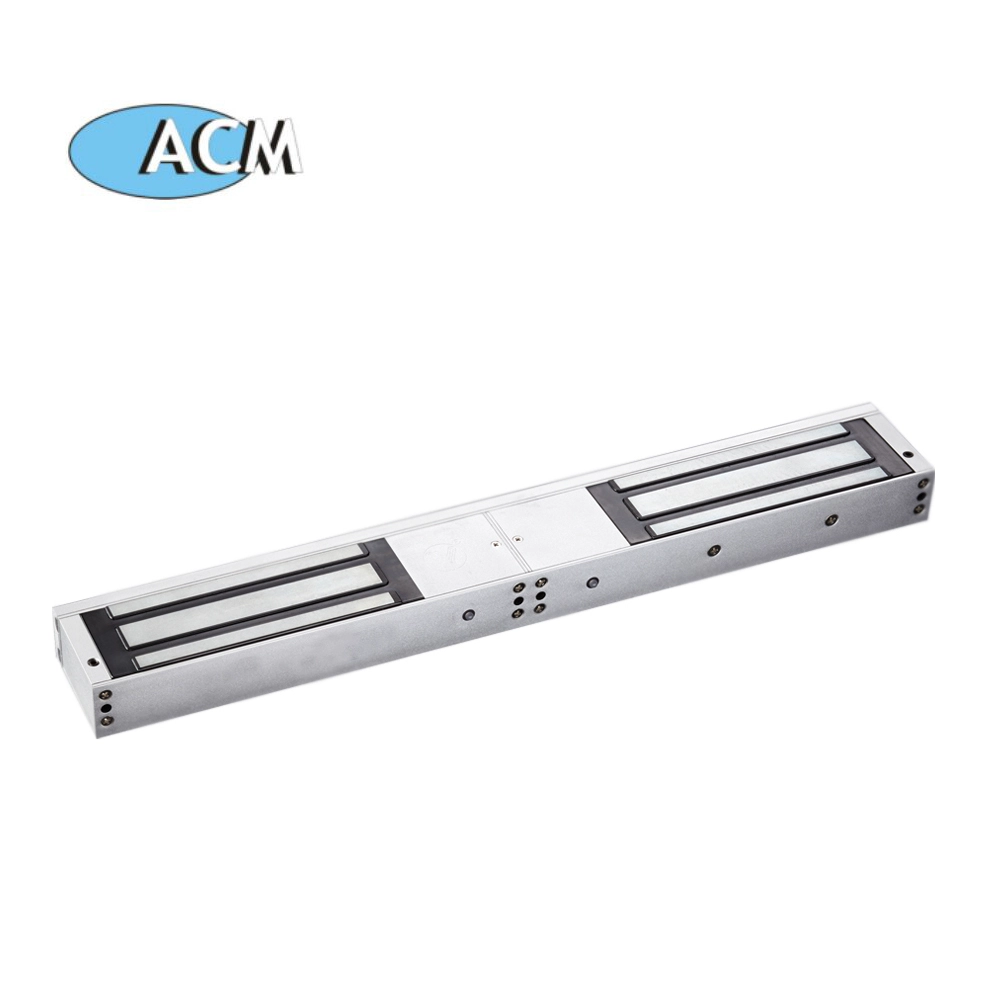

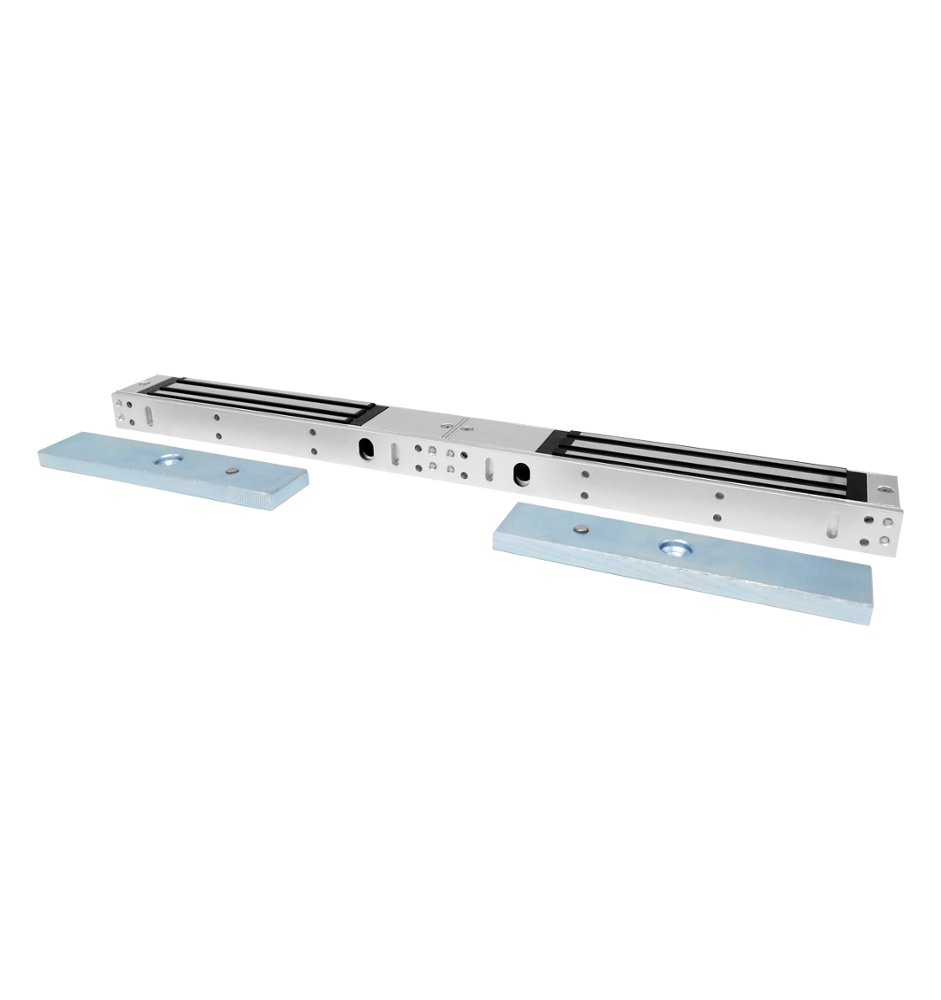

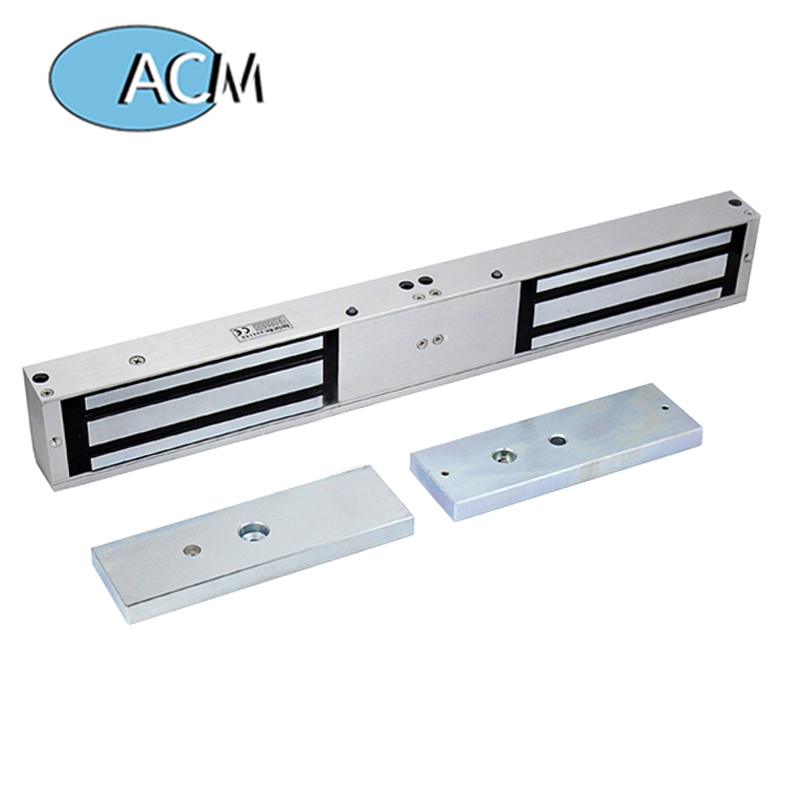

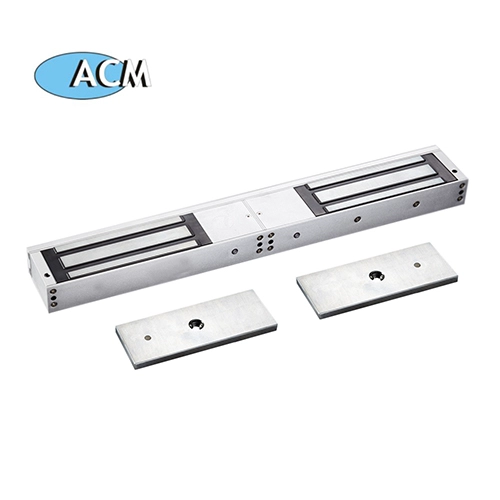

ACM-Y280D Fail safe 12V/24VDC LED timer 560kg/1200lbs double door Magnetic Lock

  • Model : ACM-Y280D
  • Lock dimensions: 560Lx81.6Wx46H(mm)
  • Armature plate dimensions: 180Lx38Wx11H(mm)
  • Holding force: 280kgx2(600Lbsx2)
  • Material: Zinc
  • Dual voltage: 12/24V DC
  • Current: 12V/500mA*2 or 24V/250mA*2
  • Suitable for: wooden, glass, metal and fire-resistant door
  • Operating Temp: -10~+55℃(14-131F)
  • Weight: 5kg
Product Description


Fail safe 12V/24VDC LED timer 560kg/1200lbs double door Magnetic Lock


600lbs double door Magnetic Lock is for glass door, wooden door, fireproof door, sliding door and metal door. Dual Voltage 12 or 24 VDC is optional.

Product Parameter
Parameter Description
Lock Size :
560Lx81.6Wx46H(mm)
Armature plate:
180Lx38Wx11H(mm)
Holding Force :
280kgx2(600Lbsx2)
Input Voltage :
12/24VDC Dual Voltage
Current
12V/500mA*2 or 24V/250mA*2
Suitable for door:
Wooden door , Glass door ,Metal door , Fireproof door
Surface Temp
≤+20℃
Feature:
Fail Safe, Timer delay, feedback signal, 12V/24VDC dual voltage
Operating Temp
-10~+55℃(14-131F)
Armature Plate Finish
Zinc
Weight
5kg
Product Advanatge

* Collinear Load Test 280kgx2,600poundsx2.
* Dual Voltage 12 or 24 VDC(optional).
* The Standard Voltage is 12VDC when Finished.
* MOV Provides Reverse Current Protection.
* Anti-Residual Magnetism Designed.
* High Strength Material,Anodized Aluminum Housing.
* Design without Mechanical Failure.
* Increase the holding Force,Dual Insulative Housing.
* CE Certificate by European Union,MA Certificate by China Public Security Office.


Detailed Images , OEM/ODM available

Our lock is with LED light to show the working statue , light is green when it locked , Red when unlocked . The light statue can be changed .
ACM-Y280D is with signal output . The PCB board can be customized . We can make the lock with 12v&24v dual voltage and with 7 wire connection . Following photo is the PCB board optional .If you want to customize the lock ,please tell us your detail request , we will send your detail quotation after knowing all your requirement .

Quality Warranty

- Warranty Service will be honored if the damage is not caused by human, ACM Goldbridge provides 2 years warranty for relative products.
- On the contrary, ACM Goldbridge will cahrge extra if repair.
- More information, please browse our service center.

Instalation Diagram
Packing & Delivery

Shipping Way
We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR
You also can choose your own shipping forwarder.

Packaging
Magnetic Lock packaging: 1unit per box, 5pcs per carton,
Carton size : 35*30*16cm , Gross Weight :25kg.




ACM-Y280N

Backplate magnetic lock (280kgs/600lbs) Suitable For: Wooden Door, Glass Door, Metal Door, Fire| Proof Door



ACM-Y180

Surface mounted (180kg/300lbs) magnetic lock 2Bolts Fail safe.Suitable For: Wooden Door, Glass Door, Metal Door, Fire Proof Door.



ACM-Y280

280kg(600lbs) Single Door magnetic Lock Suitable For: Wooden Door, Glass Door, Metal Door, Fire Proof Door.




ACM-Y280-L

L Bracket for 280kg/350kg Magnetic Lock



ACM-Y180ZL

ZL Bracket for 180kg/300lbs Magnetic Lock



ACM-Y280-ZL

ZL Bracket for 280Kg/350Kg Magnetic Lock

Our Service

1, Any inquires will be replied within 24 hours
2, Professional manufacturer and supplier, Welcome to visit our website and our factory
3, OEM/ODM Available
4, High quality, fashin desing, reasonable & competitive price, fast lead time
5, After-sale Service :
1), All products will have been strictly quality checked in house before packing
2), All products will be well packed before shipping
3), All our products have 2-3 year warranty if the damage is not caused by human
6, Faster delivery : Around 1~ 5 days for sample order, 7~30 days for bulk order
7, Payment : You can pay for the order via : T/T, Western Union, Paypal.
8, Shipping: We have strong cooperation with DHL, FEDEX, TNT, UPS, EMS, Forwarder by SEA and By AIR, You also can choose your own shipping forwarder.

FAQ

Q: 1. How can I place an order?
A: Please list your requirement to us via email. Then we will send the offer to you at earliest time,after order confirmation, we will arrange production ASAP.

Q: 2.What about the payment and shipment?
A: Trade Assurance and T/T ,Paypal, Western Union.
Clients can choose by sea, air or express(DHL, FedEx, TNT UPS etc.)

Q: 3. How can i get a sample to check your quality?
A:We could provide free sample to you, and the freight cost payed by you.

Q:4. How long can I expect to get the samples?
A: It depends on the quantity. Normally 3-7 days for 5000pcs and 7-15 days for 100,000pcs

Q:5. Can your products be customized?
A: Almost all of your products are customized ,including the materia, size, thickness and printing. OEM orders are highly welcome.

Q:6.Are you a trading company or factory?
We are the one of the biggest manufacturer of RFID cards/NFC tags/RFID keybod /RFID wristband，rfid reader and access control products in China more than 20 years.

Tag: smart lock ,Door lock ,electromagnetic lock ,magnetic door lock ,electric bolt lock ,security lock ,Feedback signal ,Time-delay
